HNGX 0906ANEN-FF:8215

HNGX 0906ANEN-FF:8215

SKU DOR6755670
by Dormer Pramet
Primary Use: Possible Use:

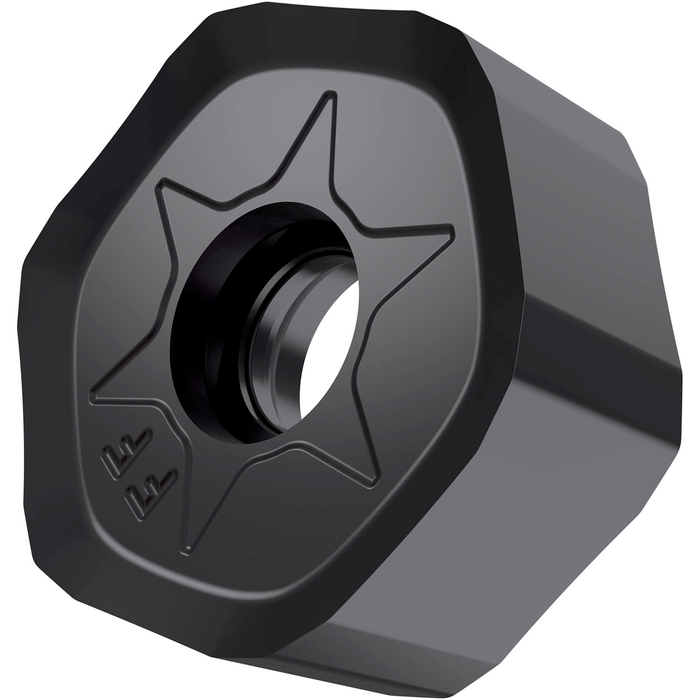

Double-sided milling insert HNGX 0906, hectagonal for a maximum depth of cut of .1969", with " corner radius, an indexing accuracy according to ISO-tolerance class-G and FF geometry with rounded cutting edges, 8215 PVD coated fine grained WC-Co carbide for machining with face mills SHN09C

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$37.07 - $37.07
$37.07
$37.07 - $37.07
$37.07
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

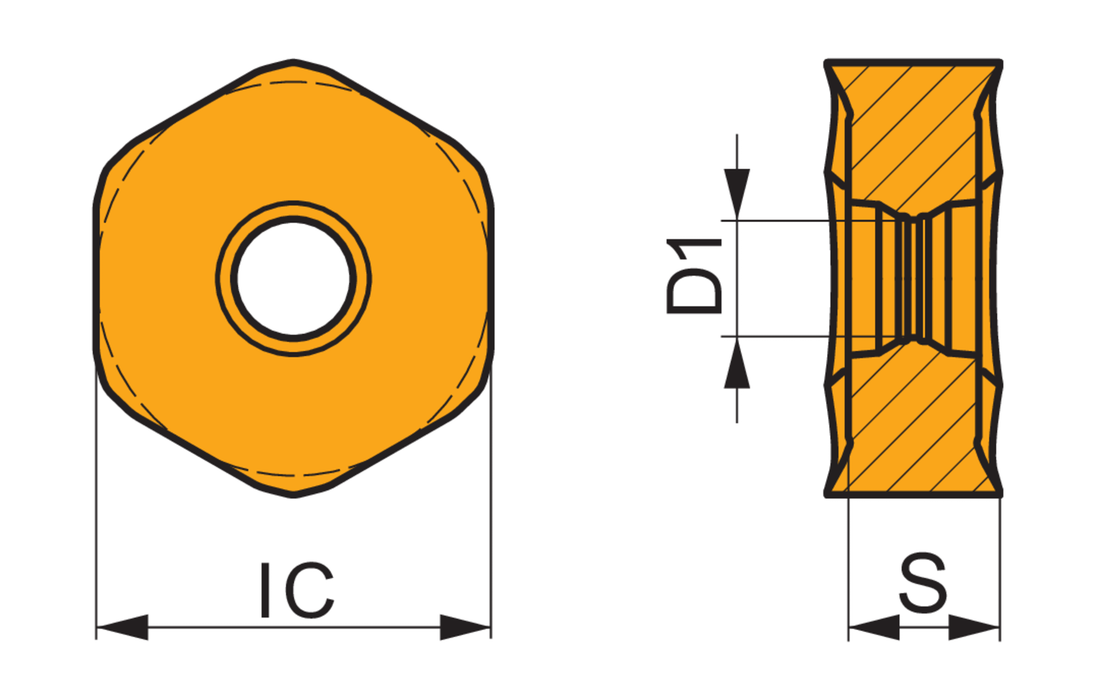

Max. Depth of Cut: 0.197

Insert Design: HNGX

Insert Shape Code: H - hexagonal

Insert Thickness: 0.25

Inscribed Circle Diameter: 0.65

Chip Breaker: FF

Grade: 8215

EDP: 6755670

EAN: 3603602910363

MFG Part Number: 6755670
