SNMA 866:T5315

SNMA 866:T5315

SKU DOR6755693
by Dormer Pramet
Primary Use: Possible Use:

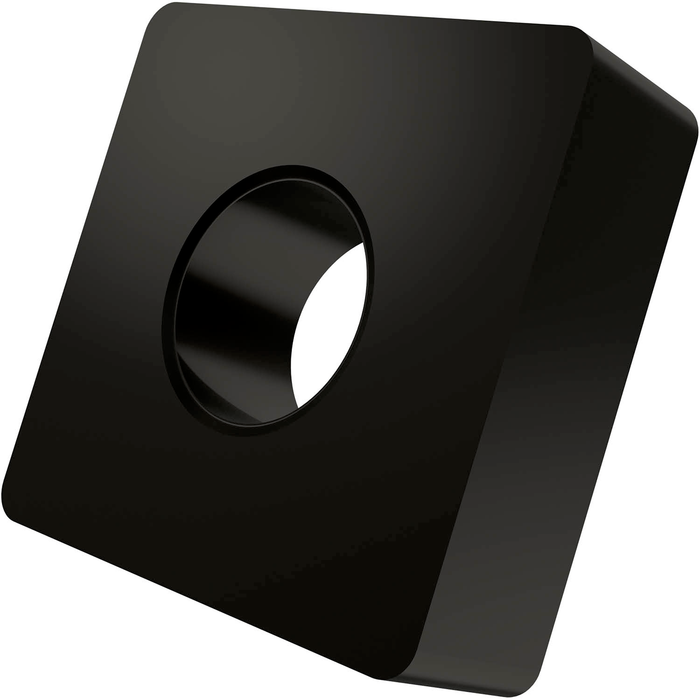

Double-sided negative turning insert, square with inscribed circle diameter of 1", 3/8" thick, 3/32" nose radius and indexing accuracy according to ISO-tolerance class- M, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10-K25, for medium to extra heavy machining of cast-irons

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$60.00 - $60.00
$60.00
$60.00 - $60.00
$60.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.472

Insert Design: SNMA

Insert Shape Code: S - square

Insert Thickness: 0.375

Inscribed Circle Diameter: 1.0

Chip Breaker: No chipbreaker

Grade: T5315

Corner Radius - in: 0.094

Corner Radius - mm: 2.4

EDP: 6755693

EAN: 3603602910592

MFG Part Number: 6755693
