VBMT 332-RM:T5315

VBMT 332-RM:T5315

SKU DOR6755713
by Dormer Pramet
Primary Use: Possible Use:

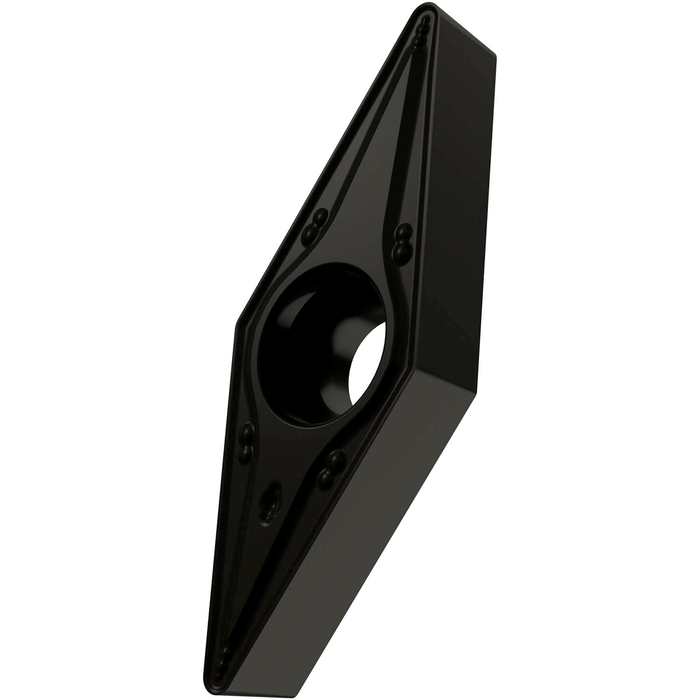

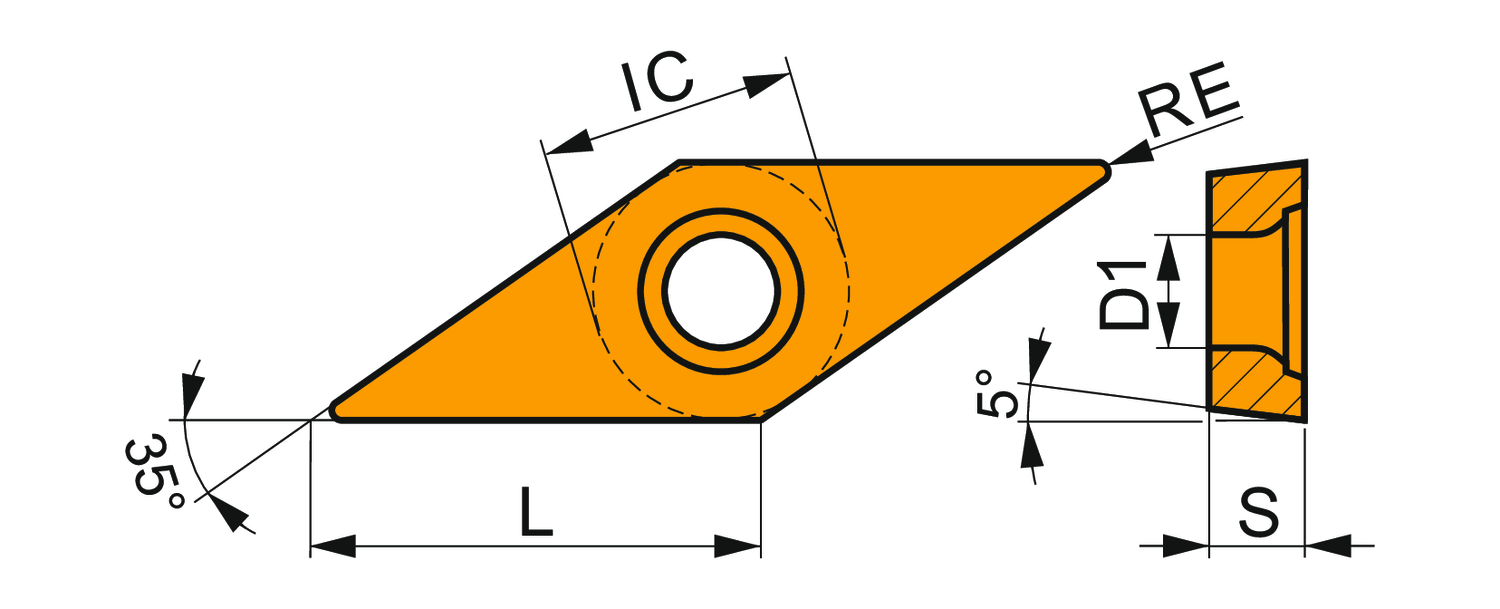

Single-sided positive turning insert, 35° rhomboid with 5° clearance, inscribed circle diameter of 3/8", 3/16" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker RM, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10-K25, for fine to heavy machining of cast-irons

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$19.50 - $19.50
$19.50
$19.50 - $19.50
$19.50
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.142

Insert Design: VBMT

Insert Shape Code: V - rhombic 35° included angle

Insert Shape Code: gid://shopify/Metaobject/145756749886

Insert Thickness: 0.187

Steel and Cast Steel: Possible use

Cast Iron: Primary use

Hardened Material: Possible use

Inscribed Circle Diameter: 0.375

Chip Breaker: RM

Grade: T5315

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 6755713

EAN: 3603602910790

MFG Part Number: 6755713
