WNMG 333W-M:T5315

WNMG 333W-M:T5315

SKU DOR6755737
by Dormer Pramet
Possible Use:

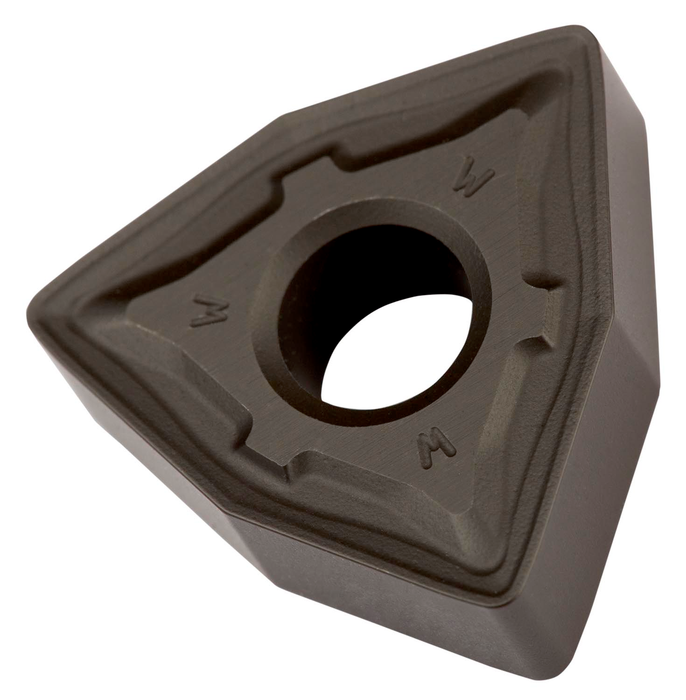

Double-sided negative turning insert, 80° trigon with inscribed circle diameter of 3/8", 3/16" thick, 3/64" nose radius, indexing accuracy according to ISO-tolerance class- M, , chip-breaker M with WIPER edge design, in grade T5315, a MT-CVD coated WC-Co carbide, for fine to heavy machining

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$12.64 - $12.64
$12.64
$12.64 - $12.64
$12.64
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

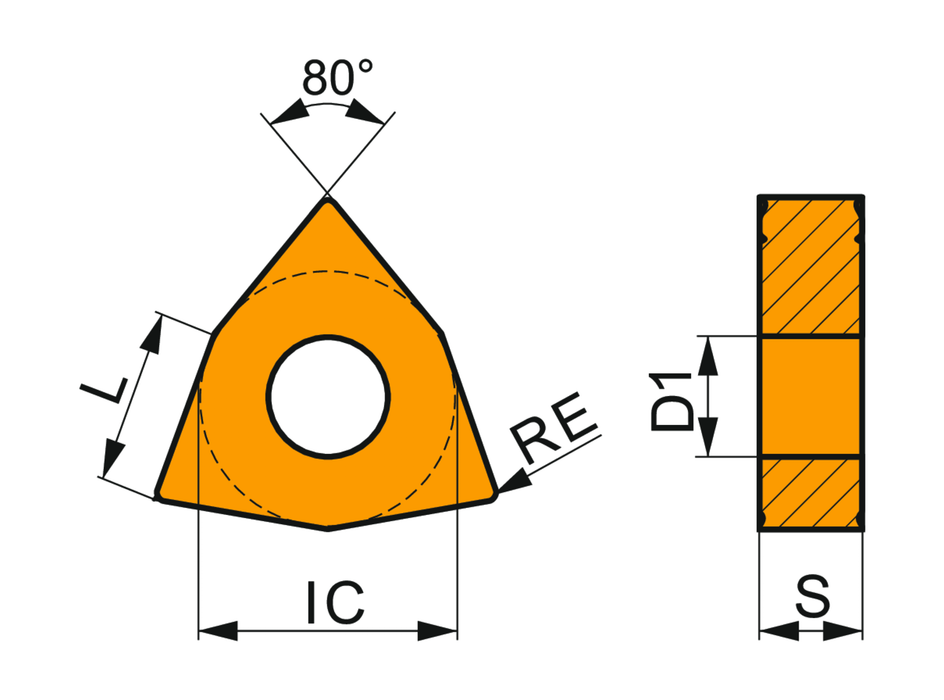

Max. Depth of Cut: 0.118

Insert Design: WNMG

Insert Shape Code: W - trigon

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.375

Chip Breaker: W-M

Grade: T5315

Corner Radius - in: 0.047

Corner Radius - mm: 1.2

EDP: 6755737

EAN: 3603602911032

MFG Part Number: 6755737
