CNMA 644S:T5305

CNMA 644S:T5305

SKU DOR6755741
by Dormer Pramet
Primary Use: Possible Use:

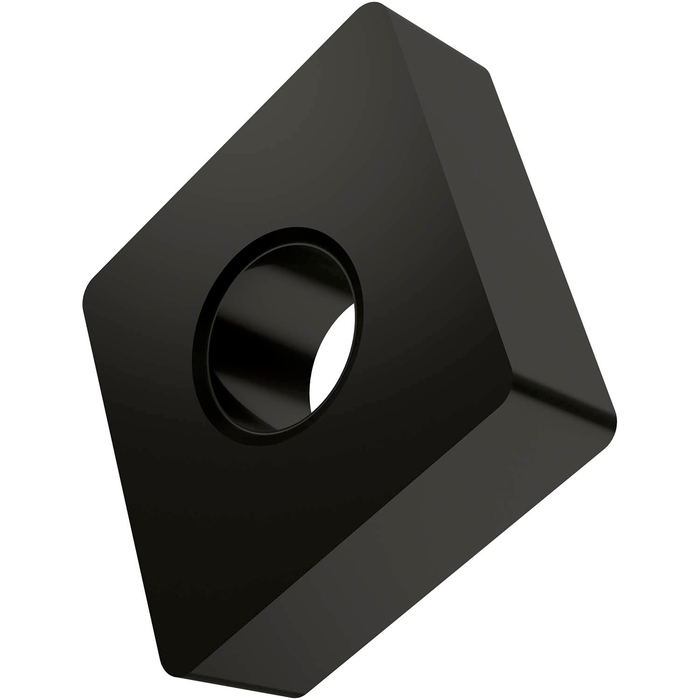

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 3/4", 1/4" thick, 1/16" nose radius, indexing accuracy according to ISO-tolerance class- M, with rounded cutting edges with facet, in grade T5305, a MT-CVD coated WC-Co carbide within ISO range K01-K15, for fine to heavy machining of cast-irons

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$30.26 - $30.26
$30.26
$30.26 - $30.26
$30.26
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.5

Insert Design: CNMA

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.25

Inscribed Circle Diameter: 0.75

Chip Breaker: No chipbreaker

Grade: T5305

Corner Radius - in: 0.063

Corner Radius - mm: 1.6

EDP: 6755741

EAN: 3603602911070

MFG Part Number: 6755741
