VNGA 331S00420:TB310

VNGA 331S00420:TB310

SKU DOR6755931
by Dormer Pramet
Primary Use: Possible Use:

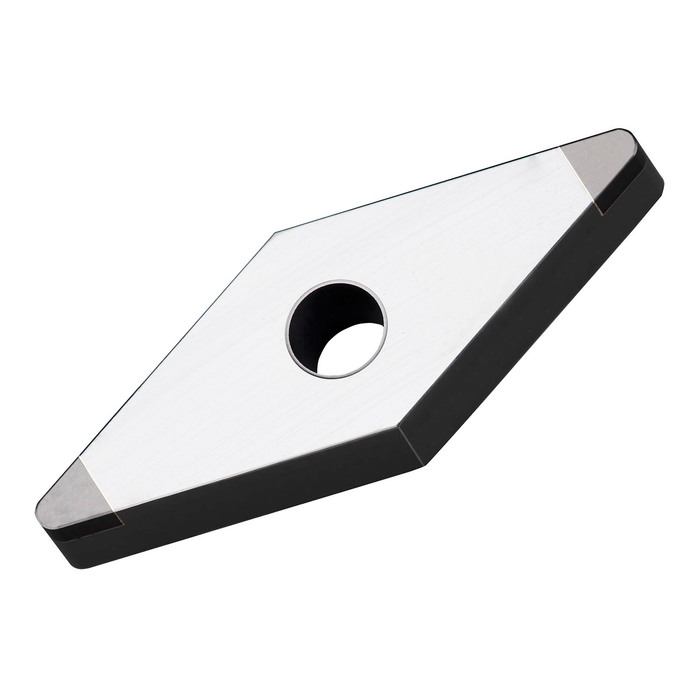

Insert for hard turning with 2 CBN tipped corners on one-side, 35° rhomboid with inscribed circle diameter of 3/8", 3/16" thick, 1/64" nose radius, indexing accuracy according to ISO-tolerance class-G, rounded cutting edges with facet T-land -20°/0.004", in grade TB310, an uncoated cubic boron nitride within ISO range H01-H10, for high-speed machining of hardened materials

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 2

For more information about this product, click here
$131.79 - $131.79
$131.79
$131.79 - $131.79
$131.79
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

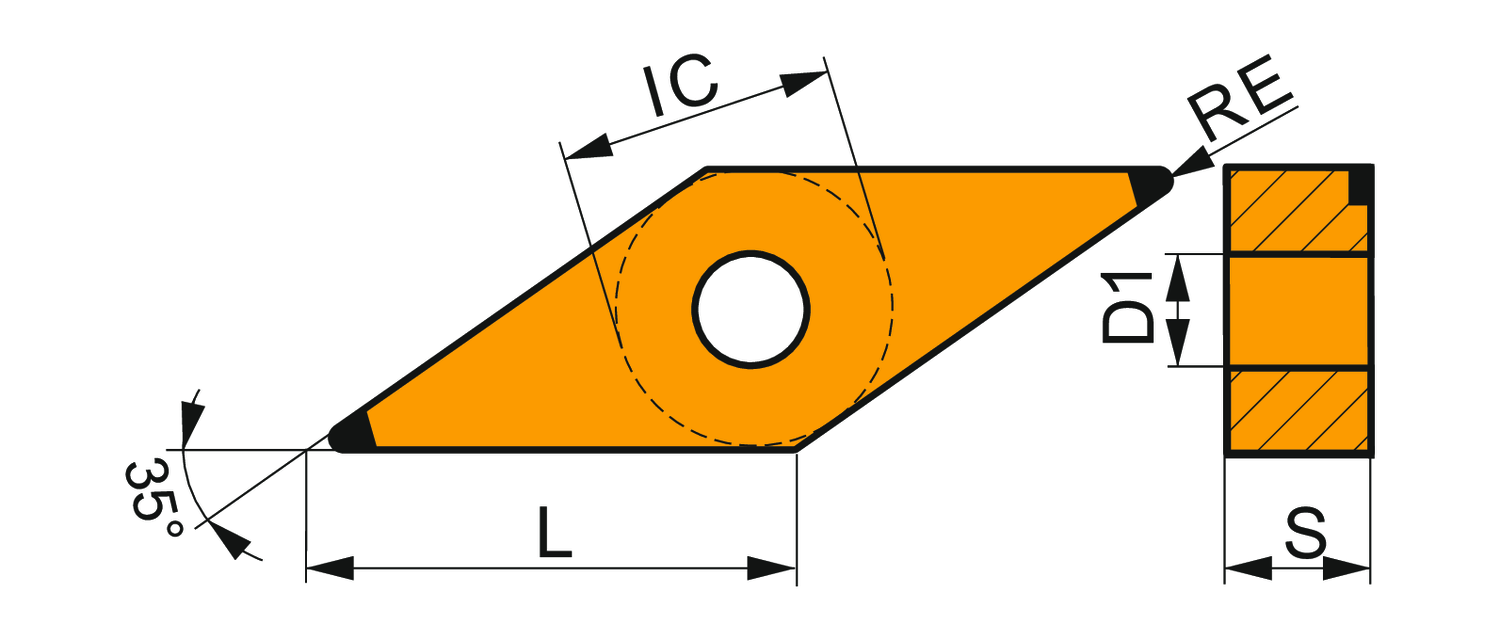

Max. Depth of Cut: 0.142

Insert Design: VNGA

Insert Shape Code: V - rhombic 35° included angle

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.375

Chip Breaker: No chipbreaker

Grade: TB310

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 6755931

EAN: 3603602912978

MFG Part Number: 6755931
