HZ 1006-60 D10:333TN
SKU DOR6755947
Primary Use:
Possible Use:

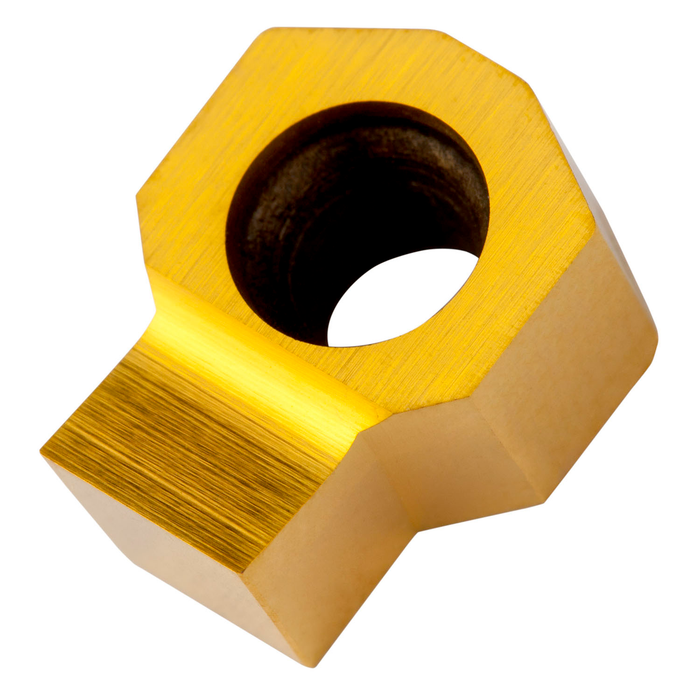

Single ended keyway and slotting insert for broaching a width of 6mm within tolerance class D10, grade 333TN PVD coated HSS within ISO-grade ranges P45-P50 for machining of steel in combination with a PHZ…-10 size broach
Inventory
Sold in packs of: 2
For more information about this product,
click here
Original price
$90.76
-
Original price
$90.76
Original price
$90.76
$90.76
-
$90.76
Current price
$90.76
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

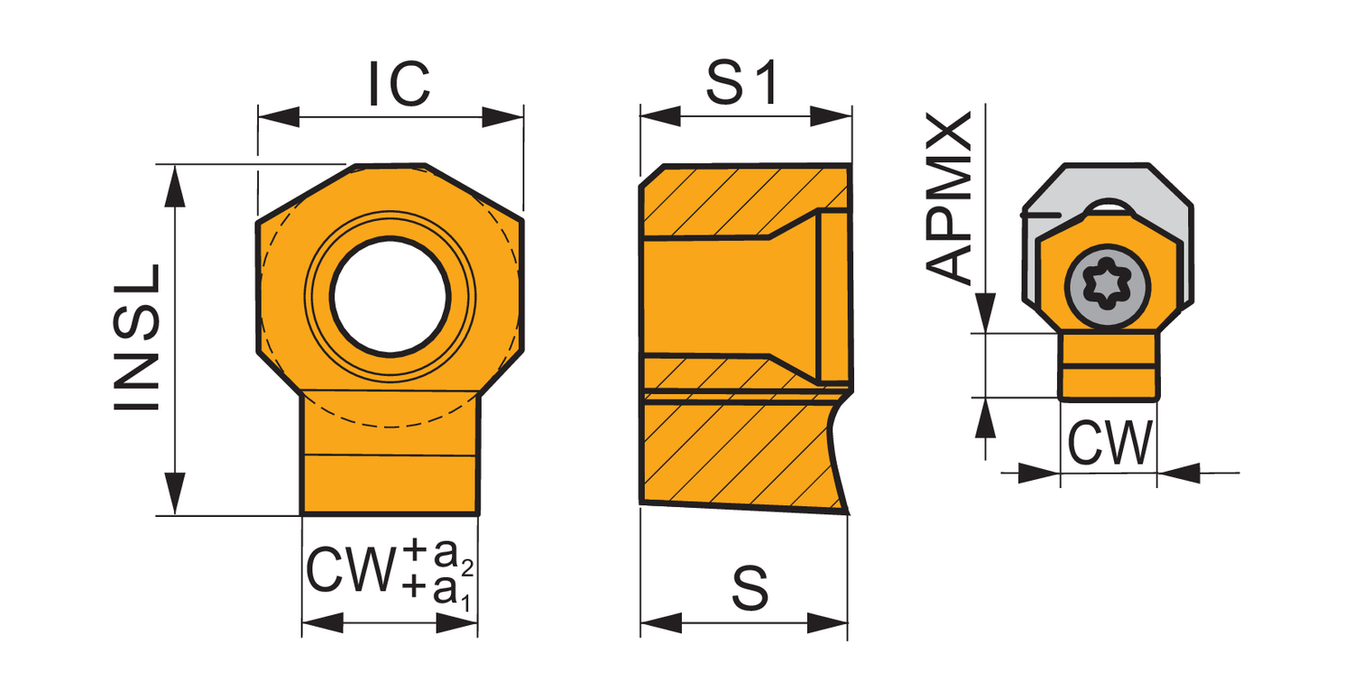

Max. Depth of Cut: 0.165
Insert Design: HZ
Insert Shape Code: H - hexagonal
Insert Thickness: 0.246
Inscribed Circle Diameter: 0.394
Chip Breaker: No chipbreaker
Grade: 333TN
EDP: 6755947
EAN: 3603602913135
MFG Part Number: 6755947
