HZ/2 16-16 P9:333TN
HZ/2 16-16 P9:333TN

HZ/2 16-16 P9:333TN

SKU DOR6755956
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$301.07 CAD - $301.07 CAD
$301.07 CAD
$301.07 CAD - $301.07 CAD
$301.07 CAD

Sold in packs of: 2

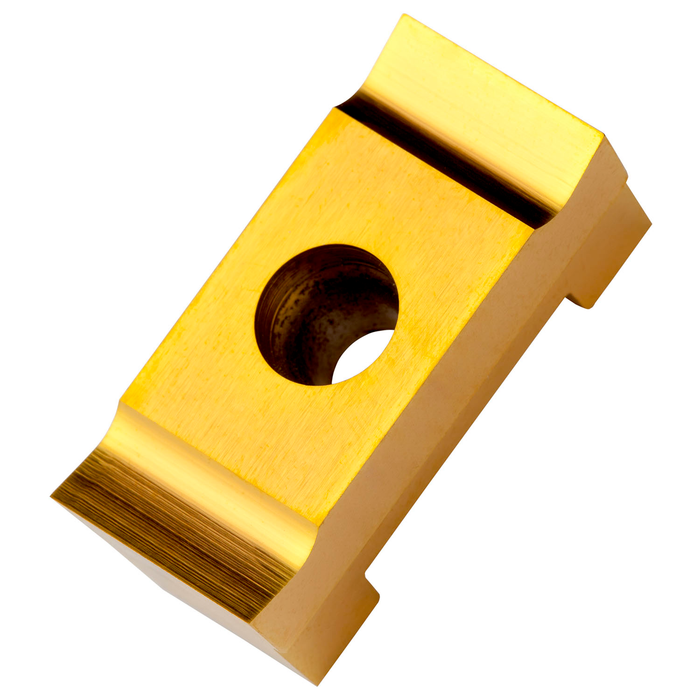

Double ended keyway and slotting insert for broaching a width of 16mm within tolerance class P9, grade 333TN PVD coated HSS within ISO-grade ranges P45-P50 for machining of steel in combination with a PHZ-2…-14 size broach

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HZ/2 16-16 P9:333TN
Grade333TN
Chipbreaker (CBMD)No chipbreaker
Product Number6755956
Product FamilyHZ-2

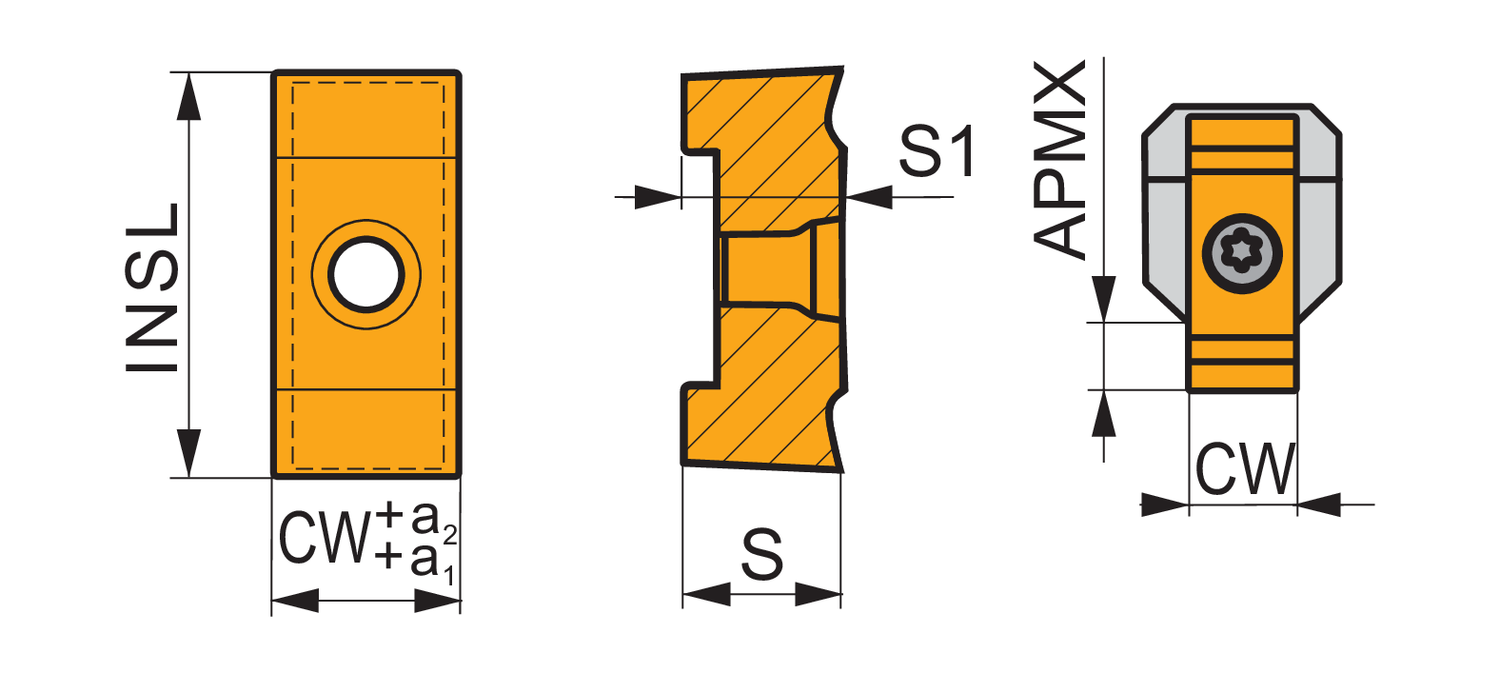

Insert Geometry
Insert DesignHZ-2
Insert Shape Code (SC)H - hexagonal
Insert Thickness — in (S)0.547"
Insert Thickness — mm (S)13.9 mm
Depth of Cut Max — in (APMX)0.354"
Depth of Cut Max — mm (APMX)9.0 mm
Tool Information
Reference Numbers
EDP Number6755956
EAN3603602913227
File Type Download
HZ/2 16-16 P9:333TN — Line Drawing PDF Download
