WCMT 433-RF:T7335

WCMT 433-RF:T7335

SKU DOR6756047
by Dormer Pramet
Possible Use:

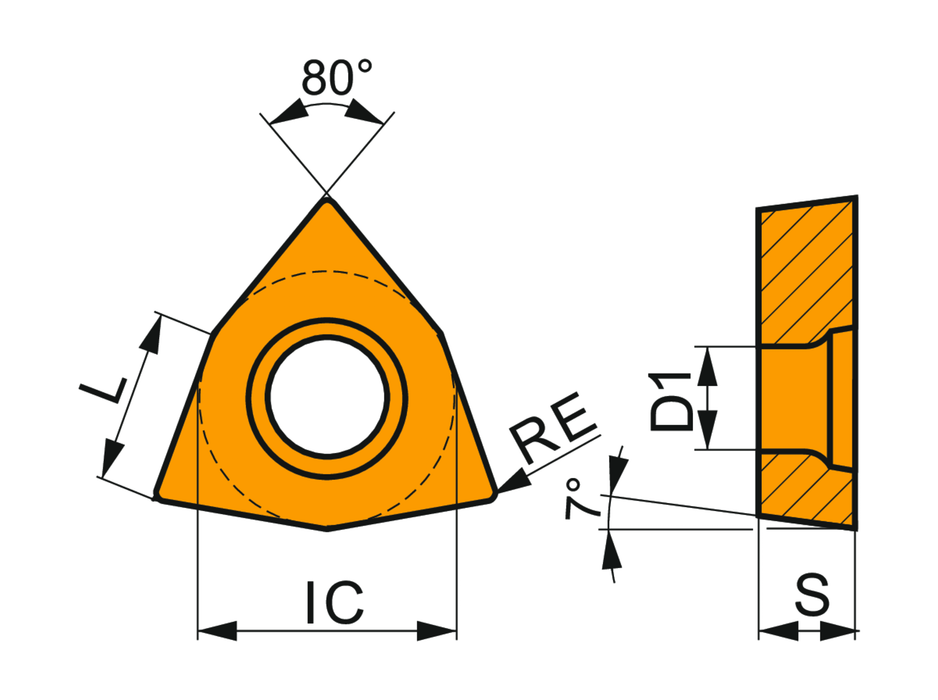

Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 1/2", 3/16" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker RF, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide, for fine to heavy machining

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$23.04 - $23.04
$23.04
$23.04 - $23.04
$23.04
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.22

Insert Design: WCMT

Insert Shape Code: W - trigon

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.5

Chip Breaker: RF

Grade: T7335

Corner Radius - in: 0.047

Corner Radius - mm: 1.2

EDP: 6756047

EAN: 3603602914132

MFG Part Number: 6756047
