SDMX 120508EN-M:M8345

SDMX 120508EN-M:M8345

SKU DOR6756070
by Dormer Pramet
Primary Use: Possible Use:

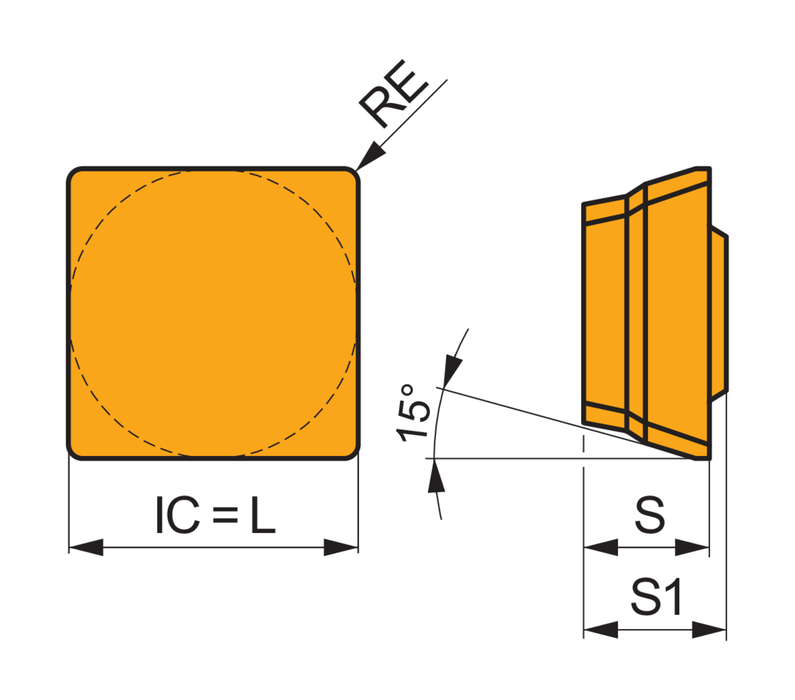

Single-sided milling insert SDMX 1205, square for a maximum depth of cut of .4724", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges, M8345 PVD coated WC-Co carbide within ISO-grade ranges P30-P50 and M30-M40 for machining of steel and stainless-steel with shoulder mills with extended flute J(T)-CSD12X

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$25.46 - $25.46
$25.46
$25.46 - $25.46
$25.46
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.472

Insert Design: SDMX

Insert Shape Code: S - square

Insert Thickness: 0.219

Inscribed Circle Diameter: 0.5

Chip Breaker: M

Grade: M8345

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 6756070

EAN: 3603602914361

MFG Part Number: 6756070
