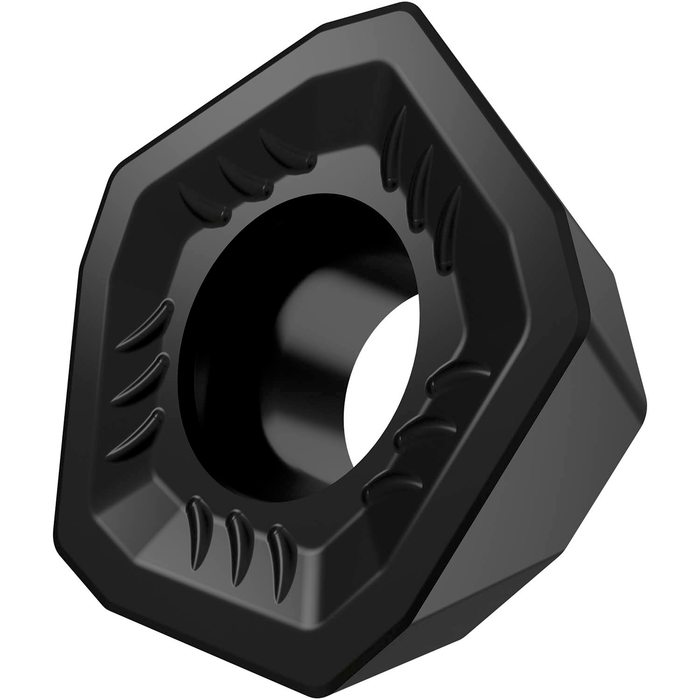

PDMX 0905ZESR-R:M8345
SKU DOR6756076
Possible Use:
Single-sided milling insert PDMX 0905, pentagonal for a maximum depth of cut of .0787", with " corner radius, an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M8345 PVD coated WC-Co carbide for machining with high feed cutters SPD09
Inventory
Sold in packs of: 10
For more information about this product,
click here
Original price
$22.76
-
Original price
$22.76
Original price
$22.76
$22.76
-
$22.76
Current price
$22.76
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

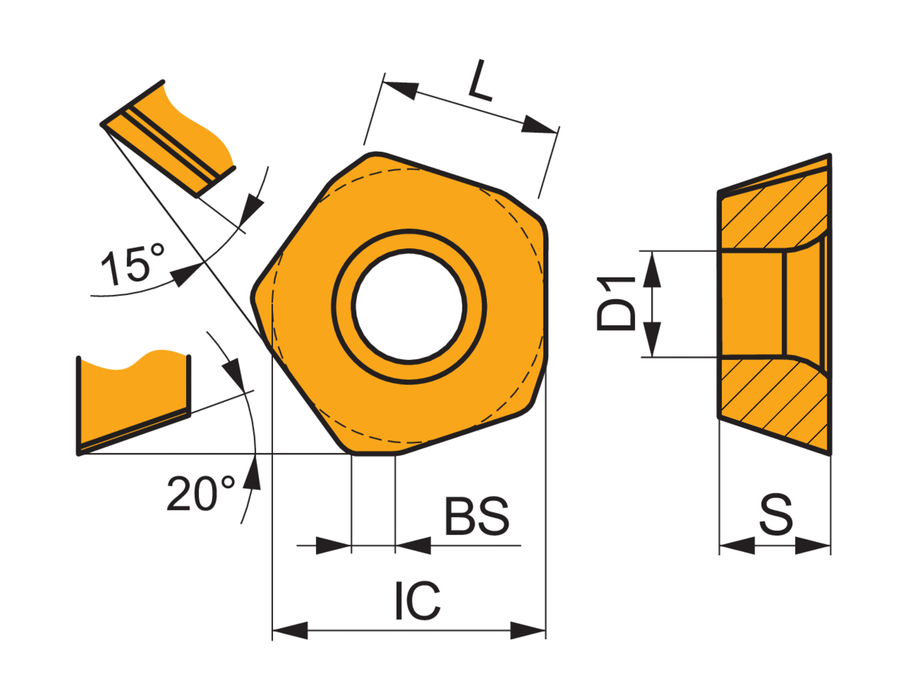

Max. Depth of Cut: 0.079
Insert Design: PDMX
Insert Shape Code: P - pentagonal
Insert Thickness: 0.215
Inscribed Circle Diameter: 0.531
Chip Breaker: R
Grade: M8345
EDP: 6756076
EAN: 3603602914422
MFG Part Number: 6756076
