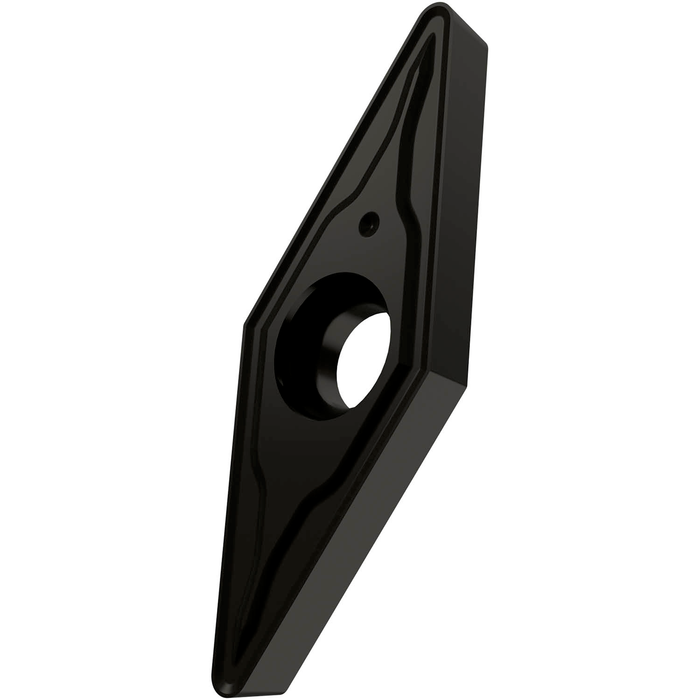

VCGT 2.522-FM2:T9325

VCGT 2.522-FM2:T9325

SKU DOR6756103
by Dormer Pramet
Primary Use: Possible Use:

Single-sided positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 5/16", 1/8" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- G, chip-breaker FM2, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for fine to medium machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$19.61 - $19.61
$19.61
$19.61 - $19.61
$19.61
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

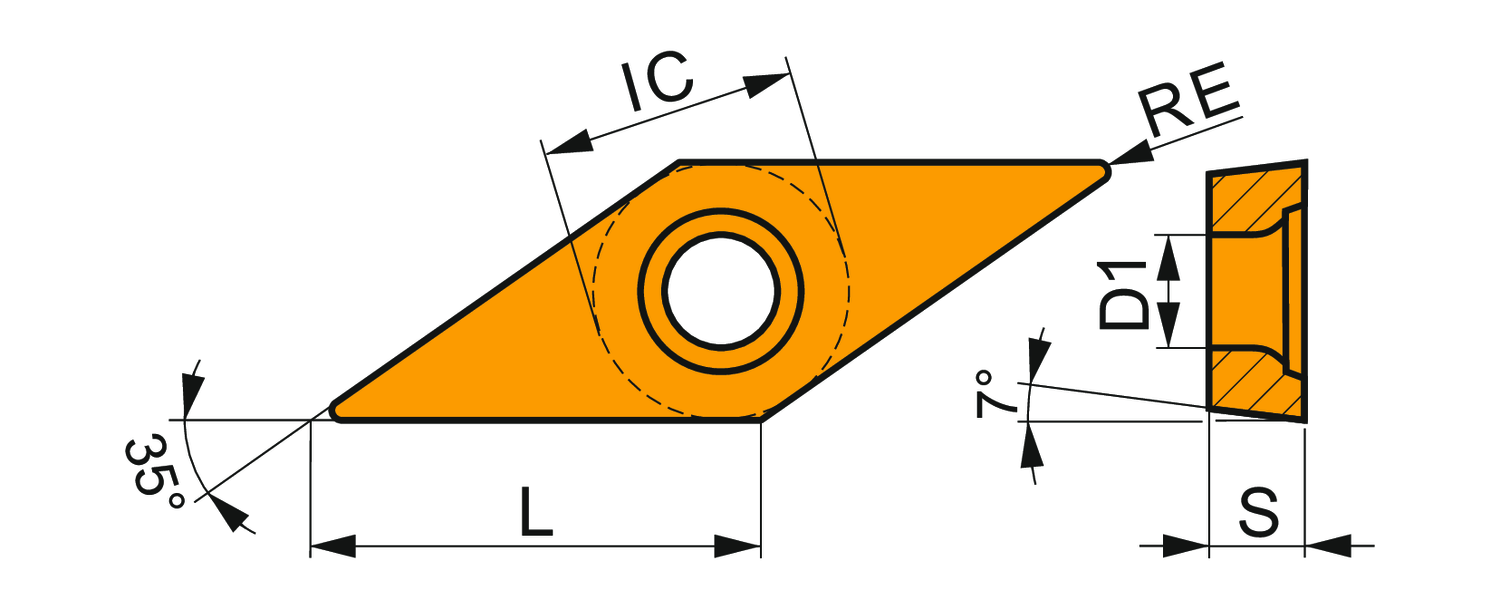

Max. Depth of Cut: 0.13

Insert Design: VCGT

Insert Shape Code: V - rhombic 35° included angle

Insert Thickness: 0.125

Inscribed Circle Diameter: 0.313

Chip Breaker: FM2

Grade: T9325

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 6756103

EAN: 3603602914699

MFG Part Number: 6756103
