PNMU 1308DNSR-M:8215

PNMU 1308DNSR-M:8215

SKU DOR6756162
by Dormer Pramet
Primary Use: Possible Use:

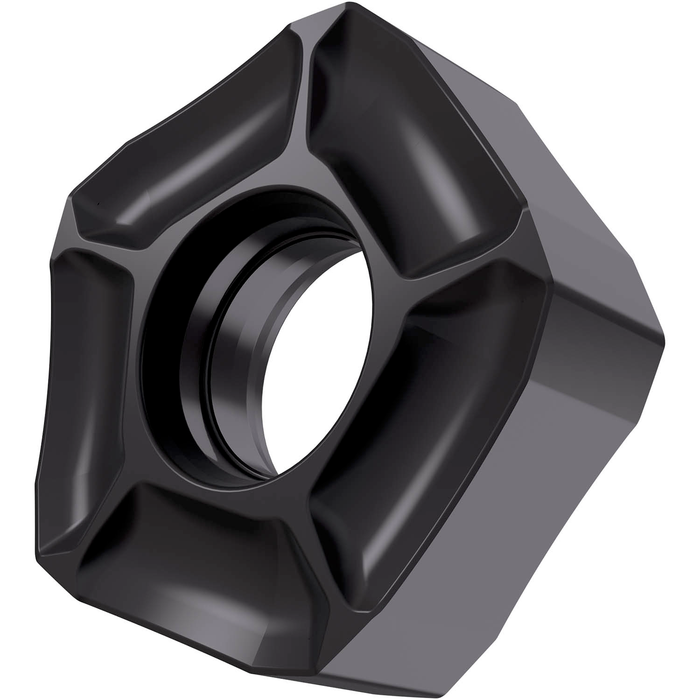

Double-sided milling insert PNMU 1308 with chip-breakers, pentagonal for a maximum depth of cut of .3937", with " corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range K10-K25 for machining of cast-iron with face mills SPN13

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 5

For more information about this product, click here
$55.89 - $55.89
$55.89
$55.89 - $55.89
$55.89
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

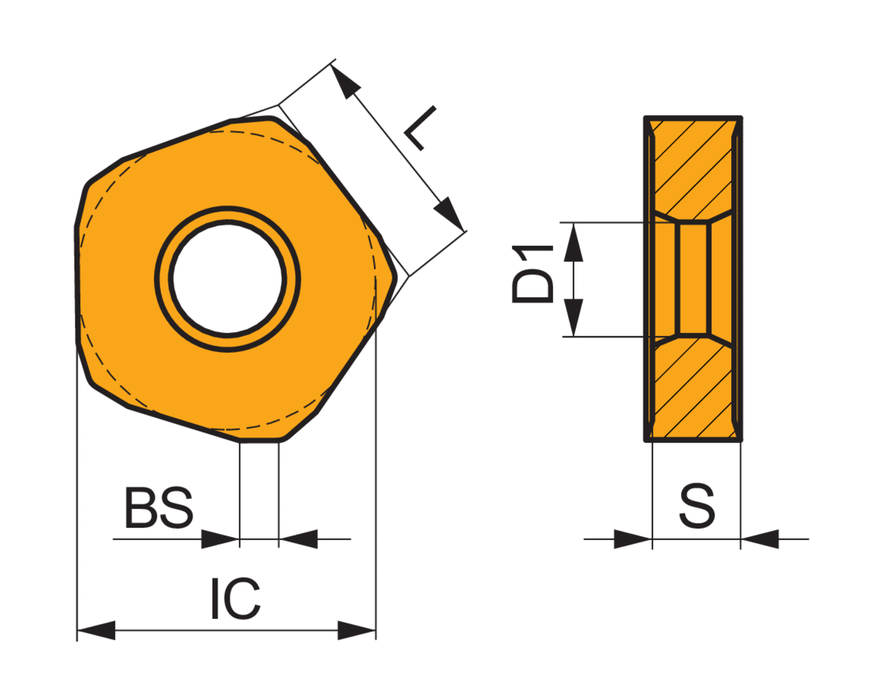

Max. Depth of Cut: 0.394

Insert Design: PNMU

Insert Shape Code: P - pentagonal

Insert Thickness: 0.313

Inscribed Circle Diameter: 0.961

Chip Breaker: M

Grade: 8215

EDP: 6756162

EAN: 3603602915283

MFG Part Number: 6756162
