WCGT 1.211-FF2:HF7

WCGT 1.211-FF2:HF7

SKU DOR6756167
by Dormer Pramet
Primary Use:

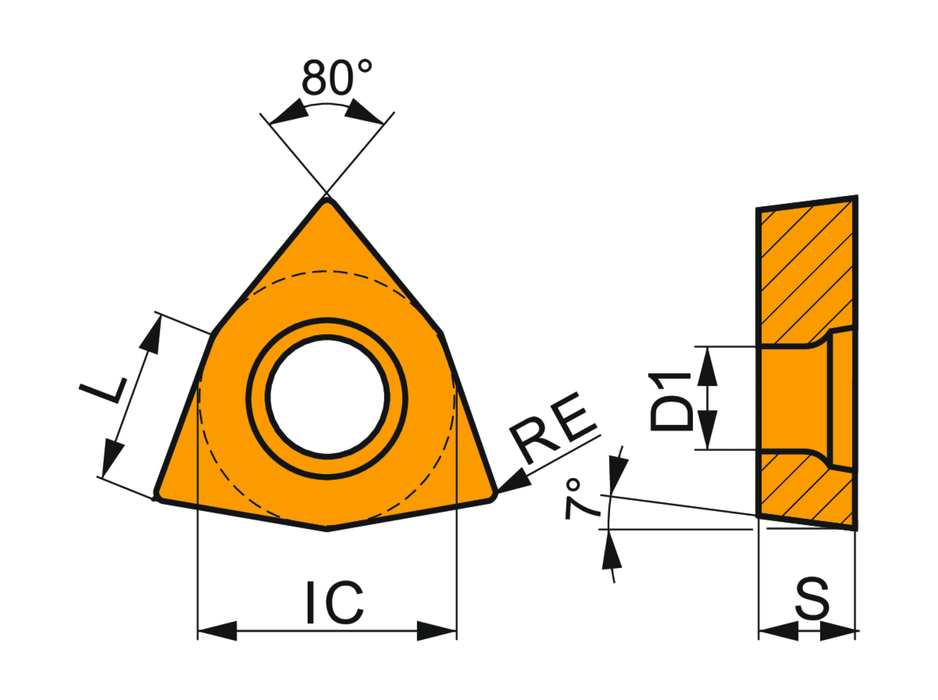

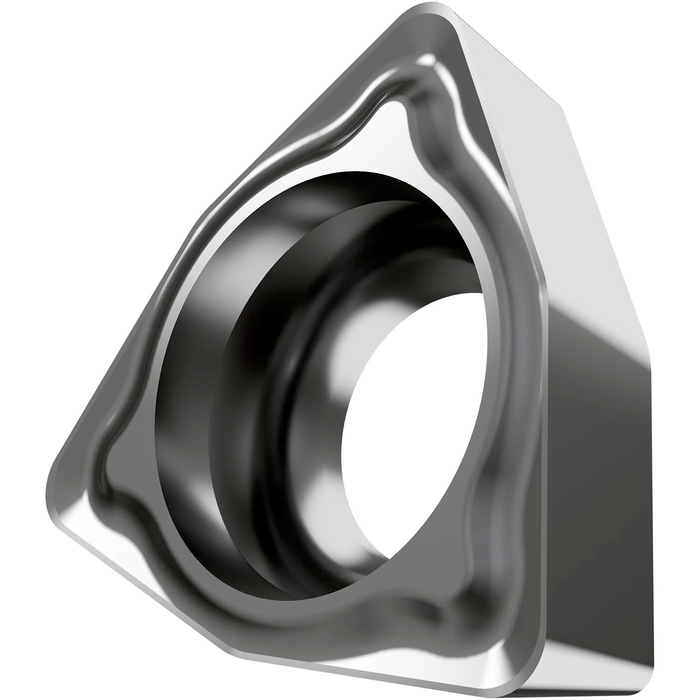

Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 5/32", 1/16" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- G, chip-breaker FF2, in grade HF7, an uncoated fine grained WC-Co carbide within ISO range K10-K25, for fine to medium machining of cast-irons

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$11.40 - $11.40
$11.40
$11.40 - $11.40
$11.40
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.055

Insert Design: WCGT

Insert Shape Code: W - trigon

Insert Thickness: 0.063

Inscribed Circle Diameter: 0.156

Chip Breaker: FF2

Grade: HF7

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 6756167

EAN: 3603602915337

MFG Part Number: 6756167
