HNEF 090508EN-M:M5315

HNEF 090508EN-M:M5315

SKU DOR6756169
by Dormer Pramet
Primary Use:

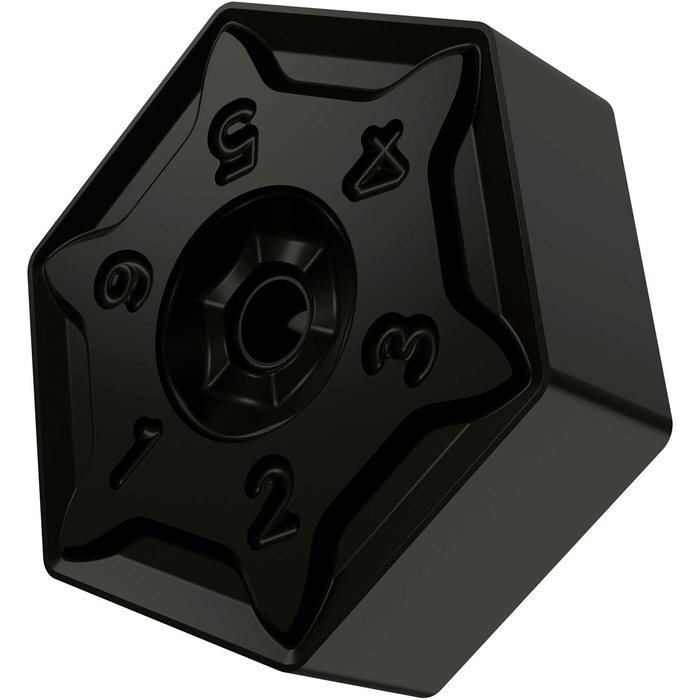

Double-sided milling insert HNEF 090508E with chip-breakers, hectagonal for a maximum depth of cut of .1575", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-E and M geometry with rounded cutting edges, M5315 MT-CVD coated WC-Co carbide within ISO-grade range K05-K25 for machining of cast-iron with face mills CHN09

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$38.91 - $38.91
$38.91
$38.91 - $38.91
$38.91
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

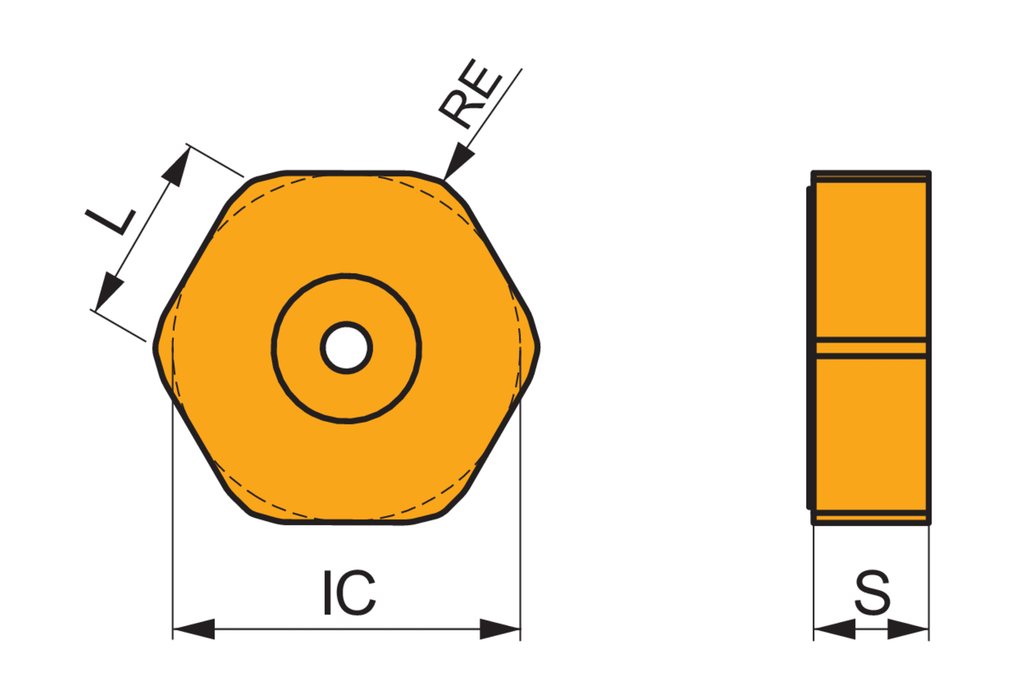

Max. Depth of Cut: 0.157

Insert Design: HNEF

Insert Shape Code: H - hexagonal

Insert Thickness: 0.222

Inscribed Circle Diameter: 0.638

Chip Breaker: M

Grade: M5315

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 6756169

EAN: 3603602915351

MFG Part Number: 6756169
