PNMQ 1308DNSN:M8345
SKU DOR6756181
Possible Use:

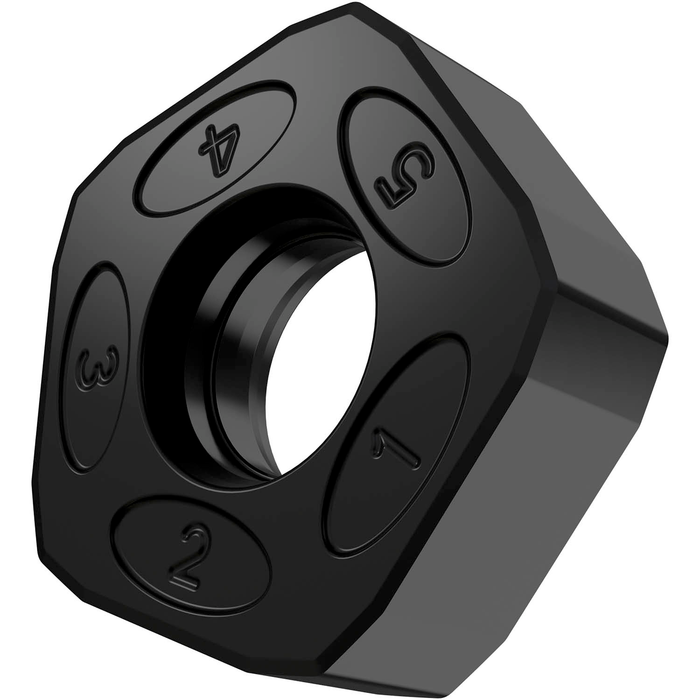

Double-sided milling insert PNMQ 1308, pentagonal for a maximum depth of cut of .3937", with " corner radius, an indexing accuracy according to ISO-tolerance class-M with rounded cutting edges and facet, M8345 PVD coated WC-Co carbide for machining with face mills SPN13
Inventory
Sold in packs of: 5
For more information about this product,
click here
Original price
$56.74
-
Original price
$56.74
Original price
$56.74
$56.74
-
$56.74
Current price
$56.74
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

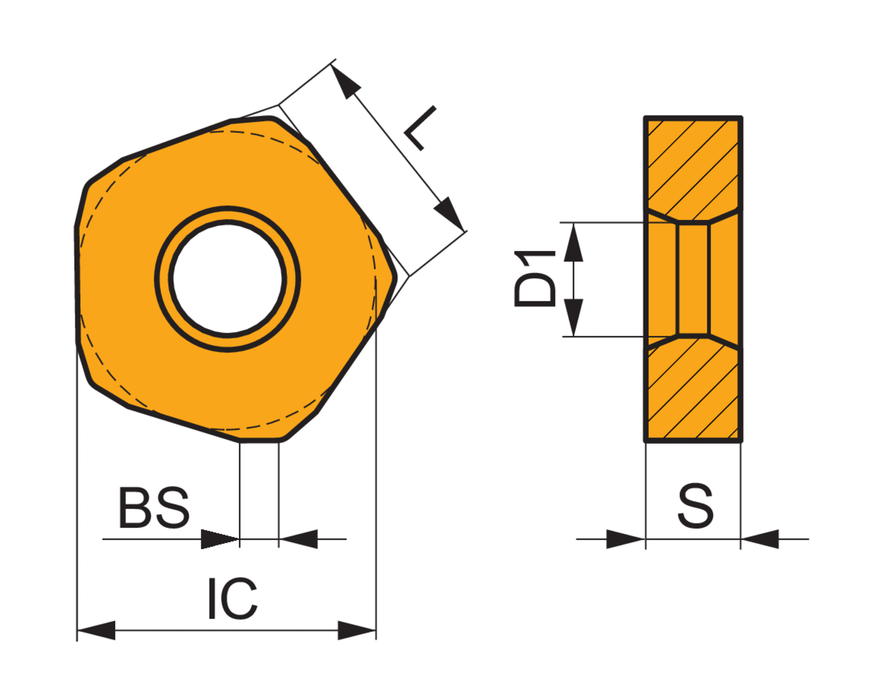

Max. Depth of Cut: 0.394
Insert Design: PNMQ
Insert Shape Code: P - pentagonal
Insert Thickness: 0.313
Inscribed Circle Diameter: 0.961
Chip Breaker: No chipbreaker
Grade: M8345
EDP: 6756181
EAN: 3603602915474
MFG Part Number: 6756181
