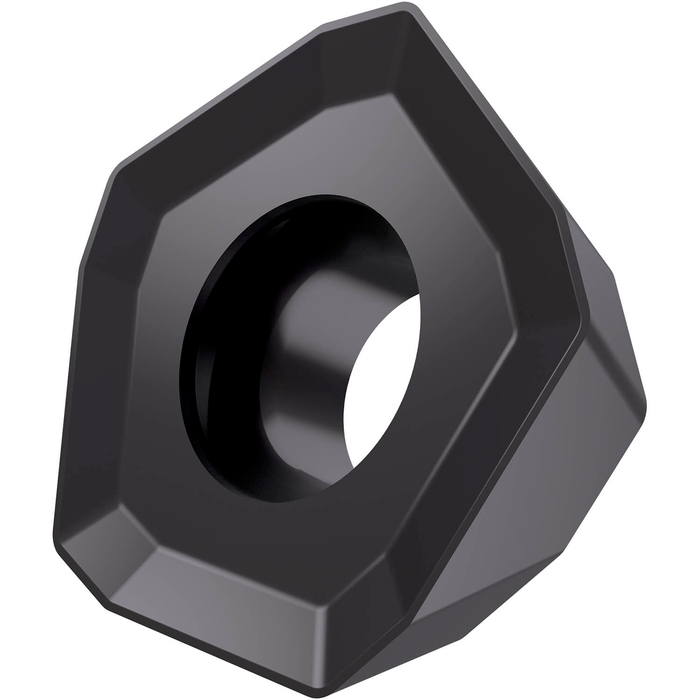

PDMX 0905ZEER-M:8215
SKU DOR6756188
Primary Use:
Possible Use:
Single-sided milling insert PDMX 0905, pentagonal for a maximum depth of cut of .0787", with " corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges, 8215 PVD coated fine grained WC-Co carbide for machining with high feed cutters SPD09
Inventory
Sold in packs of: 10
For more information about this product,
click here
Original price
$22.20
-
Original price
$22.20
Original price
$22.20
$22.20
-
$22.20
Current price
$22.20
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

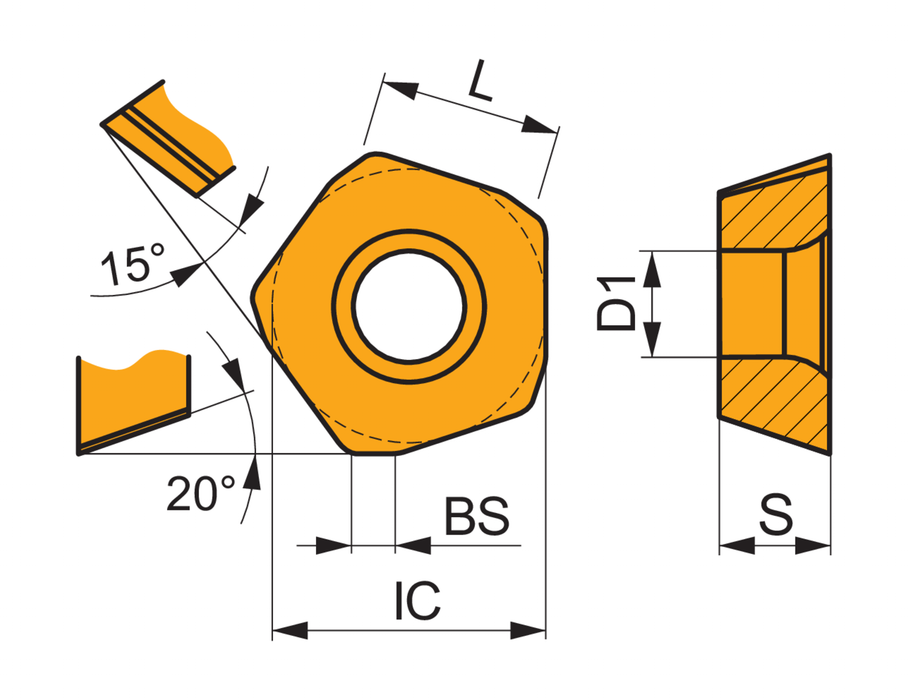

Max. Depth of Cut: 0.079
Insert Design: PDMX
Insert Shape Code: P - pentagonal
Insert Thickness: 0.215
Inscribed Circle Diameter: 0.531
Chip Breaker: M
Grade: 8215
EDP: 6756188
EAN: 3603602915542
MFG Part Number: 6756188
