VBMT 331-UR:TT310

VBMT 331-UR:TT310

SKU DOR6756265
by Dormer Pramet
Primary Use: Possible Use:

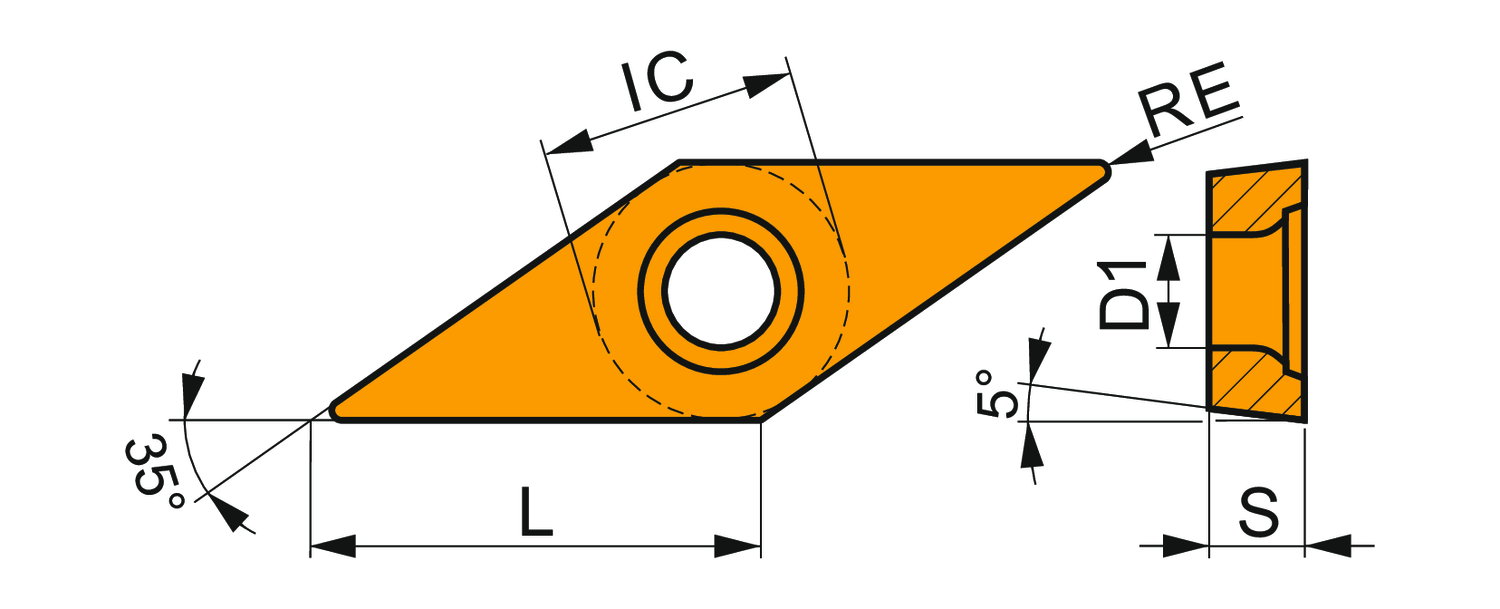

Single-sided positive turning insert, 35° rhomboid with 5° clearance, inscribed circle diameter of 3/8", 3/16" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker UR, in grade TT310, a PVD coated cermet within ISO range P10-P25, for fine to heavy machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$22.14 - $22.14
$22.14
$22.14 - $22.14
$22.14
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.079

Insert Design: VBMT

Insert Shape Code: V - rhombic 35° included angle

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.375

Chip Breaker: UR

Grade: TT310

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 6756265

EAN: 3603602916310

MFG Part Number: 6756265
