VCGT 2.521-NF2:TT010

VCGT 2.521-NF2:TT010

SKU DOR6756306
by Dormer Pramet
Possible Use:

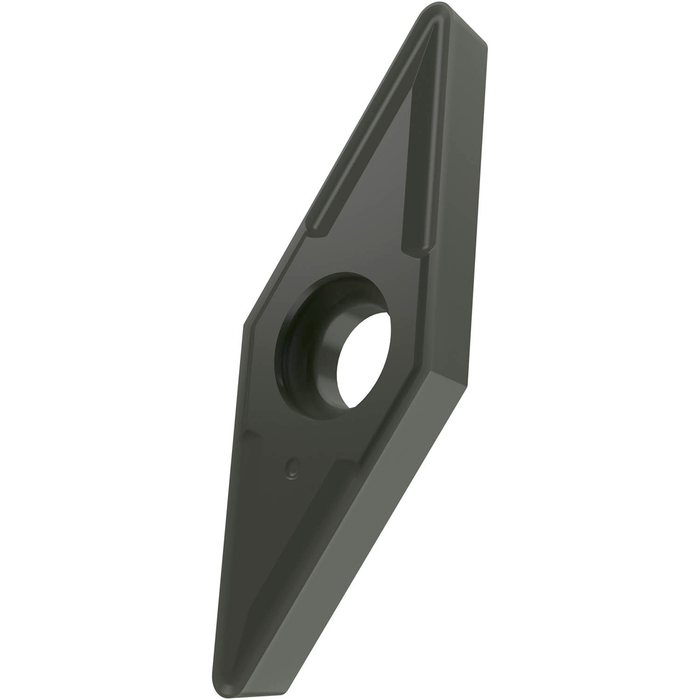

Single-sided positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 5/16", 1/8" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- G, chip-breaker NF2, in grade TT010, an uncoated cermet, for fine to medium machining

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$18.43 - $18.43
$18.43
$18.43 - $18.43
$18.43
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

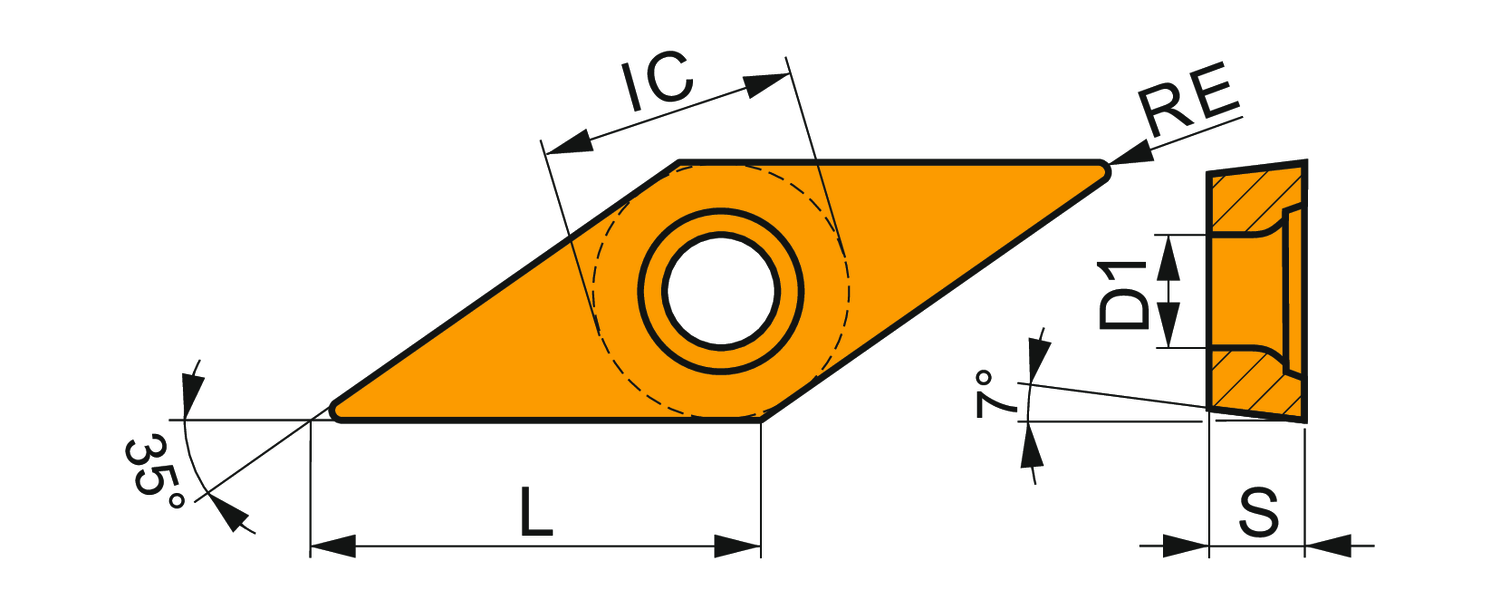

Max. Depth of Cut: 0.13

Insert Design: VCGT

Insert Shape Code: V - rhombic 35° included angle

Insert Thickness: 0.125

Inscribed Circle Diameter: 0.313

Chip Breaker: NF2

Grade: TT010

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 6756306

EAN: 3603602916723

MFG Part Number: 6756306
