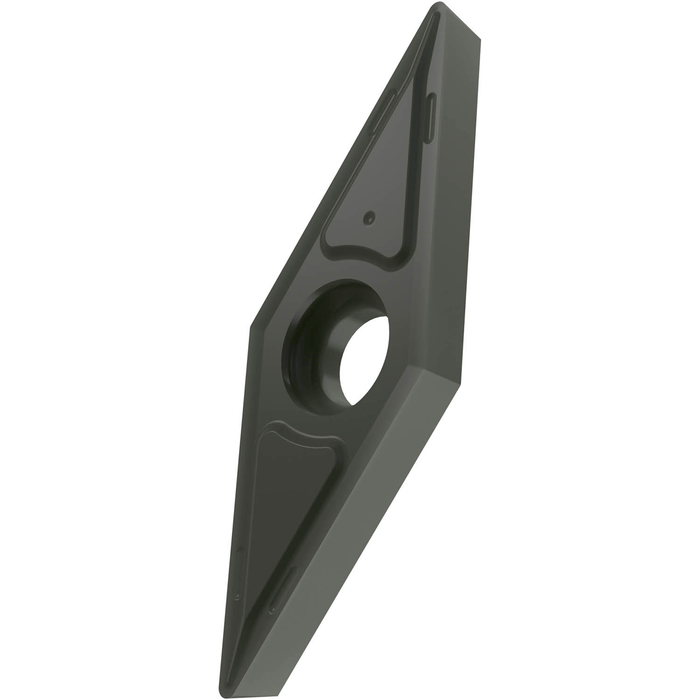

VCGT 2.522-FF2:TT010

VCGT 2.522-FF2:TT010

SKU DOR6756307
by Dormer Pramet
Primary Use:

Single-sided positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 5/16", 1/8" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- G, chip-breaker FF2, in grade TT010, an uncoated cermet within ISO range P01-P10, for fine to medium machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$18.43 - $18.43
$18.43
$18.43 - $18.43
$18.43
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

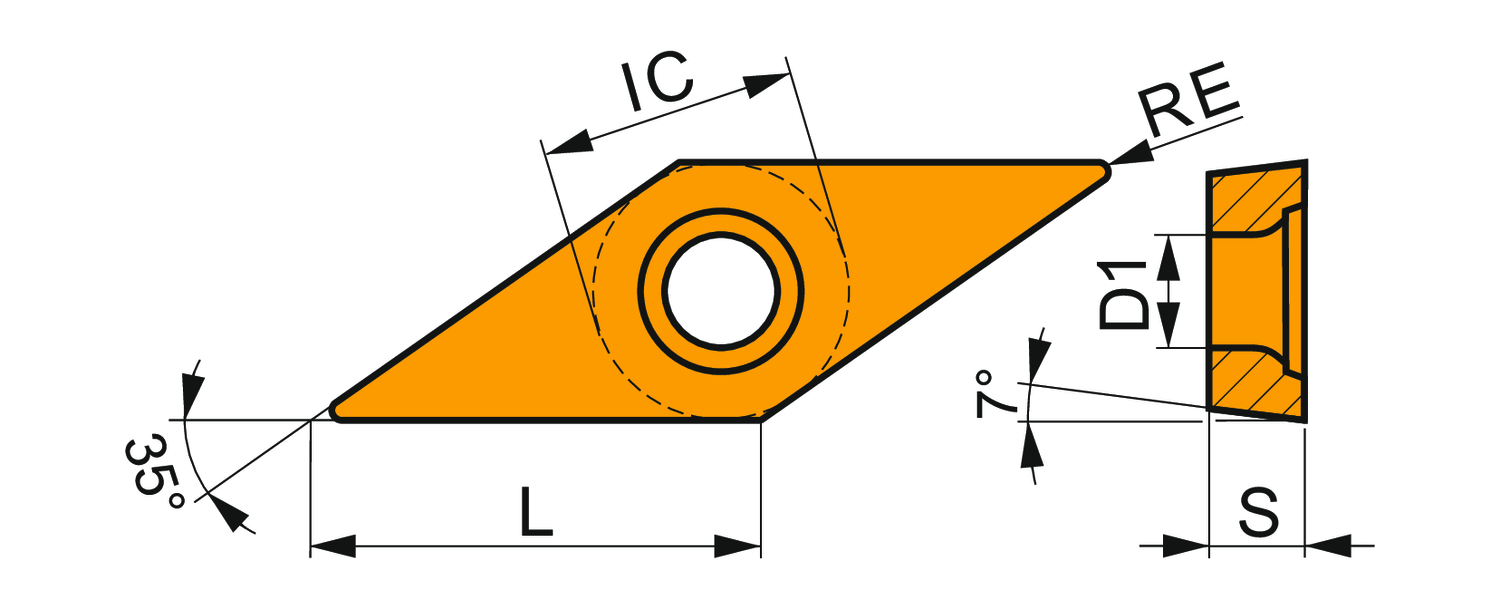

Max. Depth of Cut: 0.118

Insert Design: VCGT

Insert Shape Code: V - rhombic 35° included angle

Insert Thickness: 0.125

Inscribed Circle Diameter: 0.313

Chip Breaker: FF2

Grade: TT010

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 6756307

EAN: 3603602916730

MFG Part Number: 6756307
