SCLCR 2525 M 12-M-A
SKU DOR6756581
Primary Use:

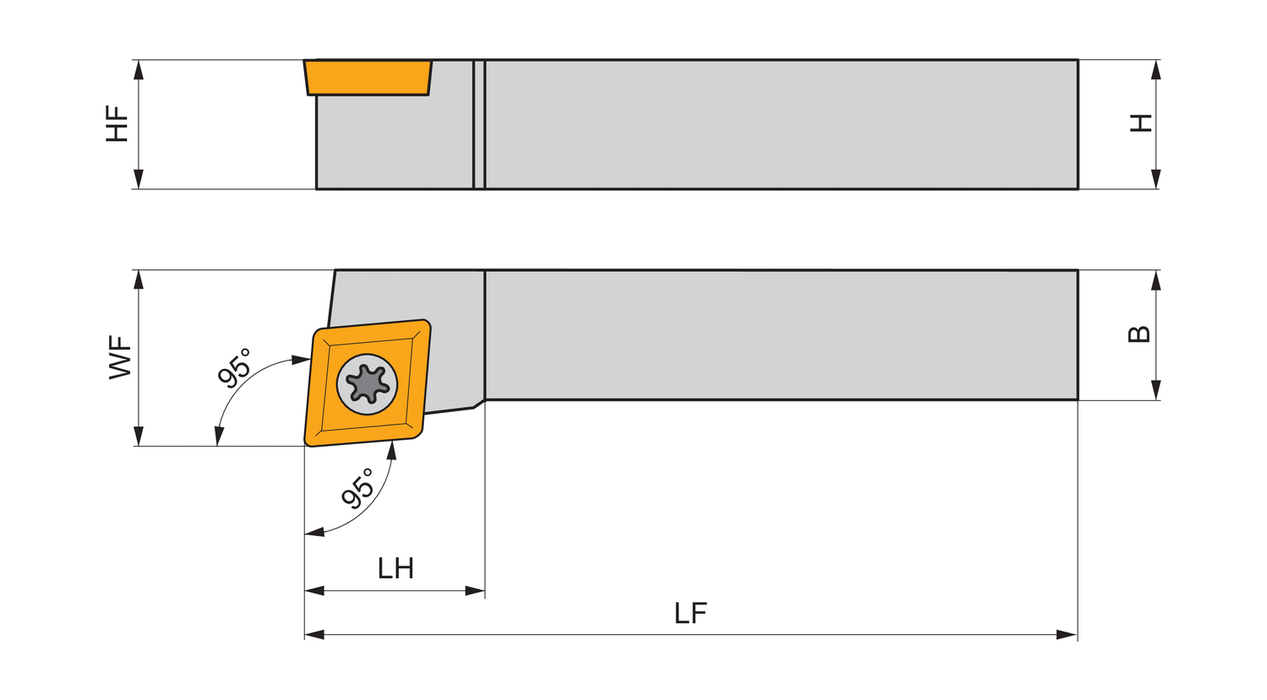

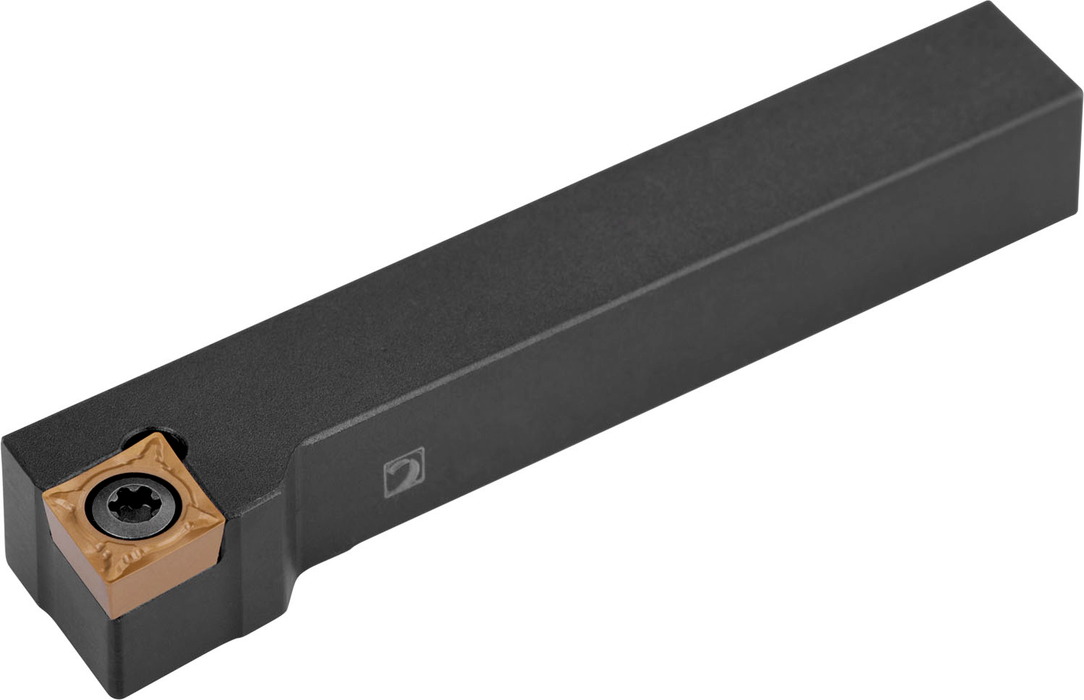

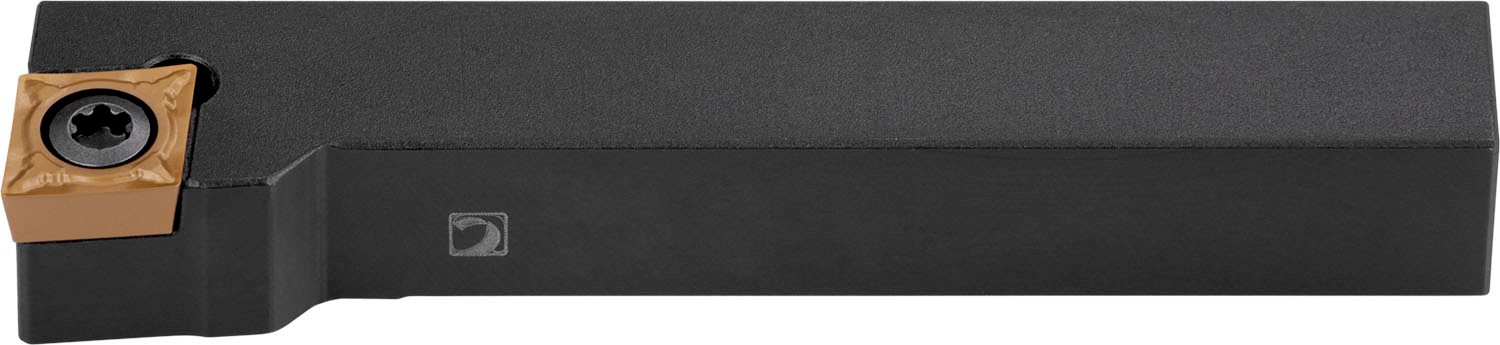

Screw clamp turning tool for holding a 80° rhombus positive insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation CC.. 1204.. ), right hand 95° side and end cutting with off-set shank, 25mm tool height x 25mm width x 150mm long for chamfering, taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$175.00
-
Original price
$175.00
Original price
$175.00
$175.00
-
$175.00
Current price
$175.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Height: 0.787
Tool Direction: Neutral
Insert Designation: ["CC.. 1204.."]
Functional Length: 5.906
EDP: 6756581
EAN: 3603602919472
MFG Part Number: 6756581
