SDNCN 2020 K 11-M-A
SKU DOR6756586
Primary Use:

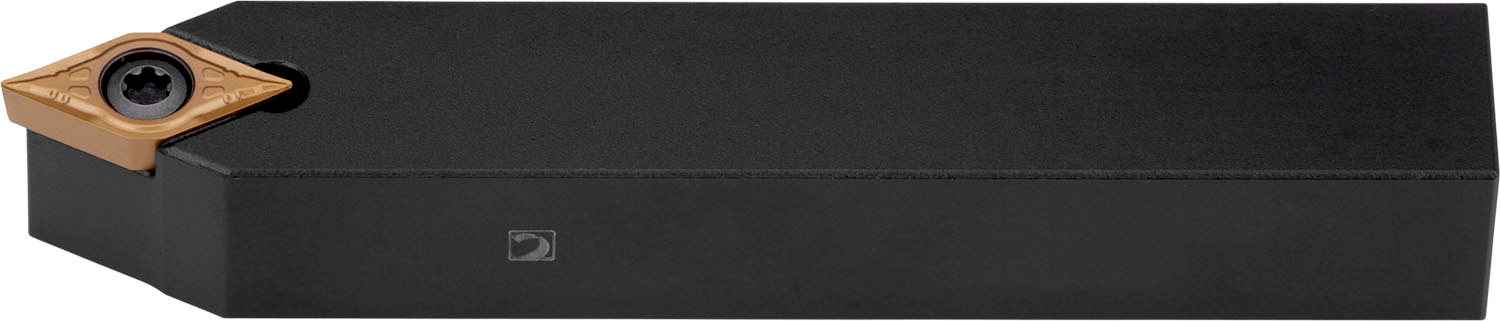

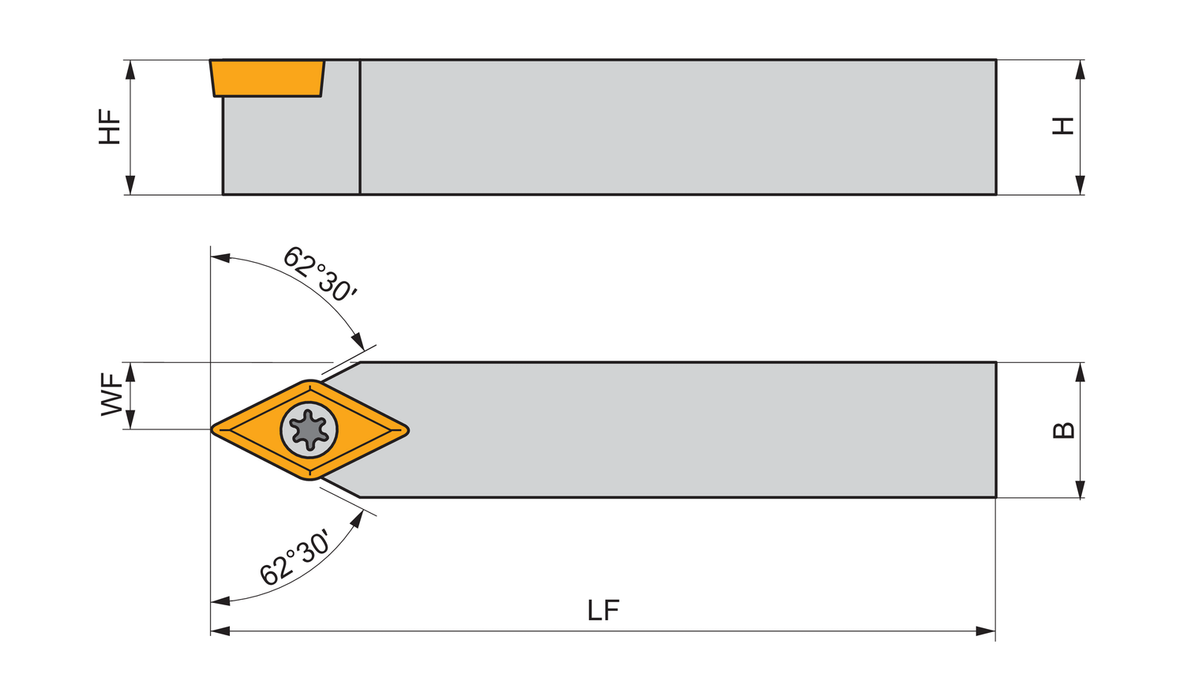

Screw clamp turning tool for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation DC.. 11T3.. ), neutral hand 62°30' side cutting with straight shank, 20mm tool height x 20mm width x 125mm long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$168.00
-
Original price
$168.00
Original price
$168.00
$168.00
-
$168.00
Current price
$168.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Height: 0.787
Tool Direction: Left
Insert Designation: ["DC.. 11T3.."]
Functional Length: 4.921
EDP: 6756586
EAN: 3603602919526
MFG Part Number: 6756586
