A32S-SDQCR 11-A

A32S-SDQCR 11-A

SKU DOR6756643
by Dormer Pramet
Primary Use:

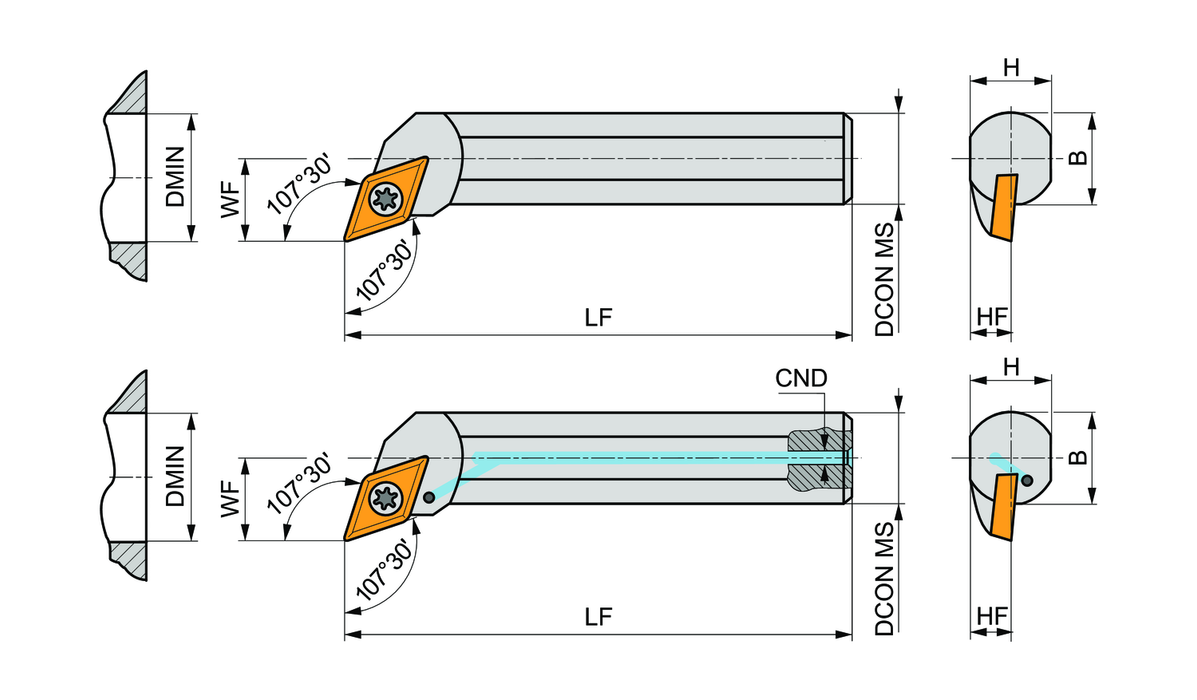

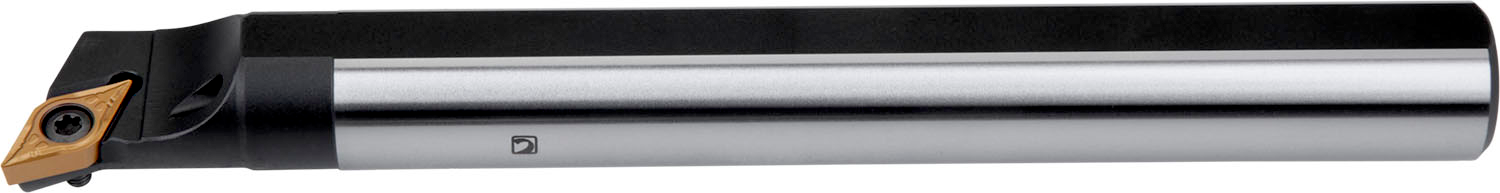

Screw clamp boring bar for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation DC.. 11T3.. ), right hand 107°30' end cutting with off-set shank, steel with coolant hole, 32mm diameter x 250mm long for taper boring and longitudinal boring with and without shoulder

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$385.00 - $385.00
$385.00
$385.00 - $385.00
$385.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Through Coolant: 1

Connetion Diameter: 1.26

Height: 1.181

Minimum Bore: 1.575

Tool Direction: Right

Insert Designation: ["DC.. 11T3.."]

Functional Length: 9.843

EDP: 6756643

EAN: 3603602920096

MFG Part Number: 6756643
