PSKNR 5050 T 2509
SKU DOR6756708
Primary Use:
Possible Use:

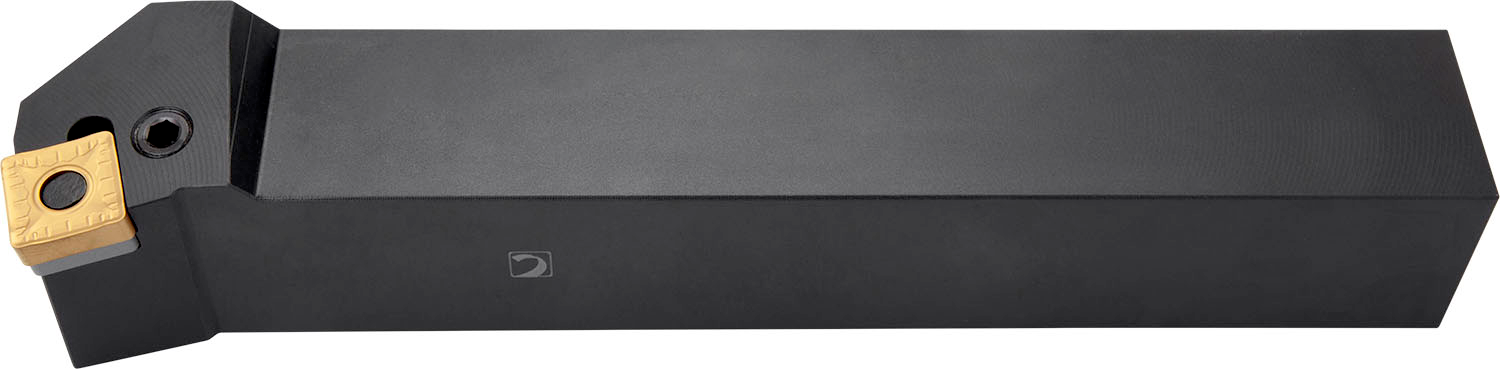

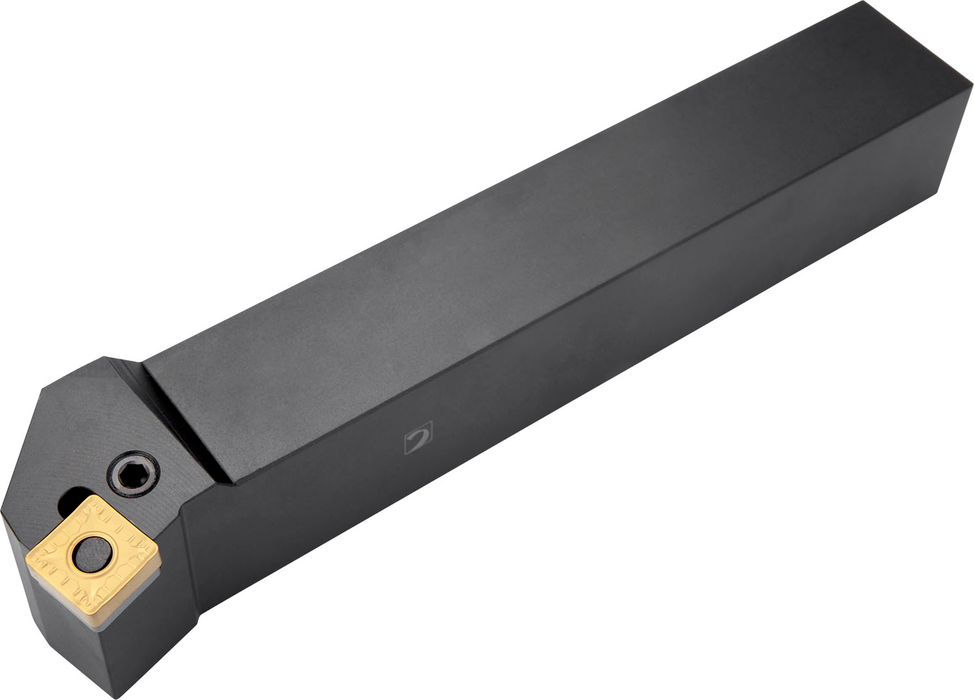

Lever lock turning tool for holding a square negative insert with an inscribed circle diameter of 25.4mm, 9.52mm thick (ISO designation SN.. 2509.. ), right hand 75° end cutting with off-set shank, 50mm tool height x 50mm width x 300mm long for face turning without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$445.00
-
Original price
$445.00
Original price
$445.00
$445.00
-
$445.00
Current price
$445.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

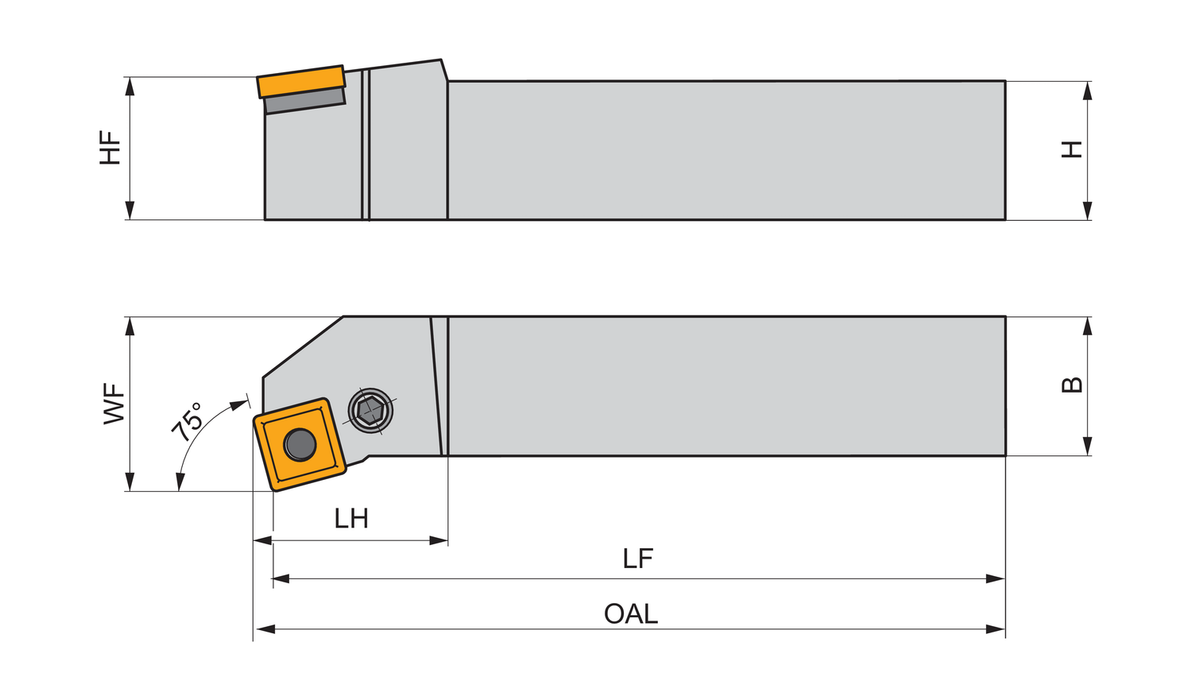

Overall Length (OAL): 12.067
Height: 1.969
Tool Direction: Right
Insert Designation: ["SN.. 2509.."]
Functional Length: 11.811
EDP: 6756708
EAN: 3603602920744
MFG Part Number: 6756708
