SCLCR 1010 E 06
SKU DOR6756745
Primary Use:

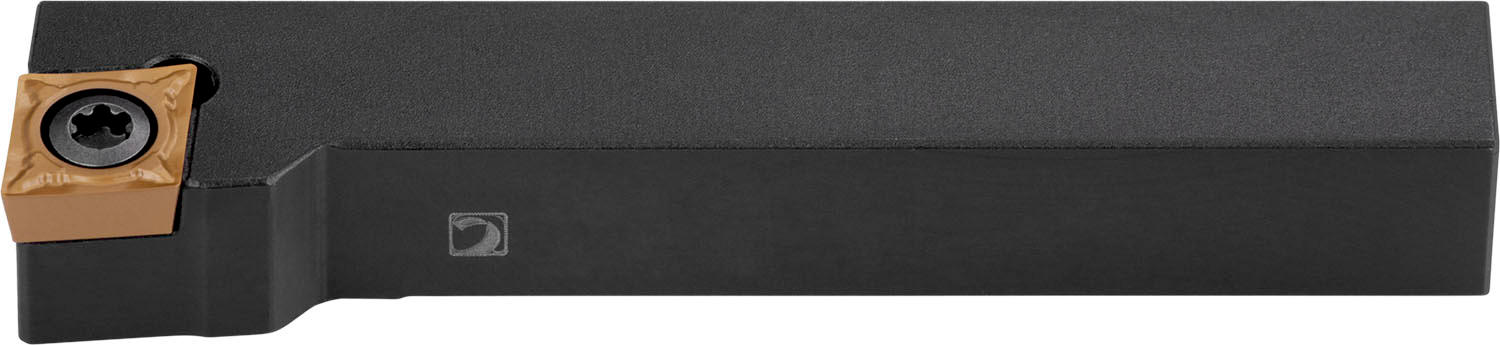

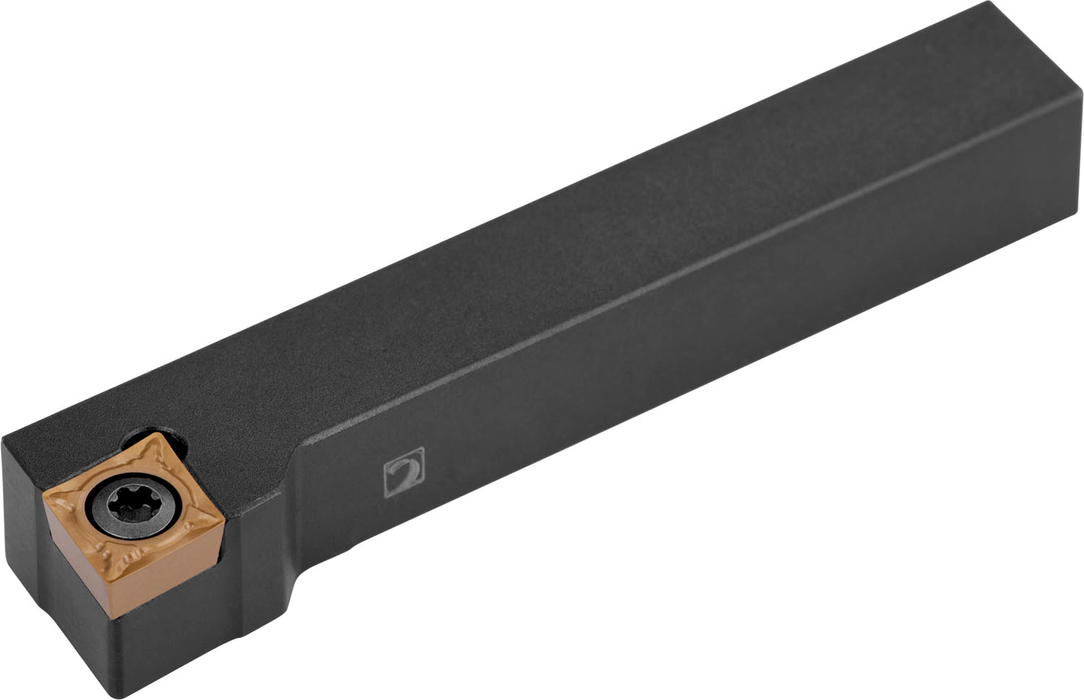

Screw clamp turning tool for holding a 80° rhombus positive insert with an inscribed circle diameter of 6.35mm, 2.38mm thick (ISO designation CC.. 0602.. ), right hand 95° side and end cutting with off-set shank, 10mm tool height x 10mm width x 70mm long for chamfering, taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$151.00
-
Original price
$151.00
Original price
$151.00
$151.00
-
$151.00
Current price
$151.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

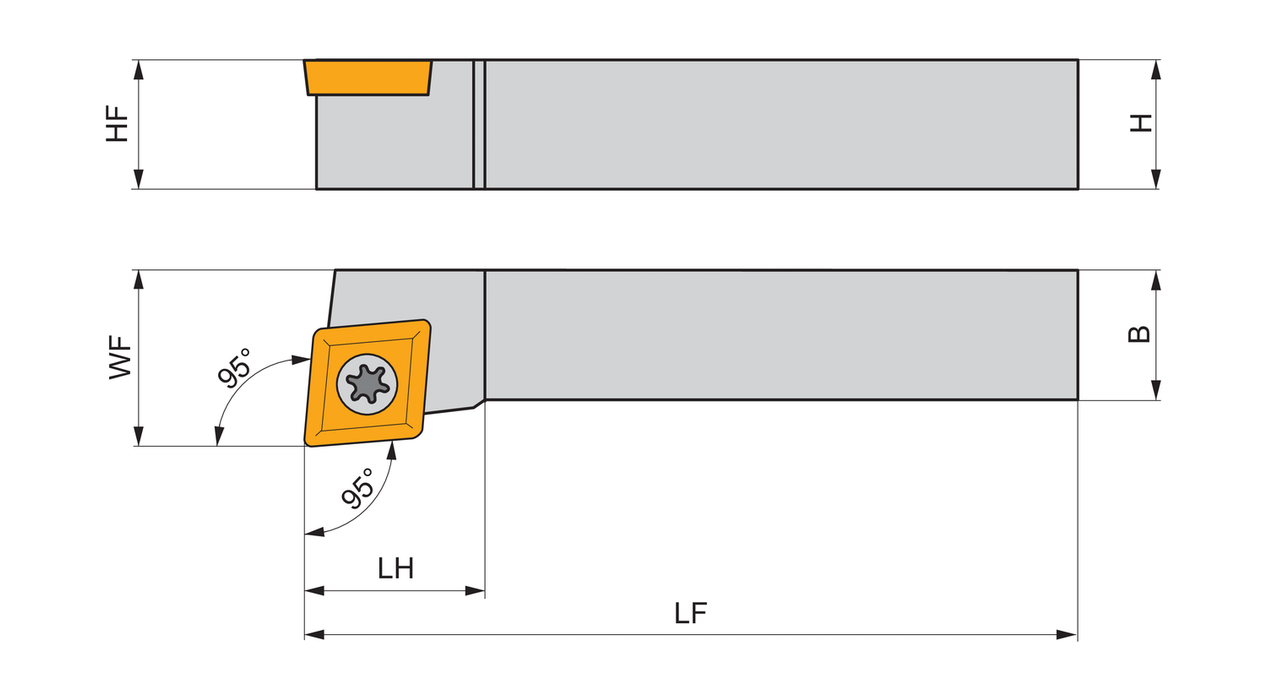

Height: 0.394
Tool Direction: Right
Insert Designation: ["CC.. 0602.."]
Functional Length: 2.756
EDP: 6756745
EAN: 3603602921116
MFG Part Number: 6756745
