SDJCR 0808 D 07
SKU DOR6756781
Primary Use:

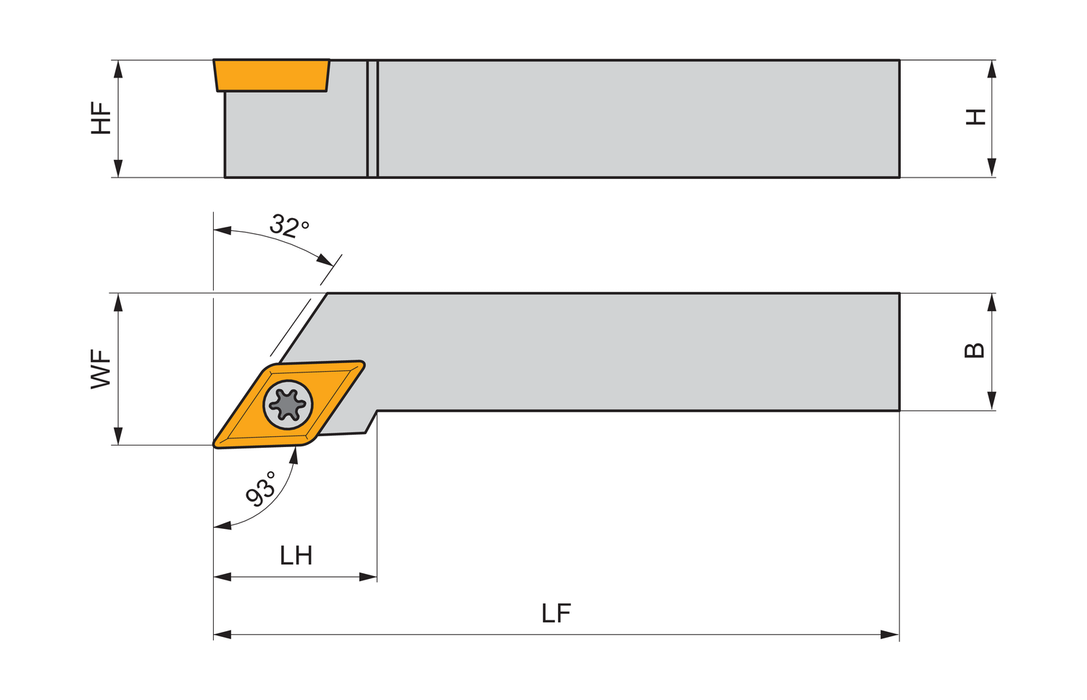

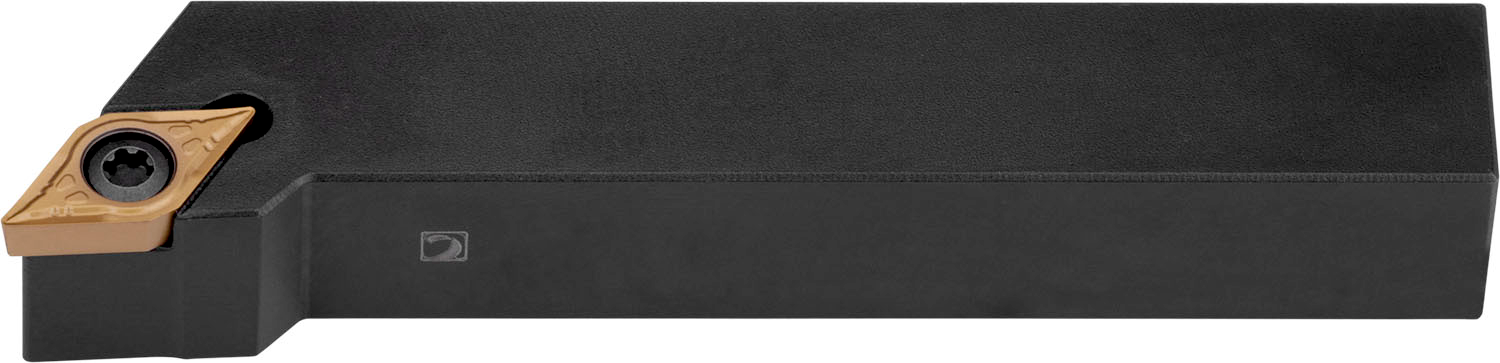

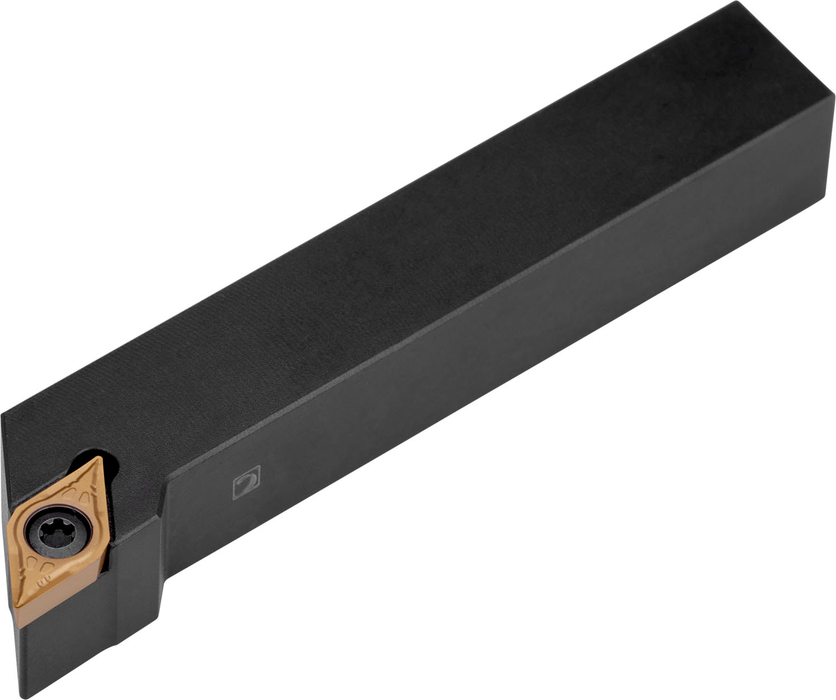

Screw clamp turning tool for holding a 55° rhombus positive insert with an inscribed circle diameter of 6.35mm, 2.38mm thick (ISO designation DC.. 0702.. ), right hand 93° side cutting with off-set shank, 8mm tool height x 8mm width x 60mm long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$151.00
-
Original price
$151.00
Original price
$151.00
$151.00
-
$151.00
Current price
$151.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Height: 0.315
Tool Direction: Left
Insert Designation: ["DC.. 0702.."]
Functional Length: 2.362
EDP: 6756781
EAN: 3603602921475
MFG Part Number: 6756781
