PCKNR 3232 P 19
SKU DOR6757042
Primary Use:
Possible Use:

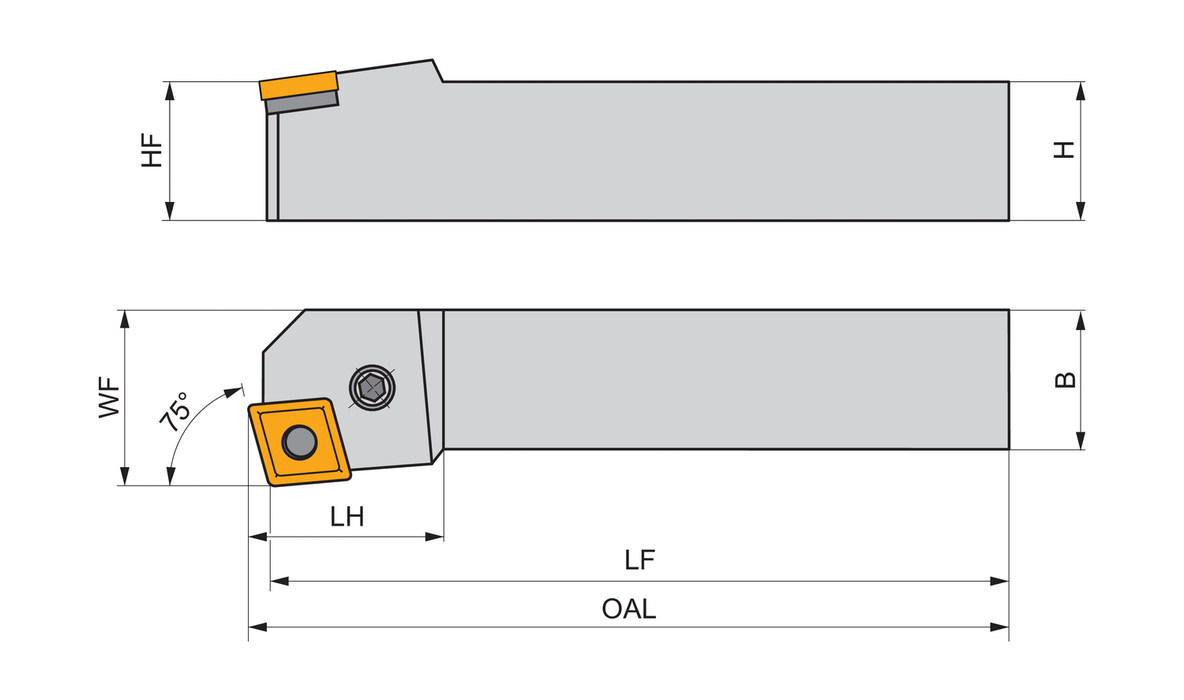

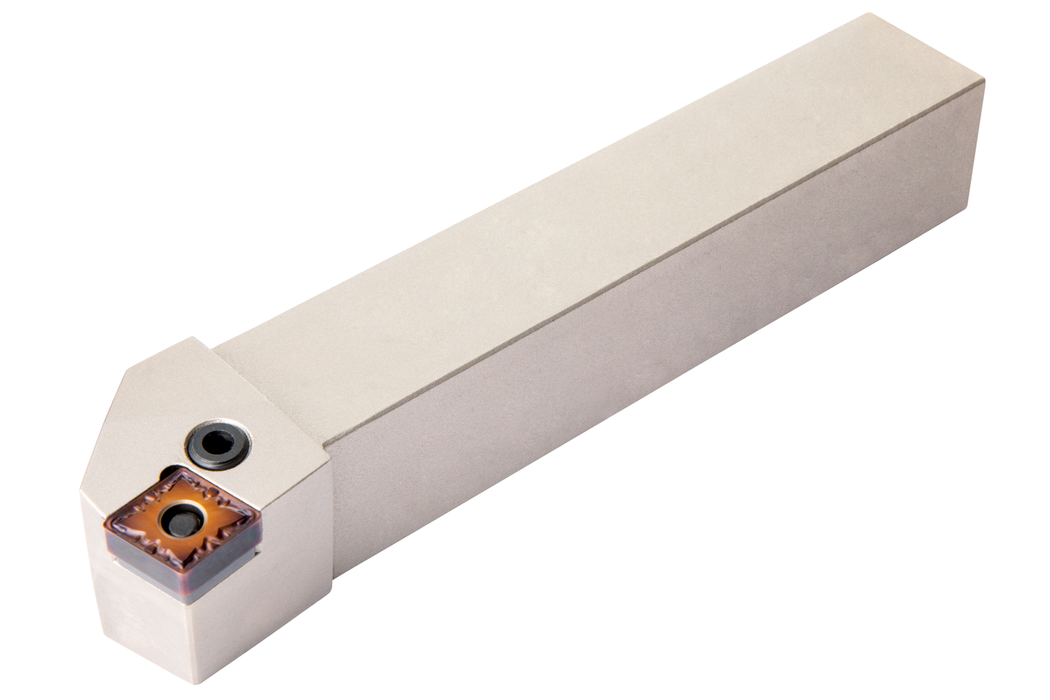

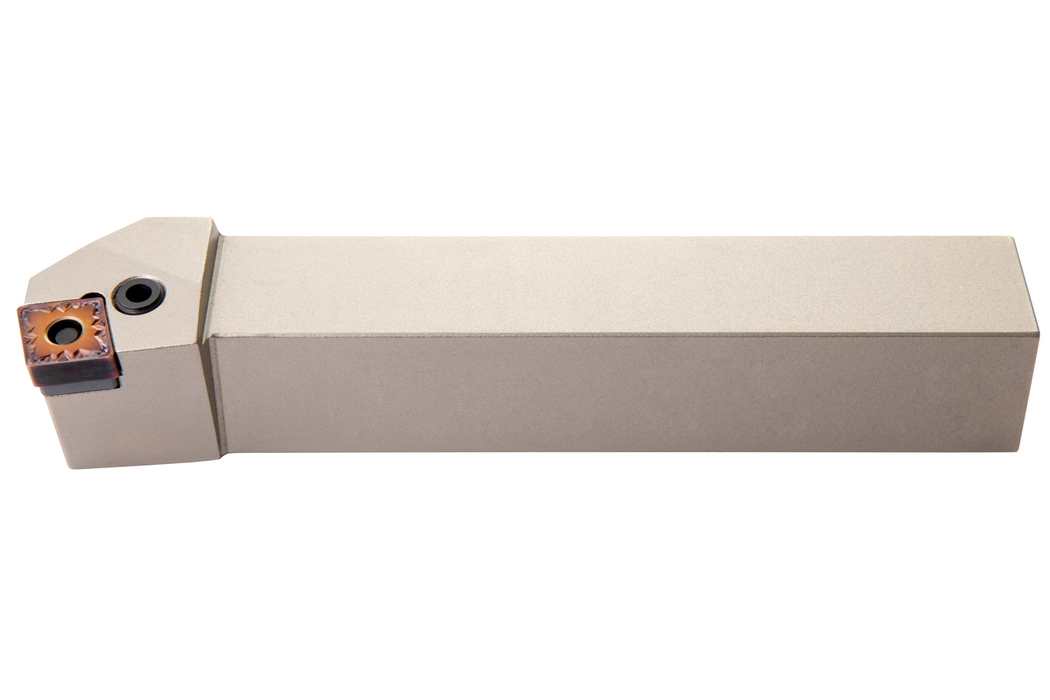

Lever lock turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 19.05mm, 6.35mm thick (ISO designation CN.. 1906.. ), right hand 75° end cutting with off-set shank, 32mm tool height x 32mm width x 170mm long for face turning without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$221.00
-
Original price
$221.00
Original price
$221.00
$221.00
-
$221.00
Current price
$221.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Height: 1.26
Tool Direction: Left
Insert Designation: ["CN.. 1906.."]
Functional Length: 6.693
EDP: 6757042
EAN: 3603602924087
MFG Part Number: 6757042
