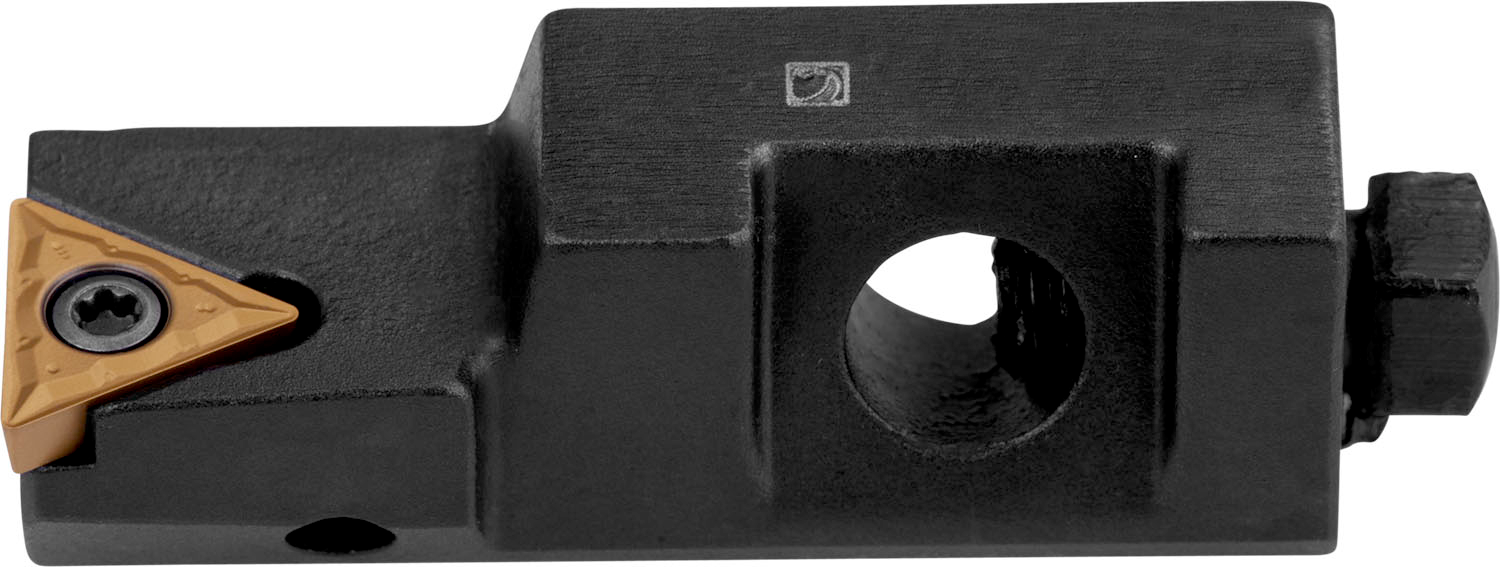

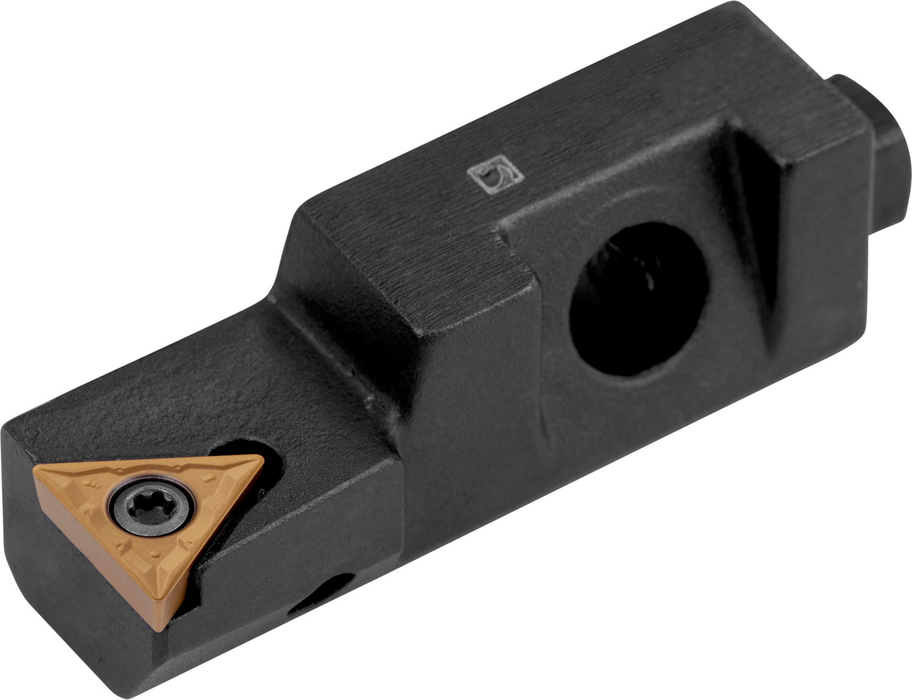

STFCR 10 CA-11
SKU DOR6757053
Primary Use:
ISO Turning cartridge with screw clamp for holding a triangular positive insert with an inscribed circle diameter of 6.35mm, 2.38mm thick (ISO designation TC.. 1102.. ), in accordance with DIN 4985 right hand 90° end cutting with off-set shank for face turning without shoulder as well as taper boring and longitudinal boring without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$169.00
-
Original price
$169.00
Original price
$169.00
$169.00
-
$169.00
Current price
$169.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

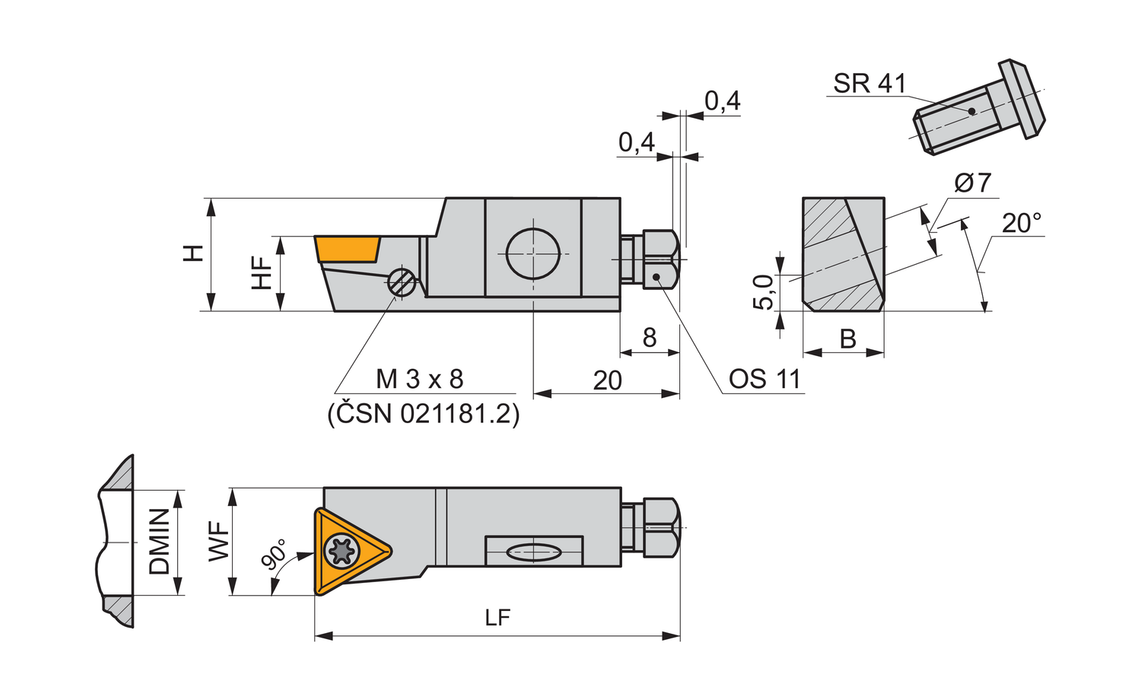

Height: 0.591
Minimum Bore: 1.575
Tool Direction: Right
Functional Length: 1.969
EDP: 6757053
EAN: 3603602924193
MFG Part Number: 6757053
