PTGNL 1616 H 16
SKU DOR6757074
Primary Use:
Possible Use:

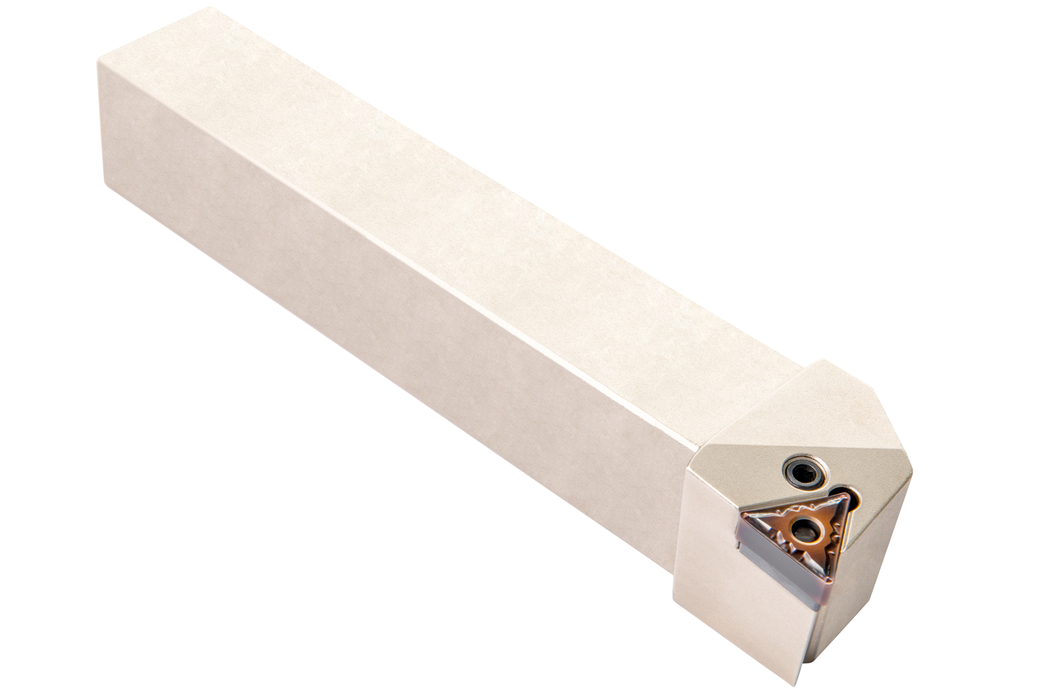

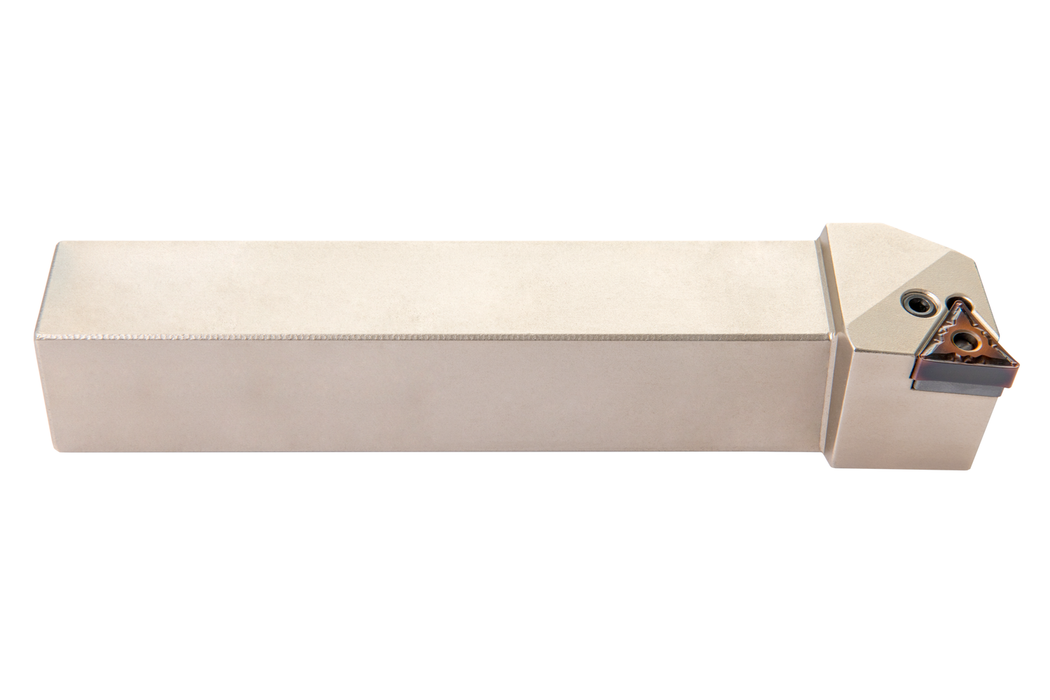

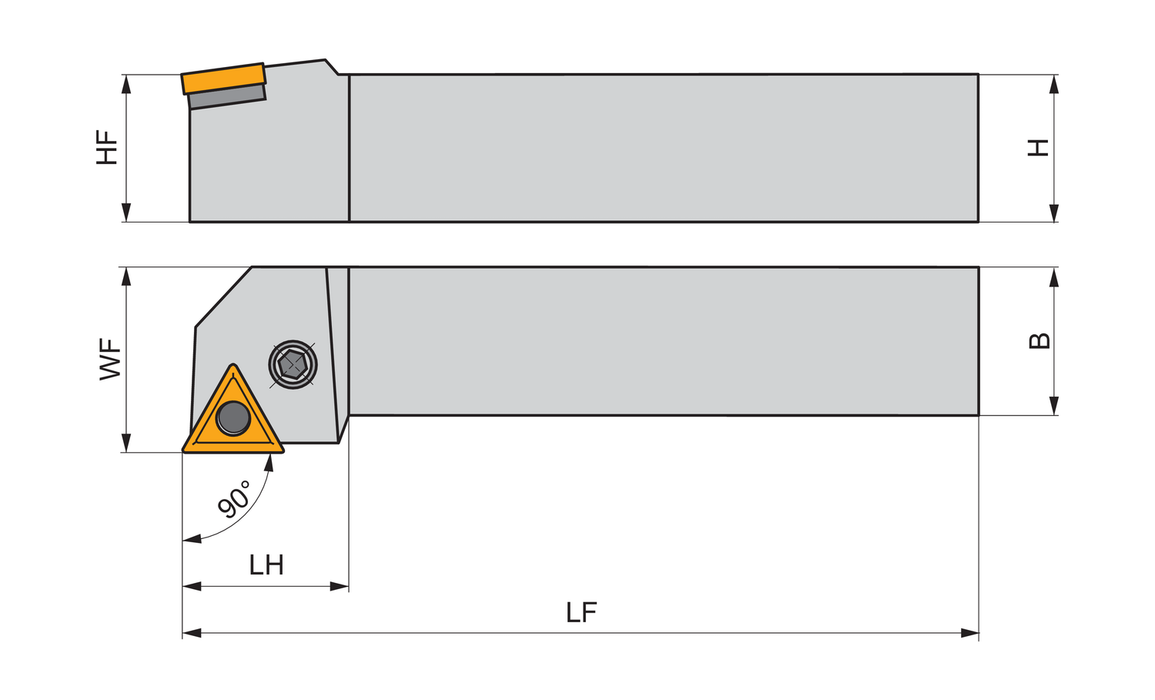

Lever lock turning tool for holding a triangular negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation TN.. 1604.. ), left hand 90° side cutting with off-set shank, 16mm tool height x 16mm width x 100mm long for taper turning and longitudinal turning without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$140.00
-
Original price
$140.00
Original price
$140.00
$140.00
-
$140.00
Current price
$140.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Height: 0.63
Tool Direction: Right
Insert Designation: ["TN.. 1604.."]
Functional Length: 3.937
EDP: 6757074
EAN: 3603602924407
MFG Part Number: 6757074
