PCBNL 3232 P 16
SKU DOR6757083
Primary Use:
Possible Use:

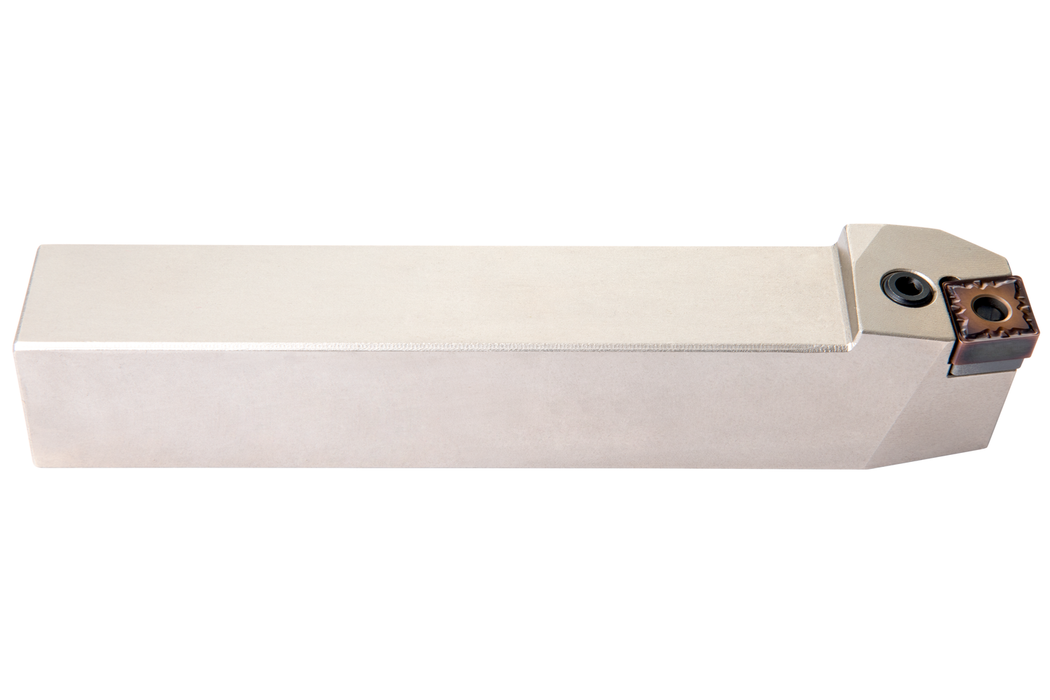

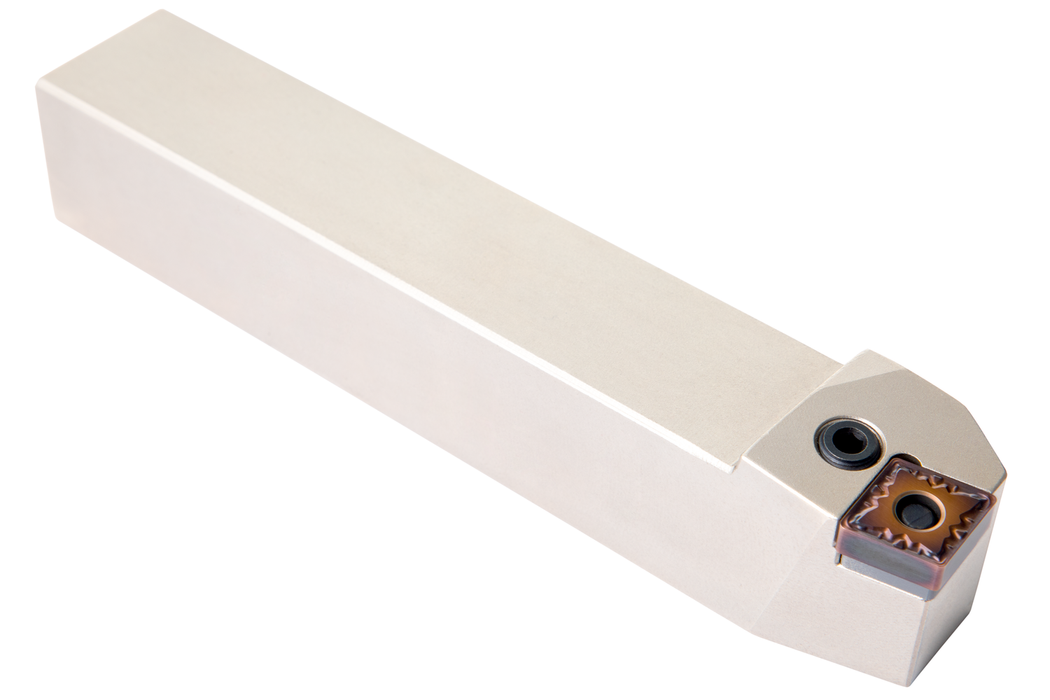

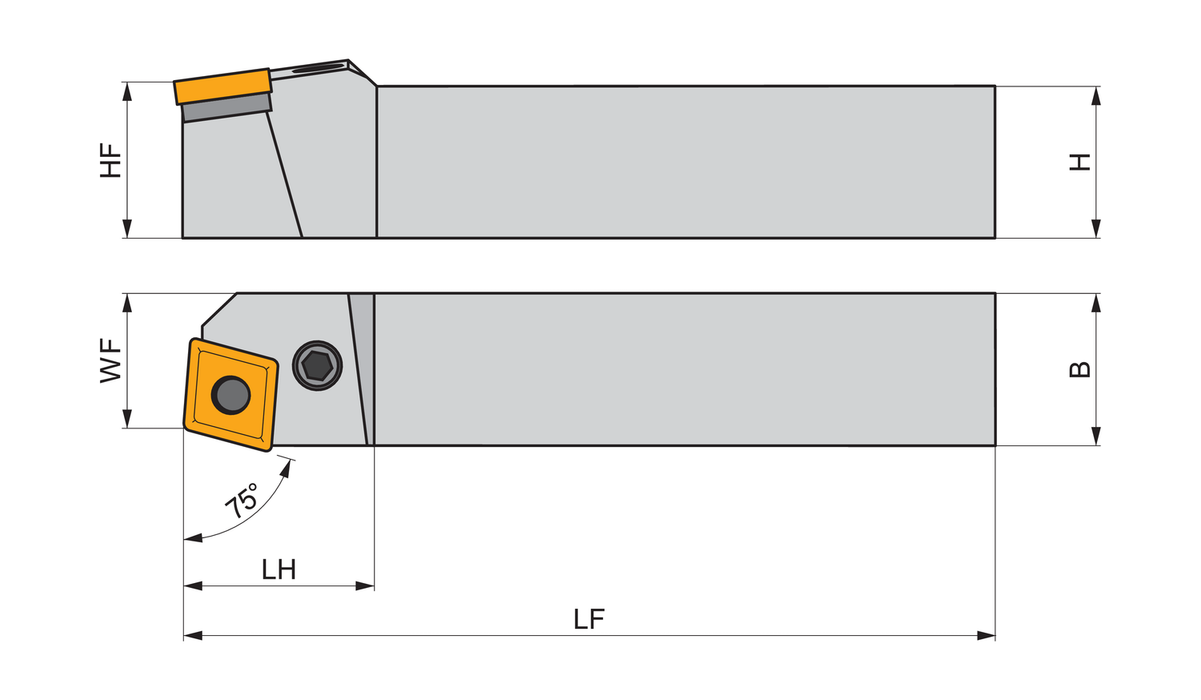

Lever lock turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 15.575mm, 6.35mm thick (ISO designation CN.. 1606.. ), left hand 75° side cutting with straight shank, 32mm tool height x 32mm width x 170mm long for taper turning and longitudinal turning without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$221.00
-
Original price
$221.00
Original price
$221.00
$221.00
-
$221.00
Current price
$221.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Height: 1.26
Tool Direction: Right
Insert Designation: ["CN.. 1606.."]
Functional Length: 6.693
EDP: 6757083
EAN: 3603602924490
MFG Part Number: 6757083
