PDXNL 2525 M 15
SKU DOR6757087
Primary Use:
Possible Use:

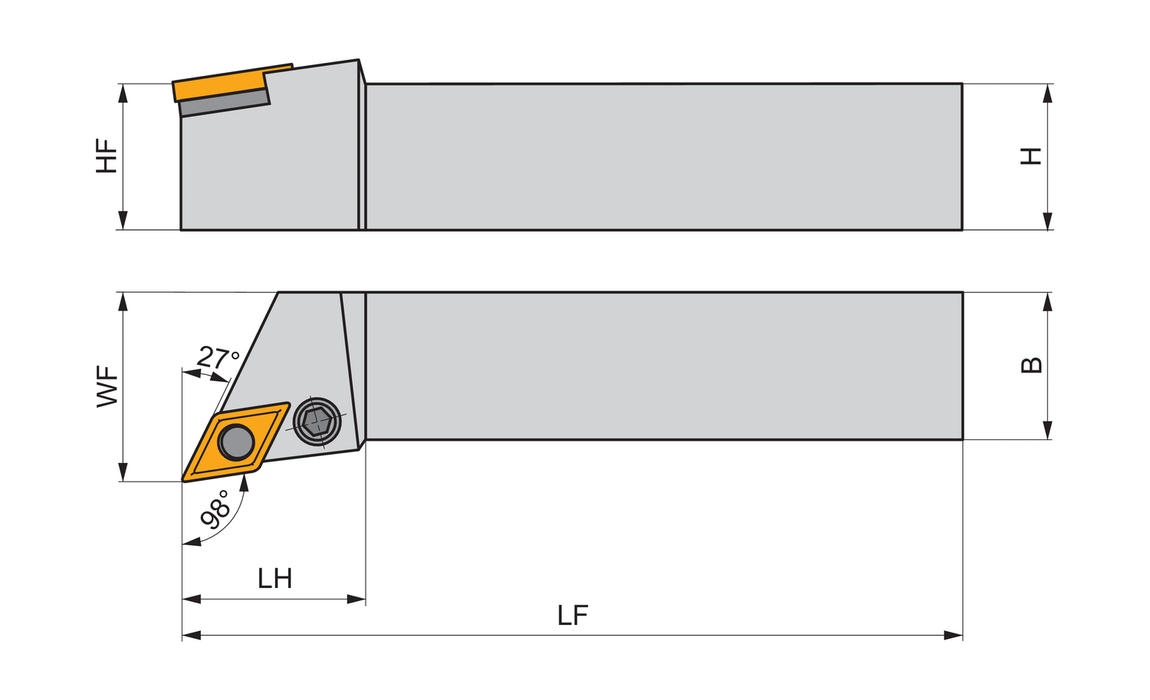

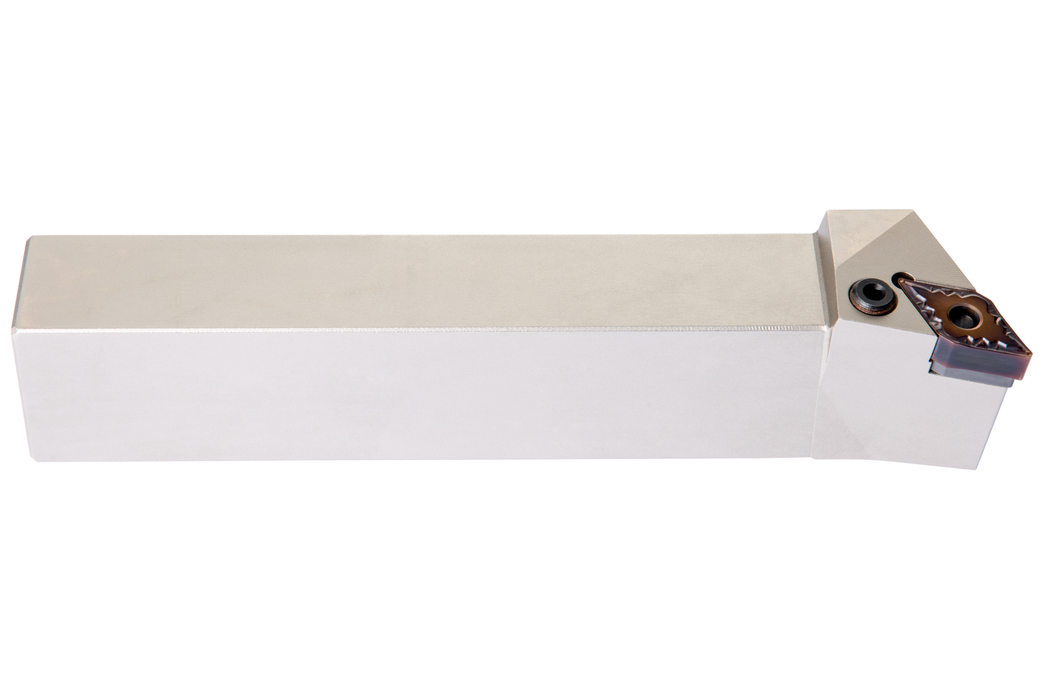

Lever lock turning tool for holding a 55° rhombus negative insert with an inscribed circle diameter of 12.7mm, 6.35mm thick (ISO designation DN.. 1506.. ), left hand special tool style, 25mm tool height x 25mm width x 150mm long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$165.00
-
Original price
$165.00
Original price
$165.00
$165.00
-
$165.00
Current price
$165.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Height: 0.984
Tool Direction: Right
Insert Designation: ["DN.. 1506.."]
Functional Length: 5.906
EDP: 6757087
EAN: 3603602924537
MFG Part Number: 6757087
