SCACL 0808 D 06
SKU DOR6757096
Primary Use:

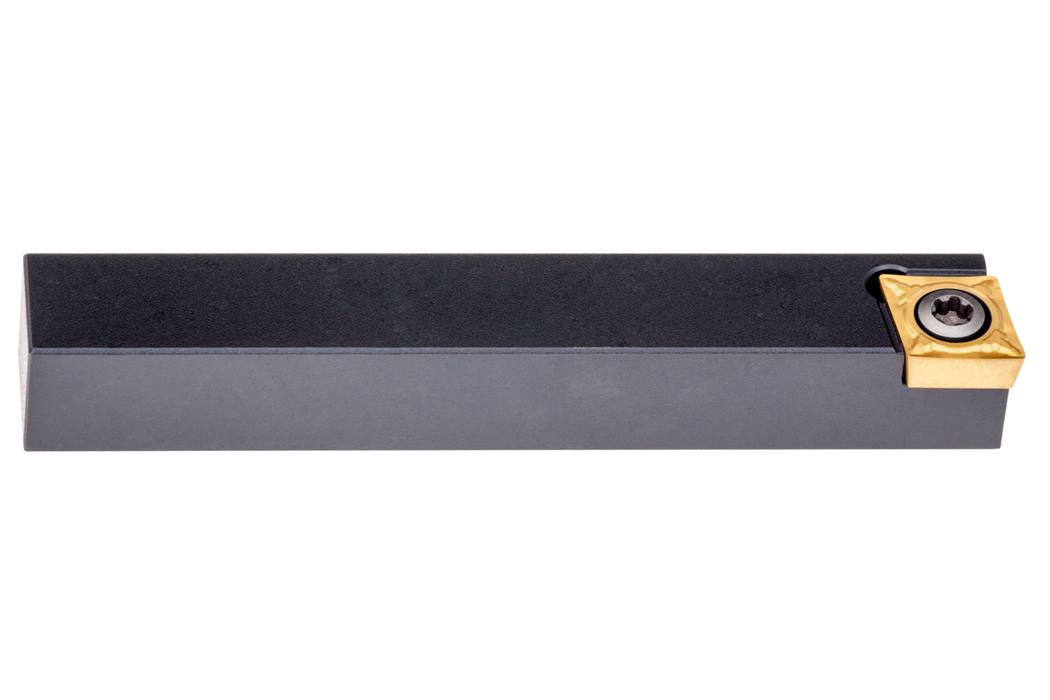

Screw clamp turning tool for holding a 80° rhombus positive insert with an inscribed circle diameter of 6.35mm, 2.38mm thick (ISO designation CC.. 0602.. ), left hand 90° side cutting with straight shank, 8mm tool height x 8mm width x 60mm long for chamfering, taper turning and longitudinal turning with and without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$151.00
-
Original price
$151.00
Original price
$151.00
$151.00
-
$151.00
Current price
$151.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Height: 0.315
Tool Direction: Right
Insert Designation: ["CC.. 0602.."]
Functional Length: 2.362
EDP: 6757096
EAN: 3603602924629
MFG Part Number: 6757096
