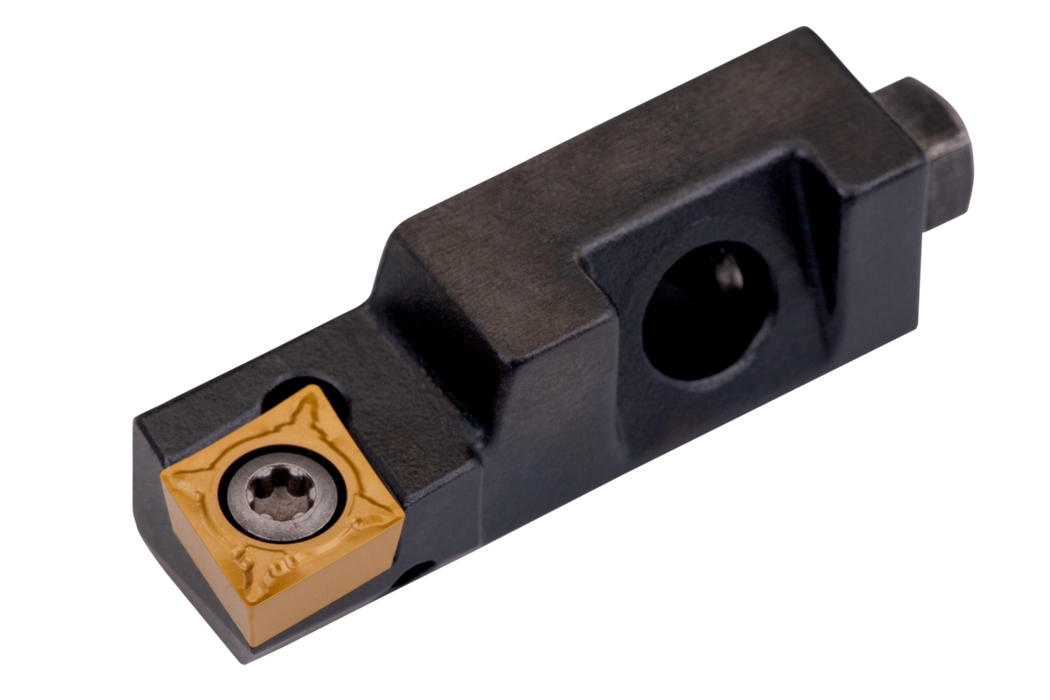

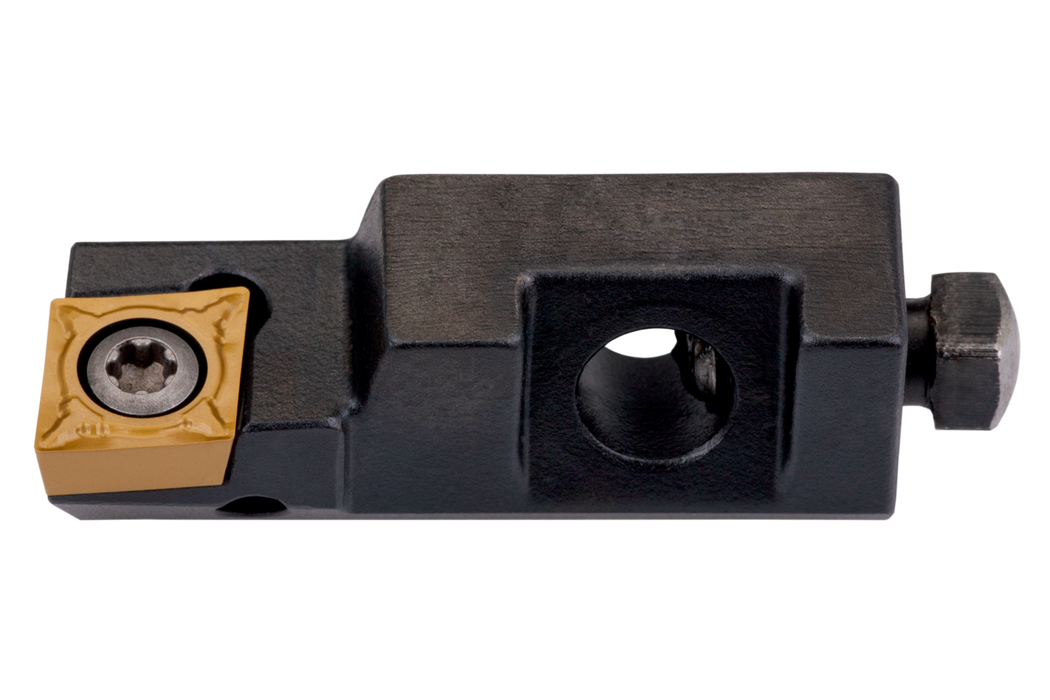

SCLCR 10 CA-09

SCLCR 10 CA-09

SKU DOR6757109
by Dormer Pramet
Primary Use:

ISO Turning cartridge with screw clamp for holding a 80° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation CC.. 09T3.. ), in accordance with DIN 4985 right hand 95° side and end cutting with off-set shank for chamfering, taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder as well as taper boring and longitudinal boring with and without shoulder

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$169.00 - $169.00
$169.00
$169.00 - $169.00
$169.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

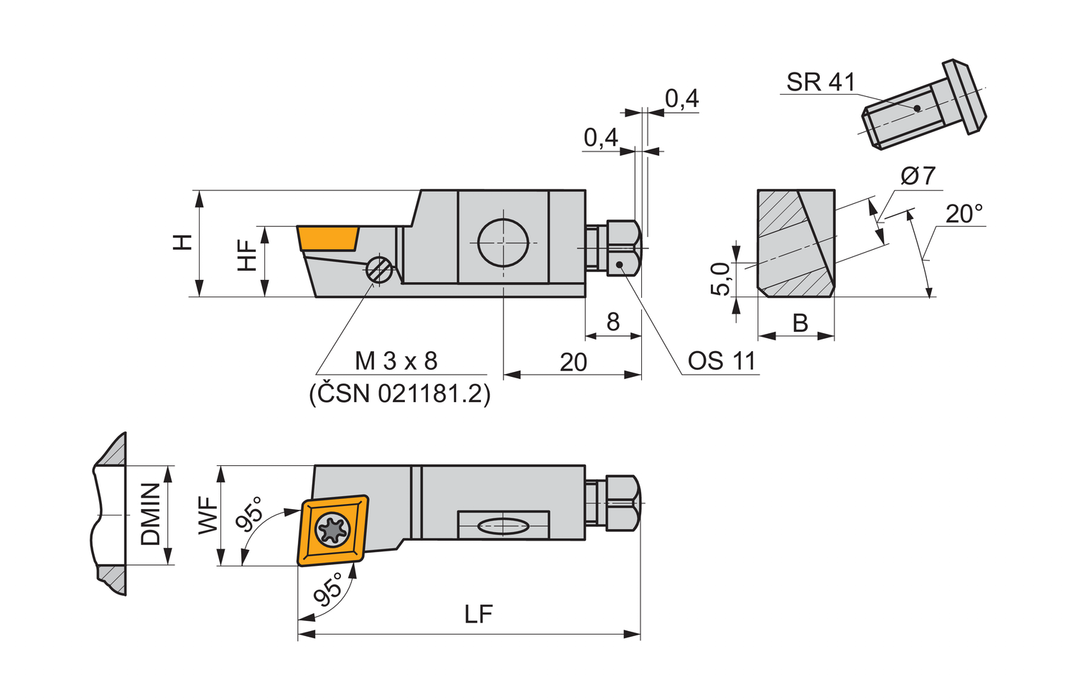

Height: 0.591

Minimum Bore: 1.575

Tool Direction: Left

Functional Length: 1.969

EDP: 6757109

EAN: 3603602924759

MFG Part Number: 6757109
