A50U-PWLNR 08
A50U-PWLNR 08
A50U-PWLNR 08

A50U-PWLNR 08

SKU DOR6757124
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$608.00 CAD - $608.00 CAD
$608.00 CAD
$608.00 CAD - $608.00 CAD
$608.00 CAD

Sold in packs of: 1

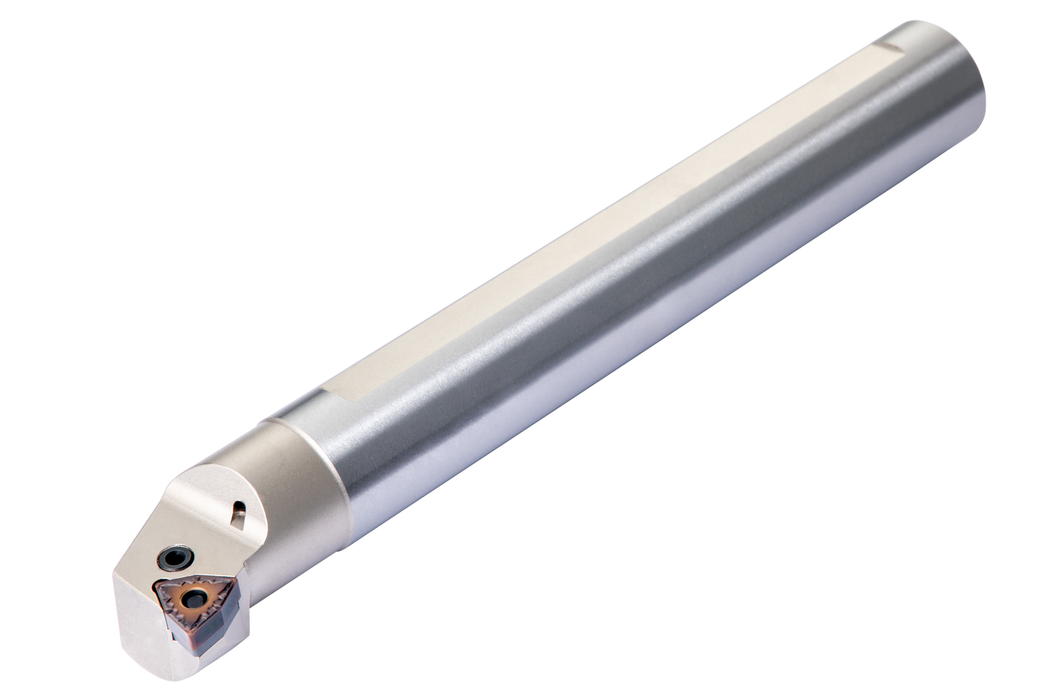

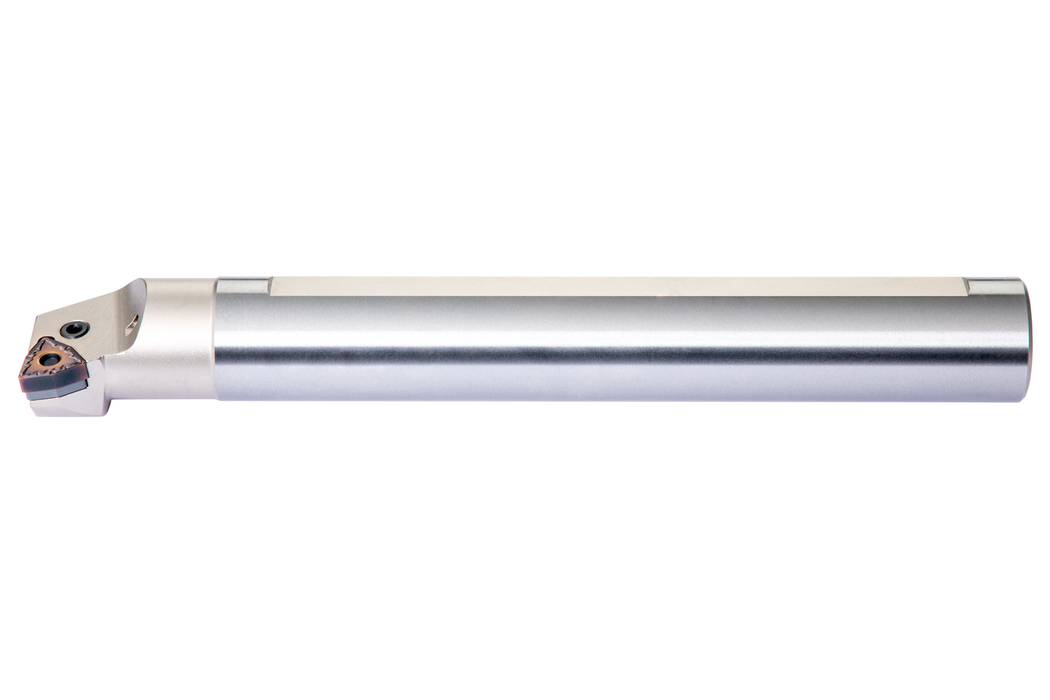

Lever lock boring bar for holding a 80° trigon negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation WN.. 0804.. ), right hand 95° side and end cutting with off-set shank, steel with coolant hole, 50mm diameter x 350mm long for taper boring and longitudinal boring with and without shoulder

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A50U-PWLNR 08
Product Number6757124
Product FamilyPWLN(RL) INT

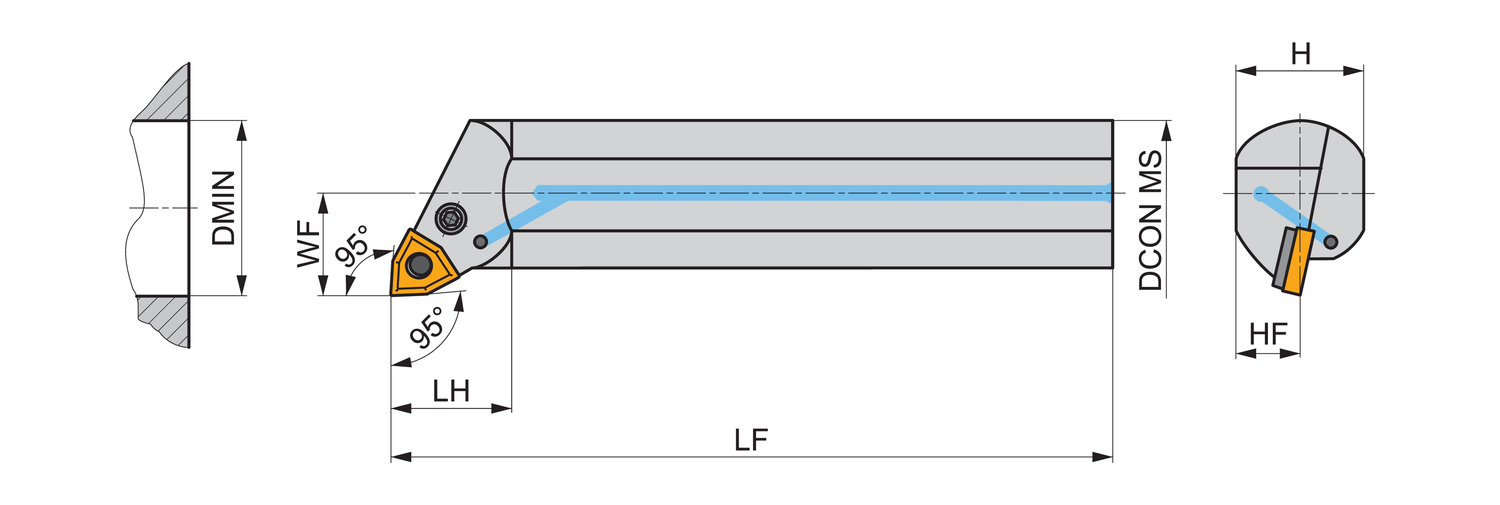

Dimensions
Functional Length — in (LF)13.78"
Functional Length — mm (LF)350.0 mm
Connection Dia. — in (DCON)1.969"
Connection Dia. — mm (DCON)50.0 mm
Shank Height — mm (H)1.85 mm
Min. Bore Dia. — in (DMIN)2.402"
Tool Information
Direction of ToolLeft
Through Coolant Yes
Reference Numbers
EDP Number6757124
EAN3603602924902
File Type Download
A50U-PWLNR 08 — 3D Model STP Download
A50U-PWLNR 08 — 2D Model DXF Download
A50U-PWLNR 08 — Line Drawing PDF Download
