PRDCN 3225 P 16
SKU DOR6757144
Primary Use:

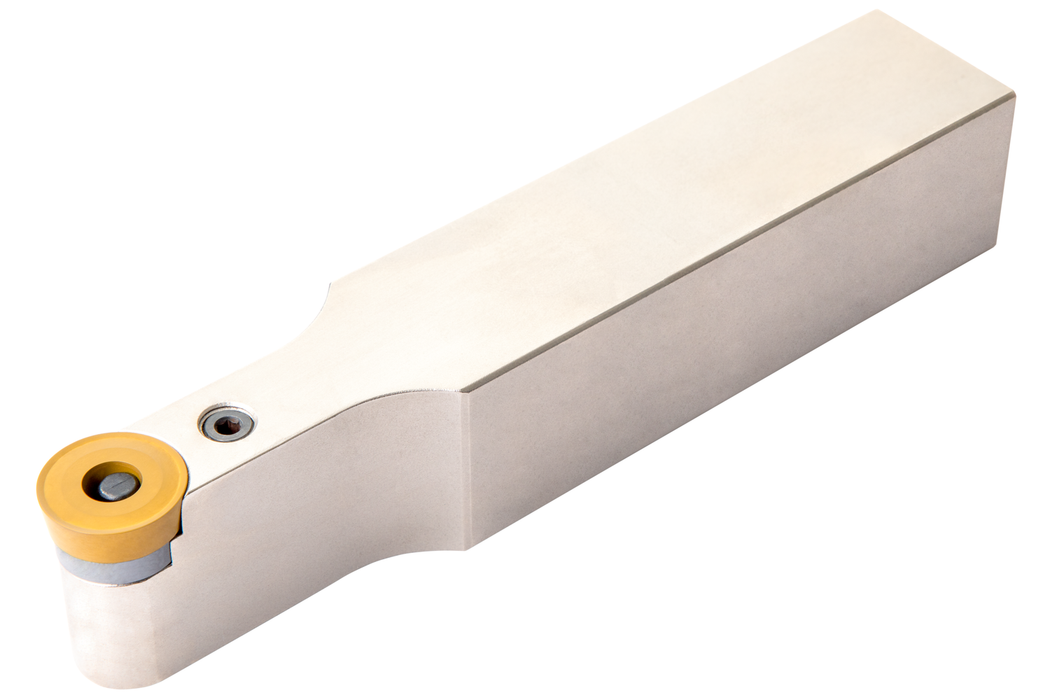

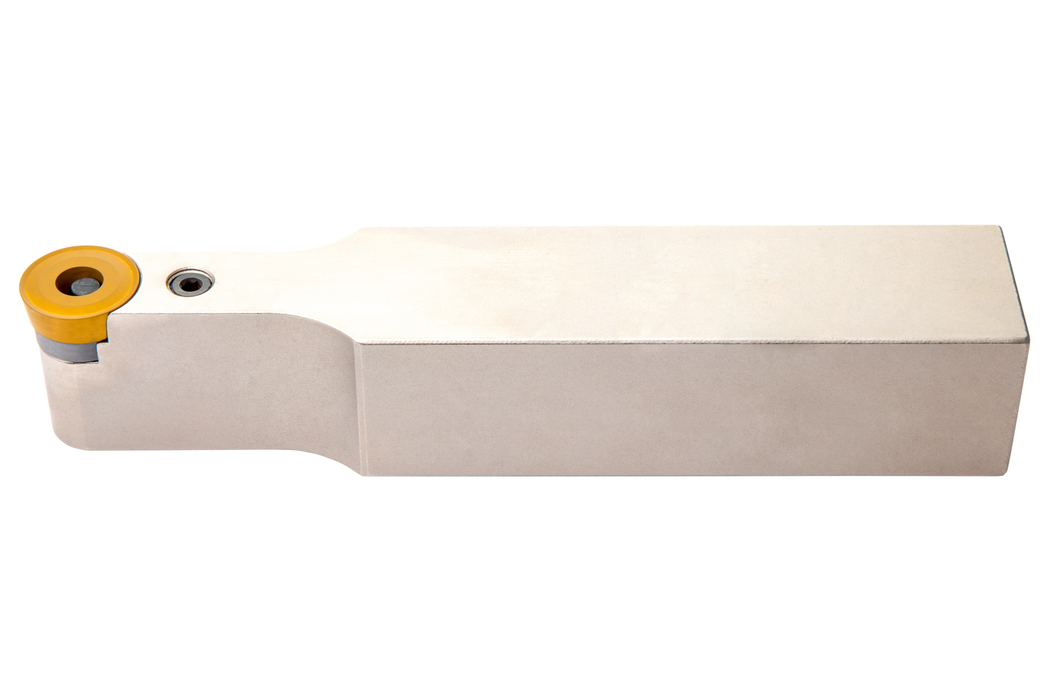

Lever lock turning tool for holding a round positive insert with a diameter of 16mm, 6.35mm thick (ISO designation RCMX 1606MO ), neutral hand side and end cutting with straight shank, 32mm tool height x 25mm width x 170mm long for taper turning, single and multi-directional copy turning and longitudinal turning without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$180.00
-
Original price
$180.00
Original price
$180.00
$180.00
-
$180.00
Current price
$180.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

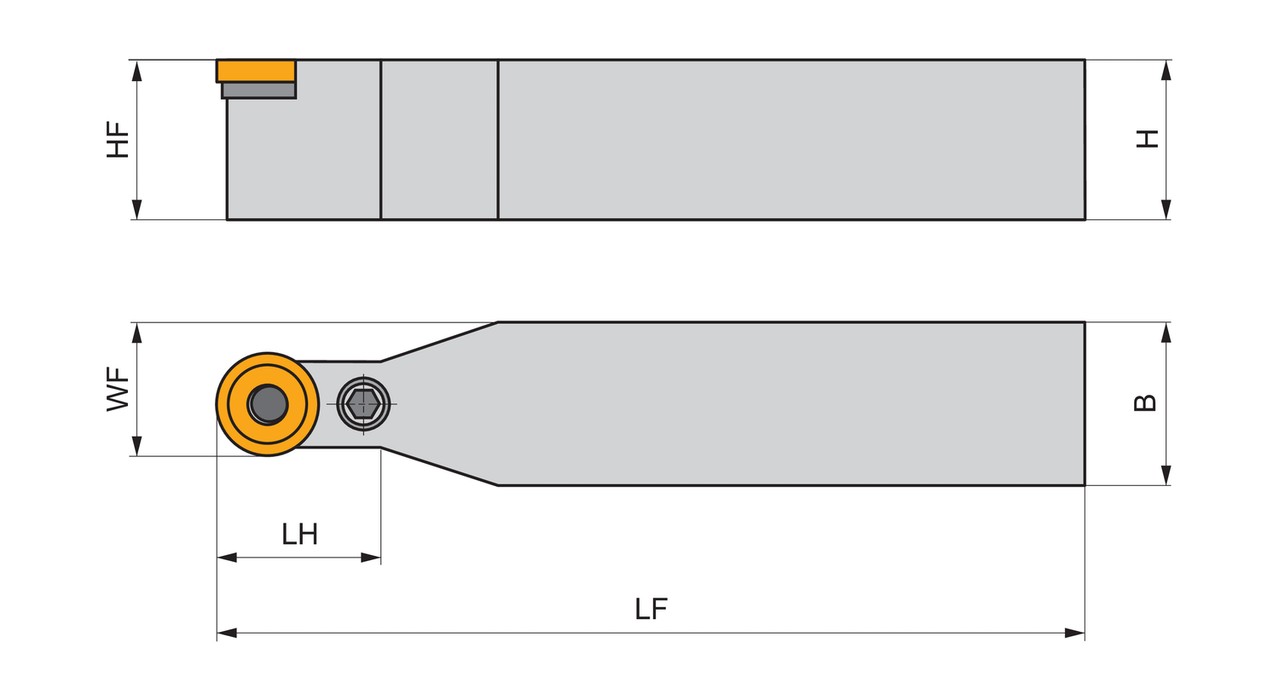

Height: 1.26
Tool Direction: Left
Insert Designation: ["RCMX 1606MO"]
Functional Length: 6.693
EDP: 6757144
EAN: 3603602925107
MFG Part Number: 6757144
