A50U-PSKNR 19
SKU DOR6757211
Primary Use:
Possible Use:

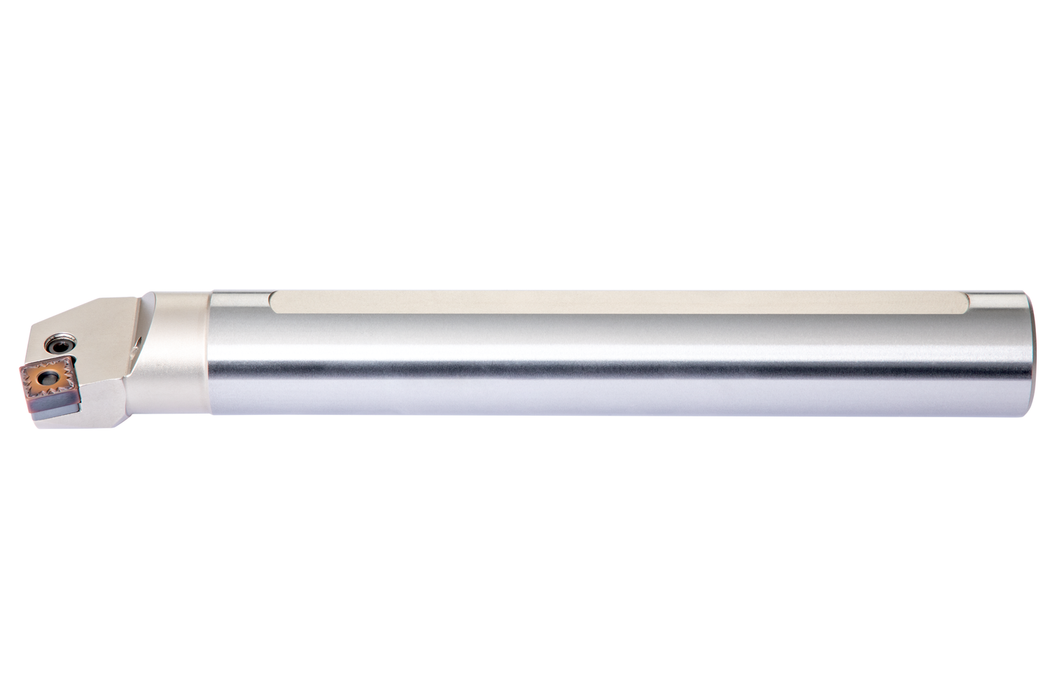

Lever lock boring bar for holding a square negative insert with an inscribed circle diameter of 19.05mm, 6.35mm thick (ISO designation SN.. 1906.. ), right hand 75° end cutting with off-set shank, steel with coolant hole, 50mm diameter x 350mm long for taper boring and longitudinal boring without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$565.00
-
Original price
$565.00
Original price
$565.00
$565.00
-
$565.00
Current price
$565.00
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

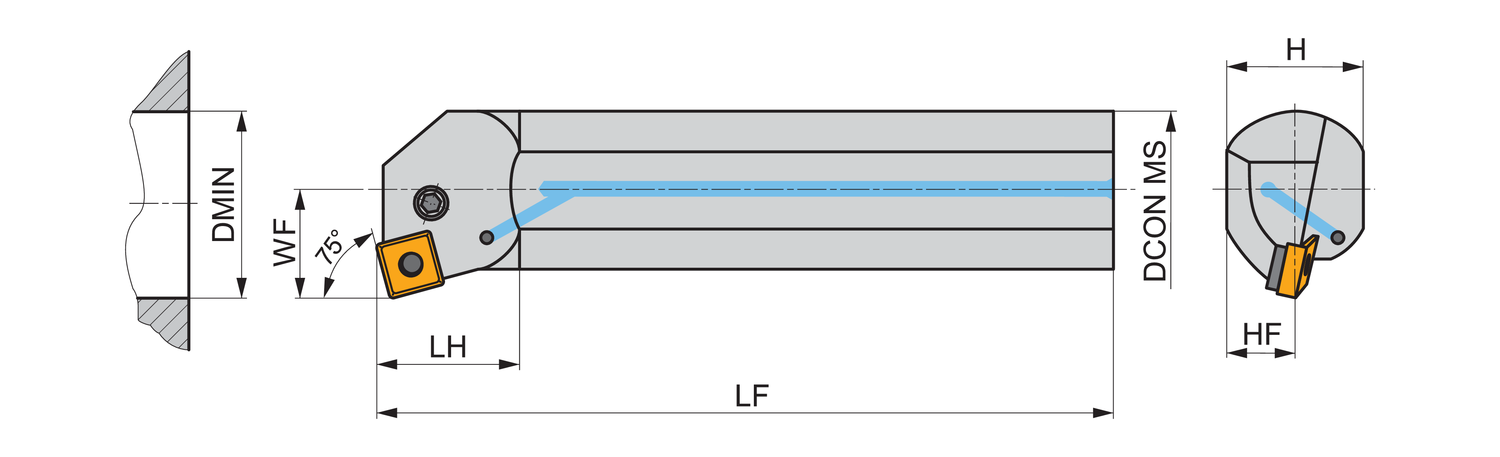

Through Coolant: 1
Connetion Diameter: 1.969
Height: 1.85
Minimum Bore: 2.48
Tool Direction: Right
Insert Designation: ["SN.. 1906.."]
Functional Length: 13.78
EDP: 6757211
EAN: 3603602925671
MFG Part Number: 6757211
