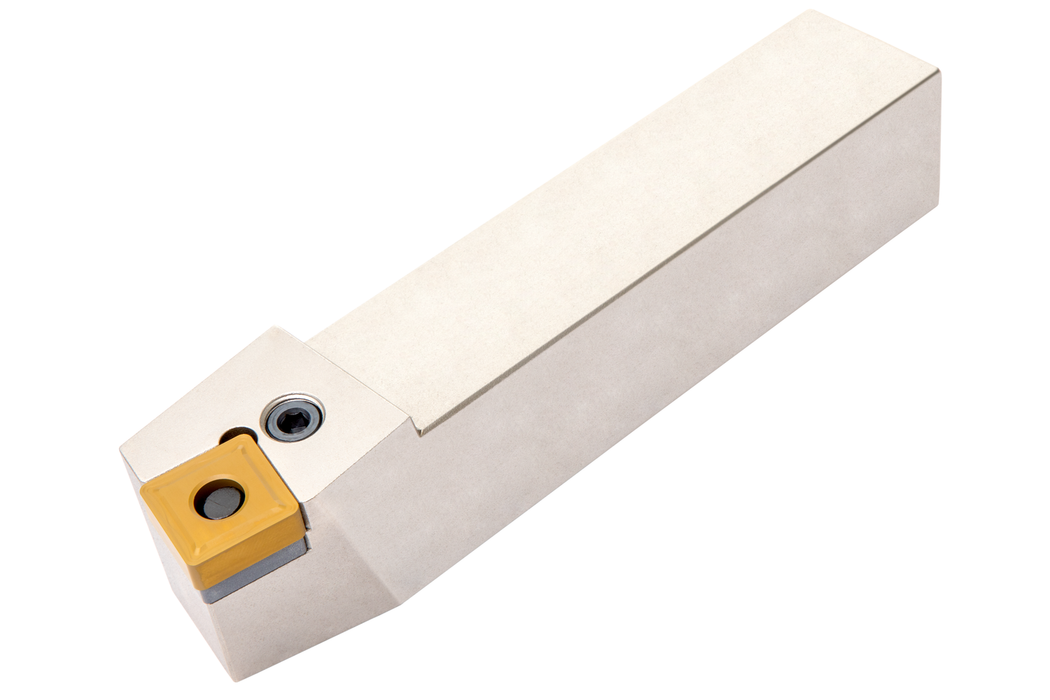

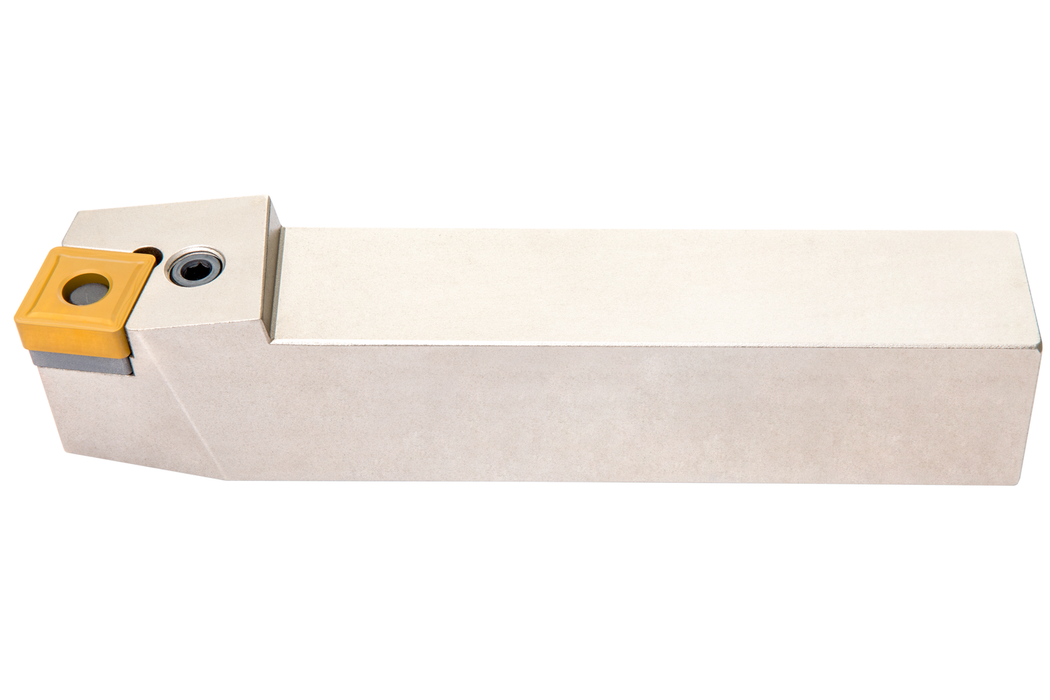

PSBNR 2525 M 12
SKU DOR6757226
Primary Use:
Possible Use:

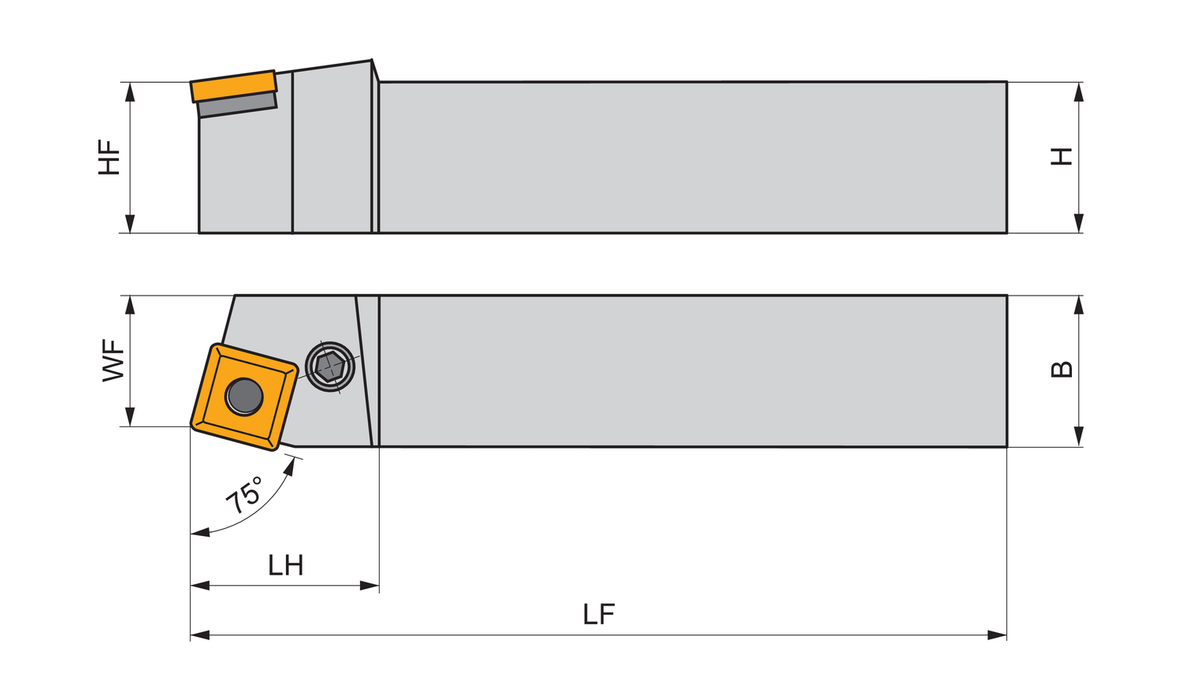

Lever lock turning tool for holding a square negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation SN.. 1204.. ), right hand 75° side cutting with straight shank, 25mm tool height x 25mm width x 150mm long for taper turning and longitudinal turning without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$165.00
-
Original price
$165.00
Original price
$165.00
$165.00
-
$165.00
Current price
$165.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Height: 0.984
Tool Direction: Left
Insert Designation: ["SN.. 1204.."]
Functional Length: 5.906
EDP: 6757226
EAN: 3603602925824
MFG Part Number: 6757226
