PSBNR 4040 S 25
SKU DOR6757238
Primary Use:
Possible Use:

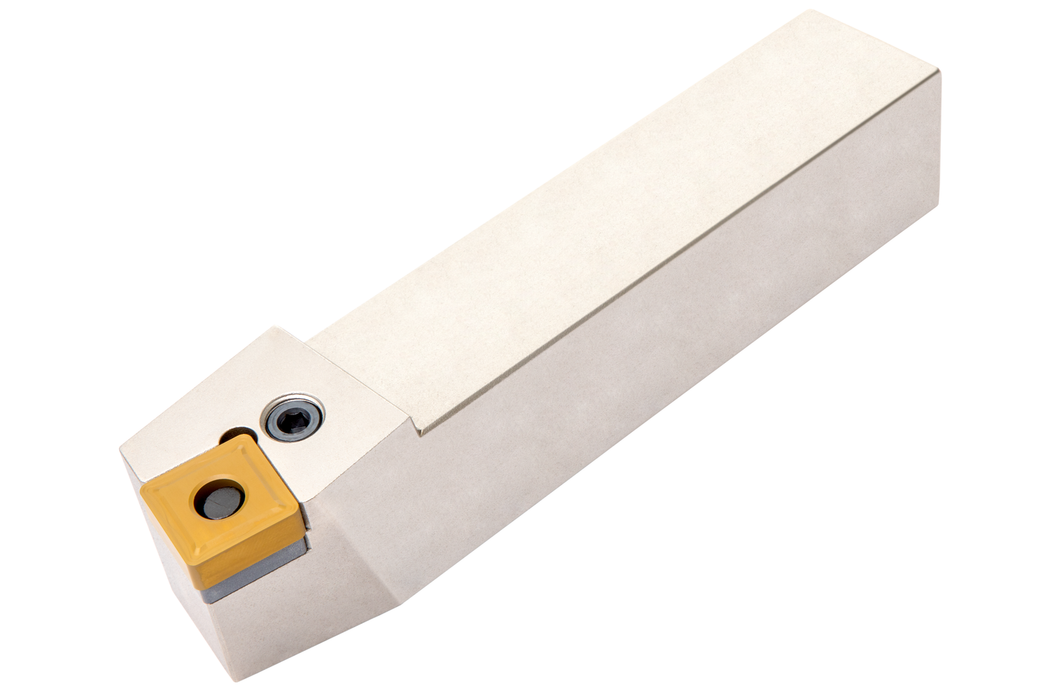

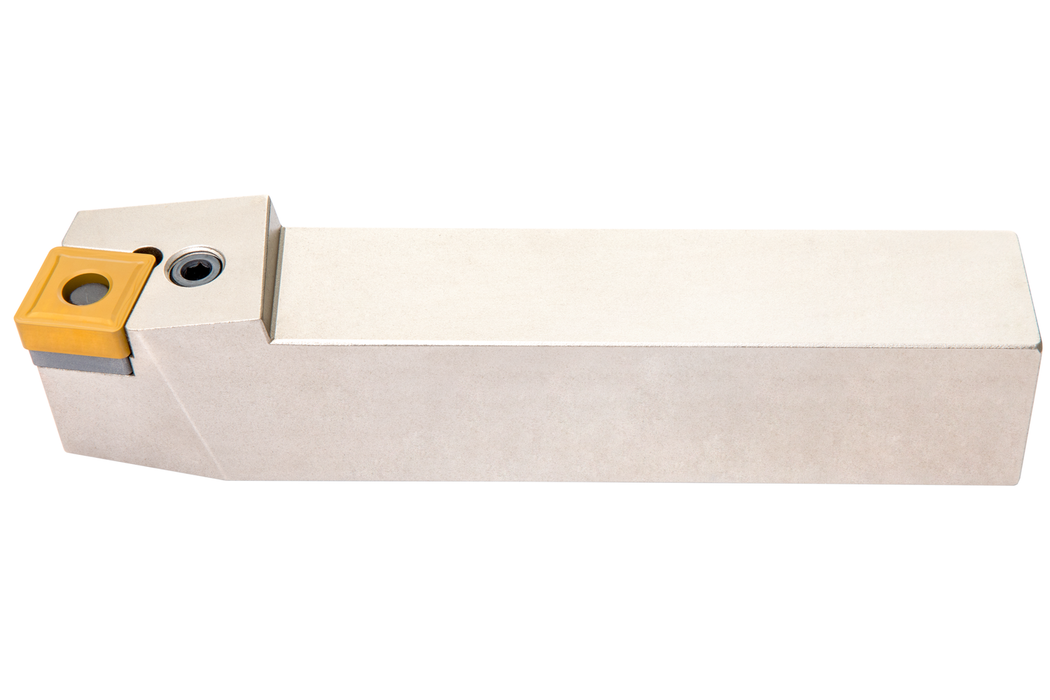

Lever lock turning tool for holding a square negative insert with an inscribed circle diameter of 25.4mm, 7.94mm thick (ISO designation SN.. 2507.. ), right hand 75° side cutting with straight shank, 40mm tool height x 40mm width x 250mm long for taper turning and longitudinal turning without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$295.00
-
Original price
$295.00
Original price
$295.00
$295.00
-
$295.00
Current price
$295.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Height: 1.575
Tool Direction: Left
Insert Designation: ["SN.. 2507.."]
Functional Length: 9.843
EDP: 6757238
EAN: 3603602925947
MFG Part Number: 6757238
