A50U-PSKNR 15
A50U-PSKNR 15
A50U-PSKNR 15

A50U-PSKNR 15

SKU DOR6757310
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$608.00 CAD - $608.00 CAD
$608.00 CAD
$608.00 CAD - $608.00 CAD
$608.00 CAD

Sold in packs of: 1

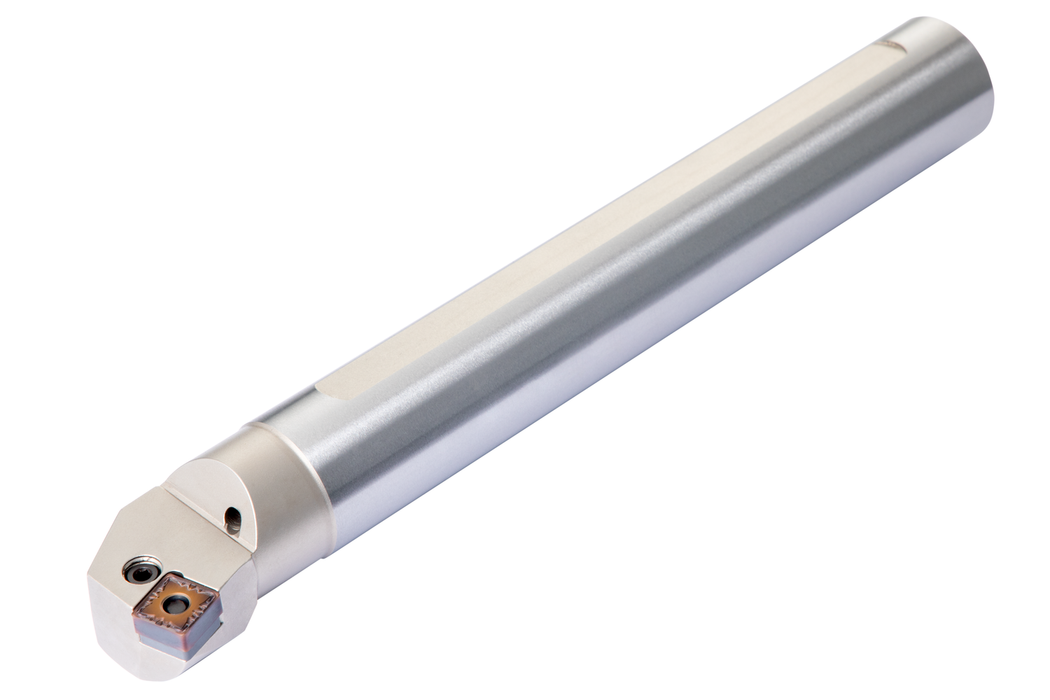

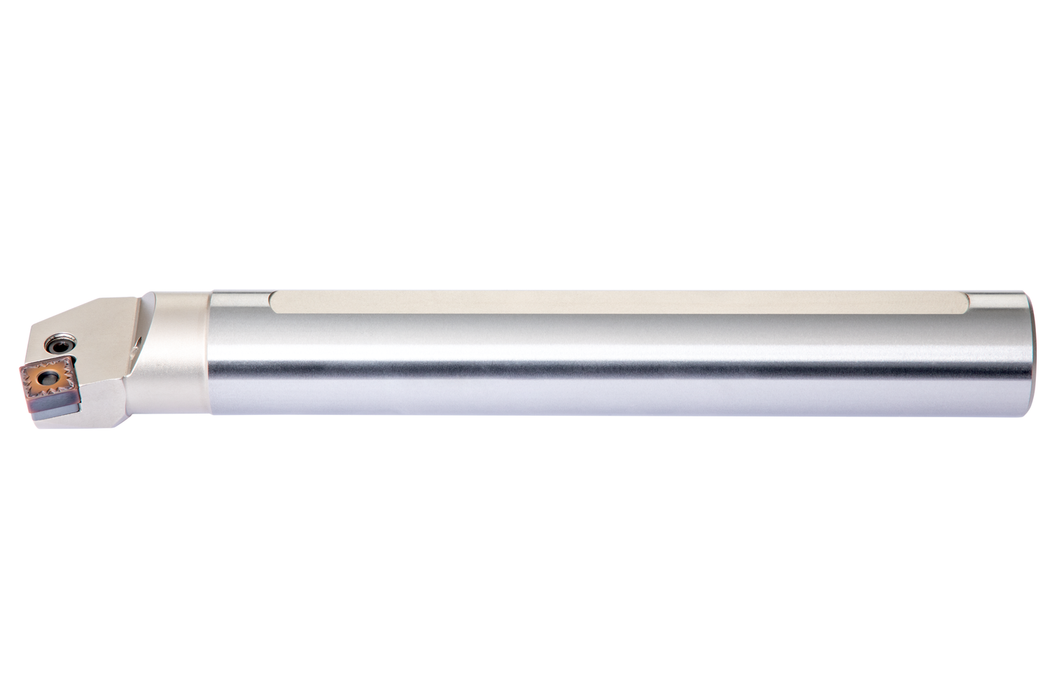

Lever lock boring bar for holding a square negative insert with an inscribed circle diameter of 15.875mm, 6.35mm thick (ISO designation SN.. 1506.. ), right hand 75° end cutting with off-set shank, steel with coolant hole, 50mm diameter x 350mm long for taper boring and longitudinal boring without shoulder

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A50U-PSKNR 15
Product Number6757310
Product FamilyPSKN(RL) INT

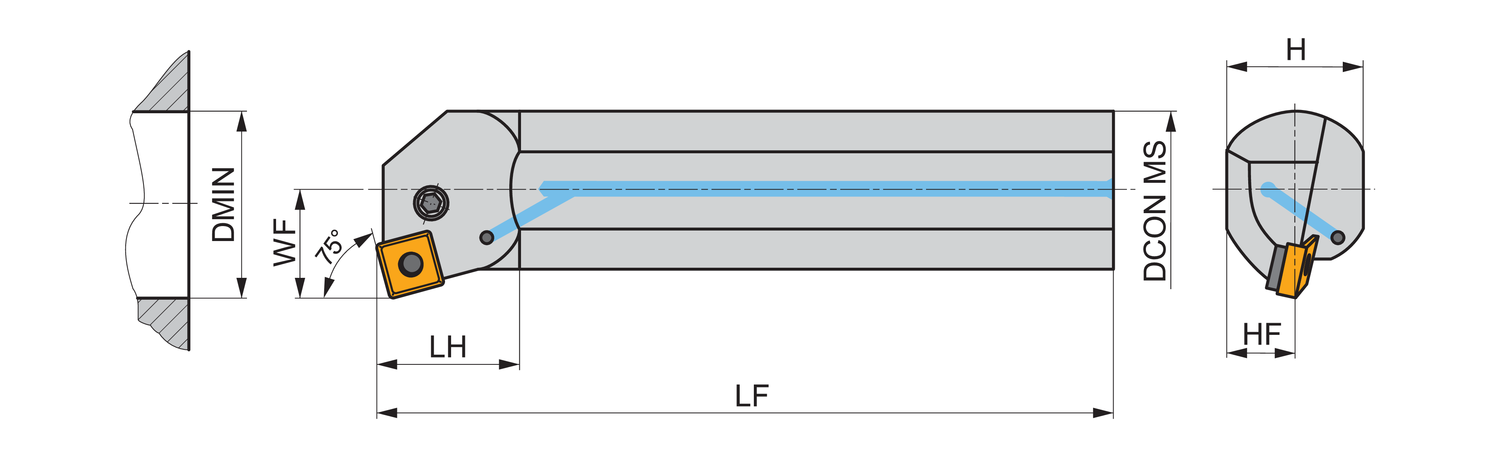

Dimensions
Functional Length — in (LF)13.78"
Functional Length — mm (LF)350.0 mm
Connection Dia. — in (DCON)1.969"
Connection Dia. — mm (DCON)50.0 mm
Shank Height — mm (H)1.85 mm
Min. Bore Dia. — in (DMIN)2.402"
Tool Information
Direction of ToolRight
Through Coolant Yes
Reference Numbers
EDP Number6757310
EAN3603602926661
File Type Download
A50U-PSKNR 15 — 3D Model STP Download
A50U-PSKNR 15 — 2D Model DXF Download
A50U-PSKNR 15 — Line Drawing PDF Download
