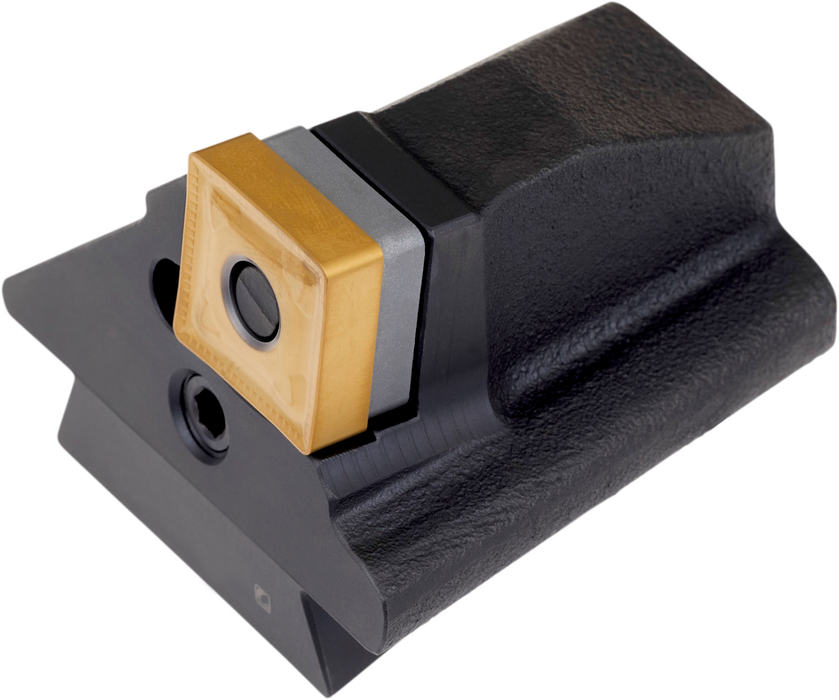

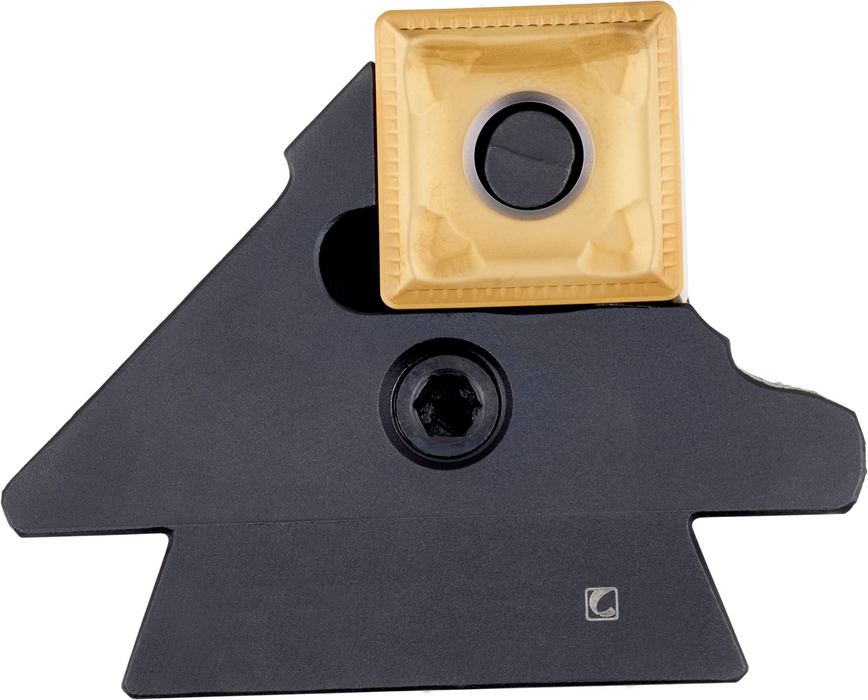

KHP-SSNR 25
SKU DOR6757321
Primary Use:

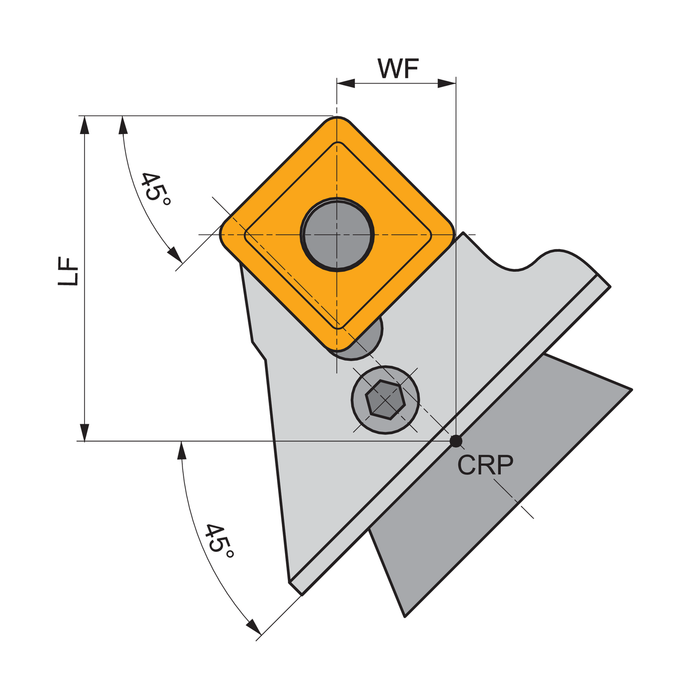

Lever lock modular turning tool cartridge for holding a square negative insert with an inscribed circle diameter of 25.4mm, 7.94mm thick (ISO designation SN.. 2507.. ), assemble with DHKR.. for right hand 45° side cutting with off-set shank for chamfering, taper turning, single and multi-directional copy turning, face turning without shoulder and longitudinal turning without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$453.00
-
Original price
$453.00
Original price
$453.00
$453.00
-
$453.00
Current price
$453.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Tool Direction: Left
Functional Length: 1.772
EDP: 6757321
EAN: 3603602926777
MFG Part Number: 6757321
