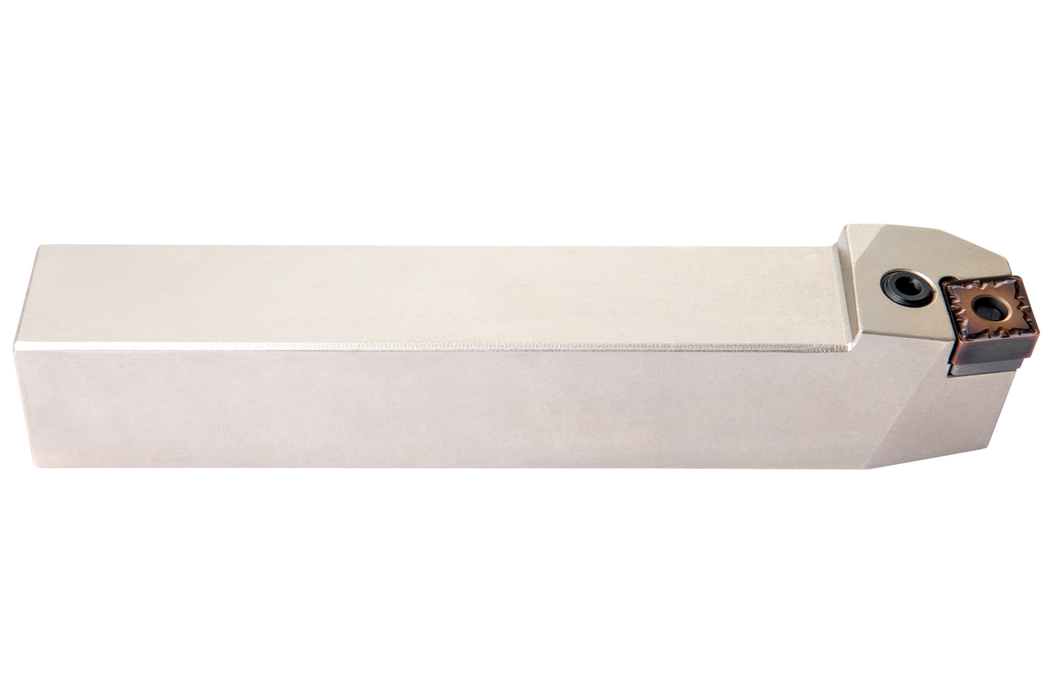

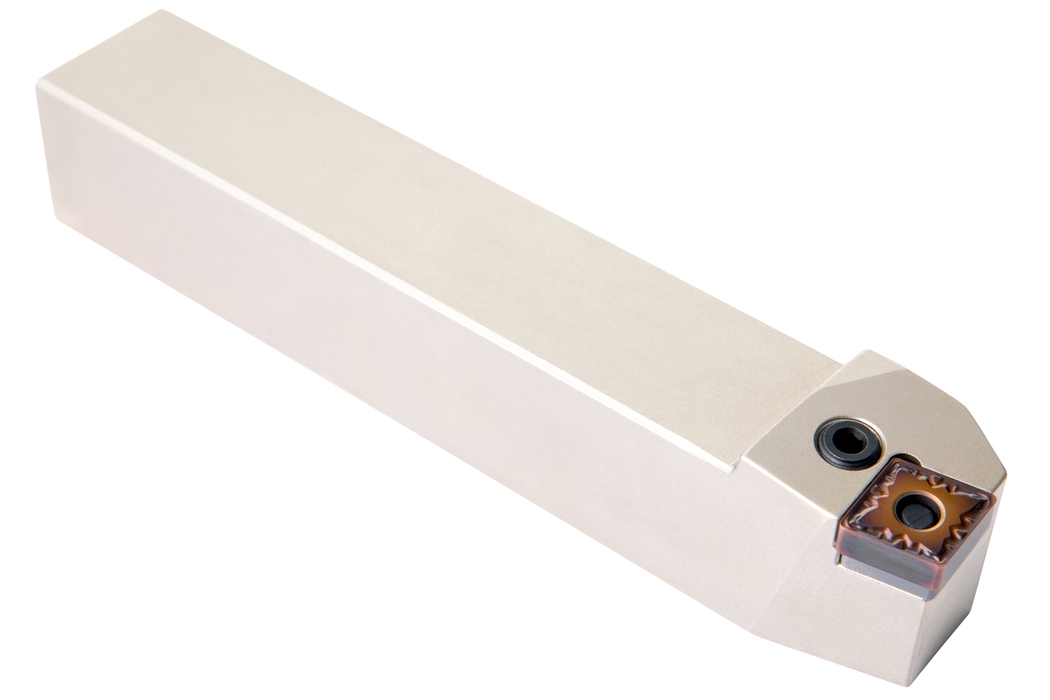

PCBNL 2020 K 12
SKU DOR6757322
Primary Use:
Possible Use:
Lever lock turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation CN.. 1204.. ), left hand 75° side cutting with straight shank, 20mm tool height x 20mm width x 125mm long for taper turning and longitudinal turning without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$156.00
-
Original price
$156.00
Original price
$156.00
$156.00
-
$156.00
Current price
$156.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Height: 0.787
Tool Direction: Right
Insert Designation: ["CN.. 1204.."]
Functional Length: 4.921
EDP: 6757322
EAN: 3603602926784
MFG Part Number: 6757322
