A60V-PDUNR 15

A60V-PDUNR 15

SKU DOR6757363
by Dormer Pramet
Primary Use: Possible Use:

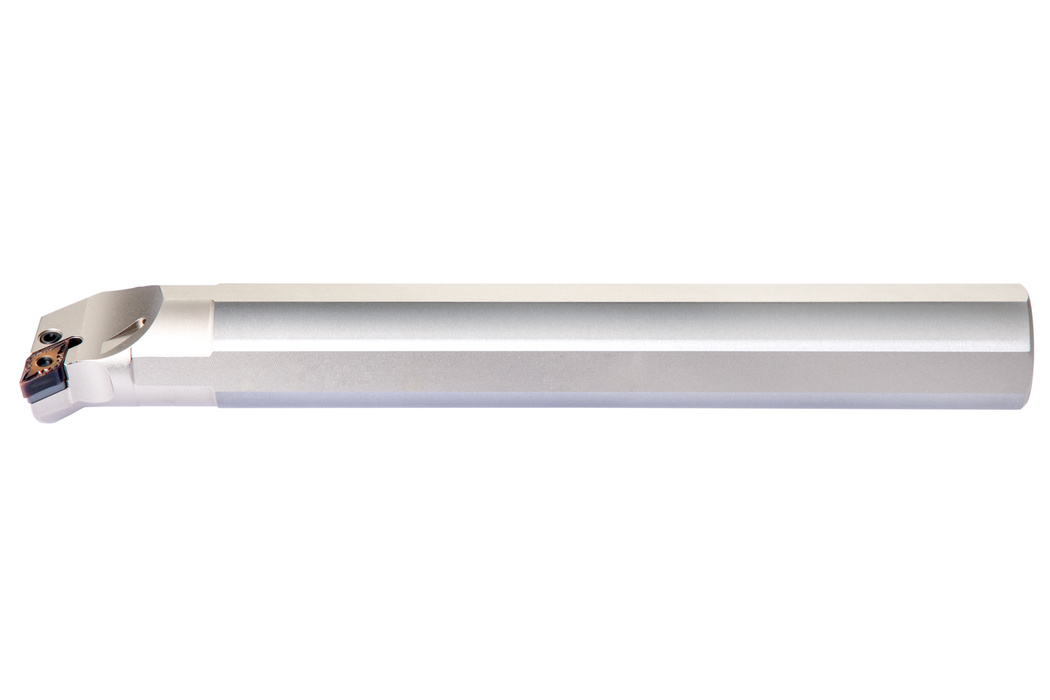

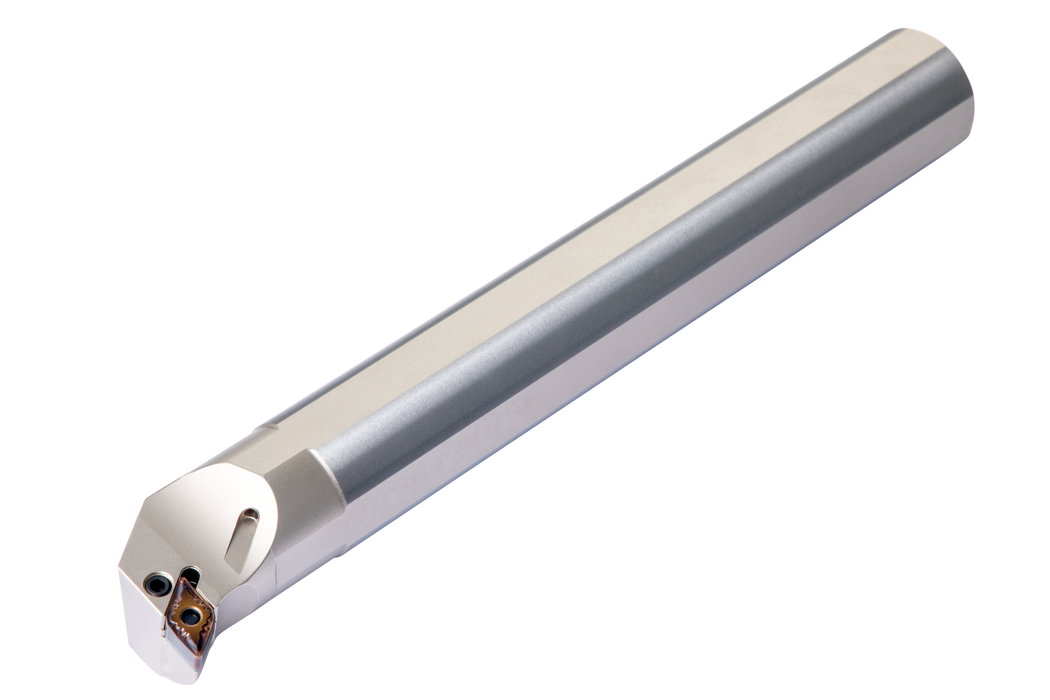

Lever lock boring bar for holding a 55° rhombus negative insert with an inscribed circle diameter of 15.875mm, 6.35mm thick (ISO designation DN.. 1506.. ), right hand 93° end cutting with off-set shank, steel with coolant hole, 60mm diameter x 400mm long for taper boring, single and multi-directional copy boring and longitudinal boring with and without shoulder

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$721.00 - $721.00
$721.00
$721.00 - $721.00
$721.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

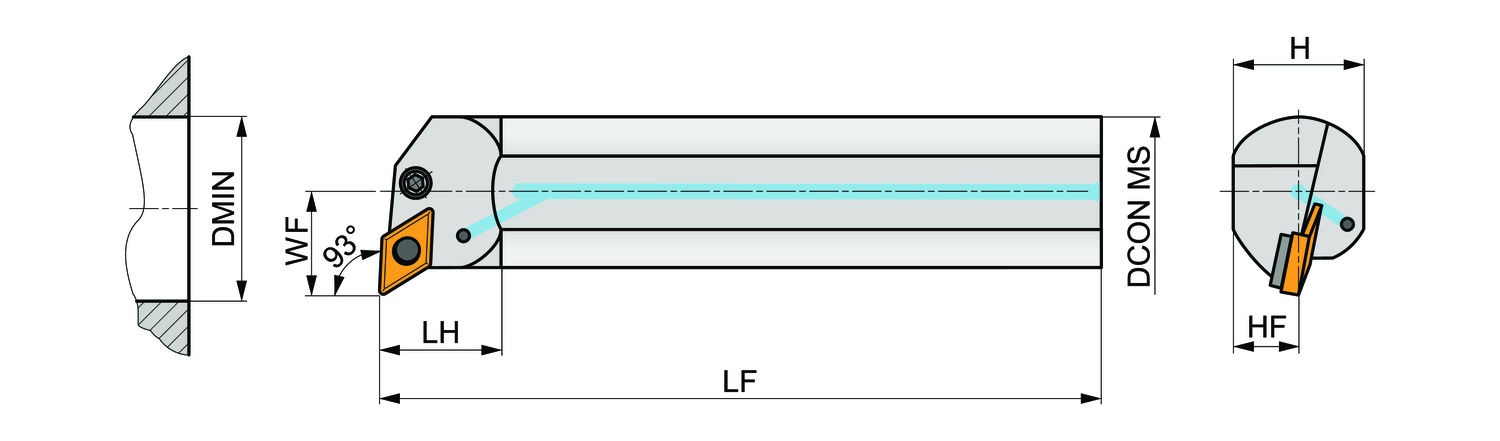

Through Coolant: 1

Connetion Diameter: 2.362

Height: 2.244

Minimum Bore: 3.15

Tool Direction: Right

Insert Designation: ["DN.. 1506.."]

Functional Length: 15.748

EDP: 6757363

EAN: 3603602927194

MFG Part Number: 6757363
