PCBNL 5050 T 25
SKU DOR6757407
Primary Use:
Possible Use:

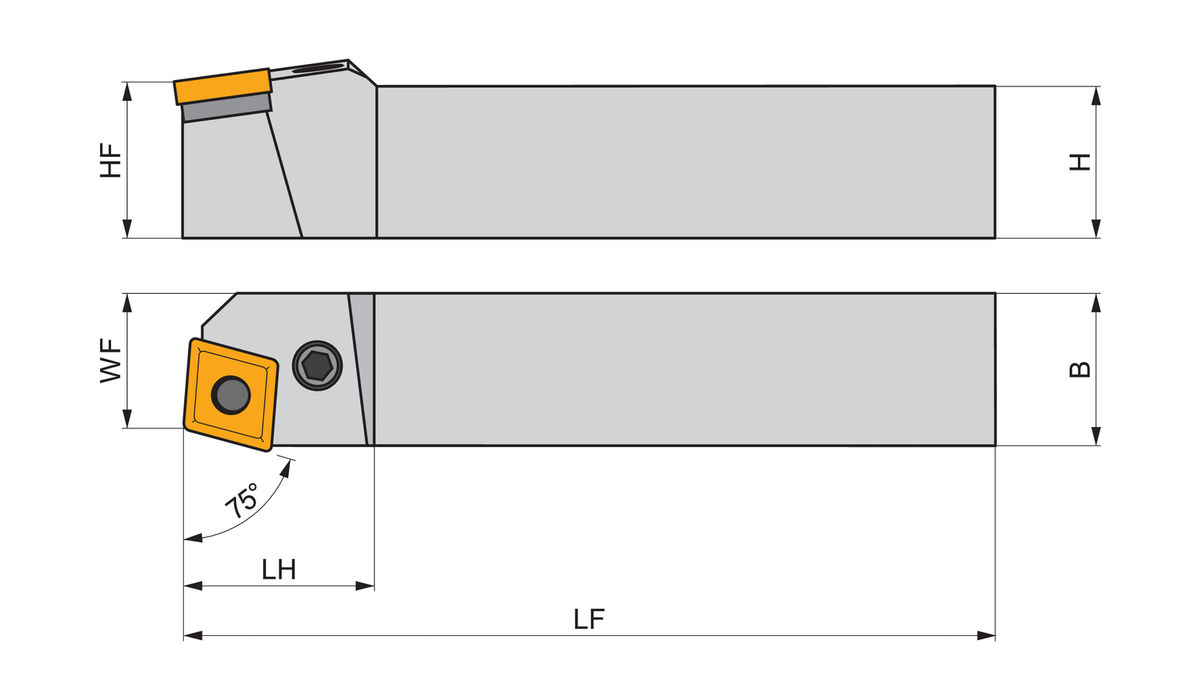

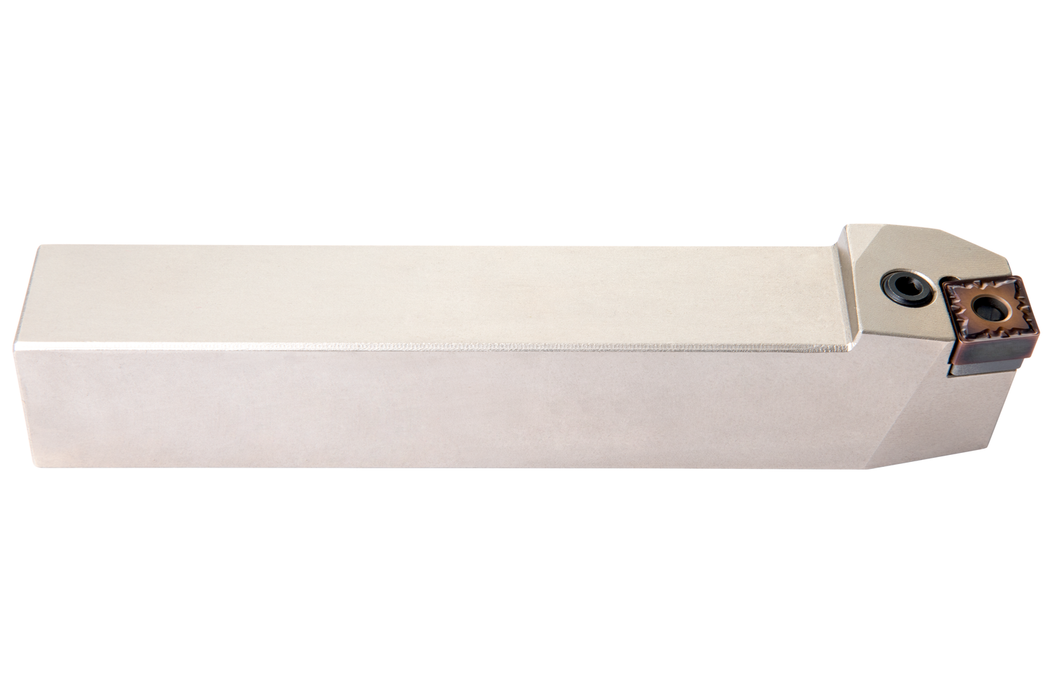

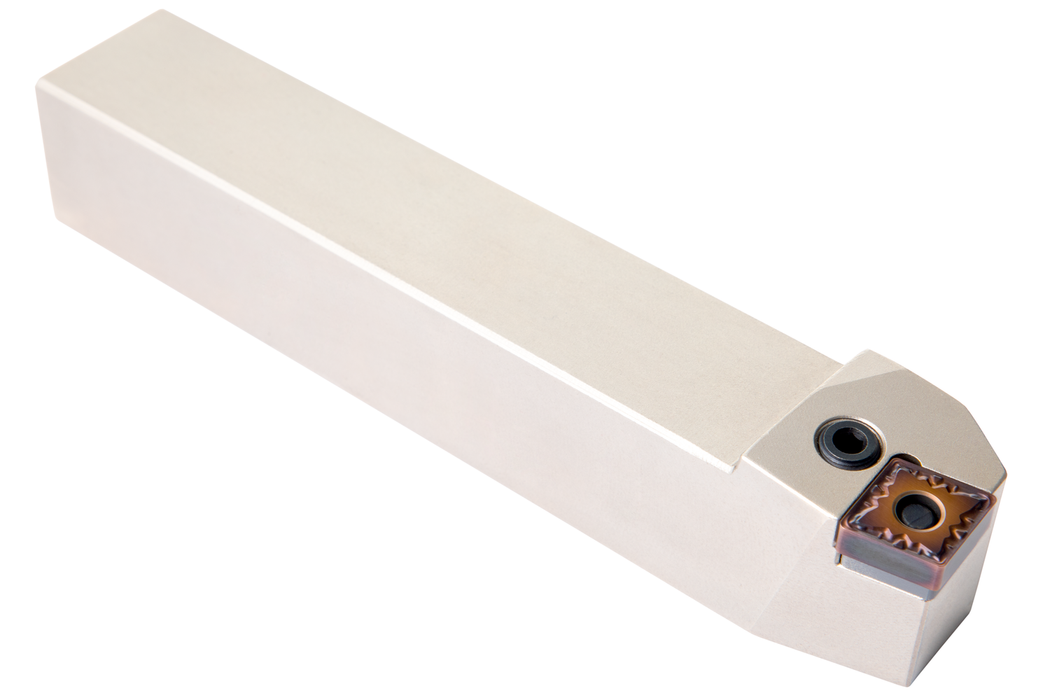

Lever lock turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 25.4mm, 9.52mm thick (ISO designation CN.. 2509.. ), left hand 75° side cutting with straight shank, 50mm tool height x 50mm width x 300mm long for taper turning and longitudinal turning without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$445.00
-
Original price
$445.00
Original price
$445.00
$445.00
-
$445.00
Current price
$445.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Height: 1.969
Tool Direction: Left
Insert Designation: ["CN.. 2509.."]
Functional Length: 11.811
EDP: 6757407
EAN: 3603602927637
MFG Part Number: 6757407
