80J6R151X50-SSAP95-A

80J6R151X50-SSAP95-A

SKU DOR6757751
by Dormer Pramet
Primary Use: Possible Use:

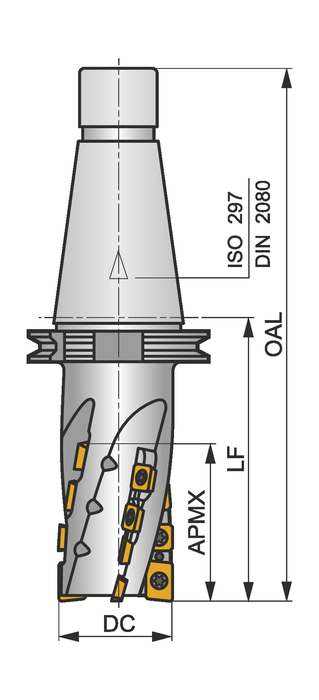

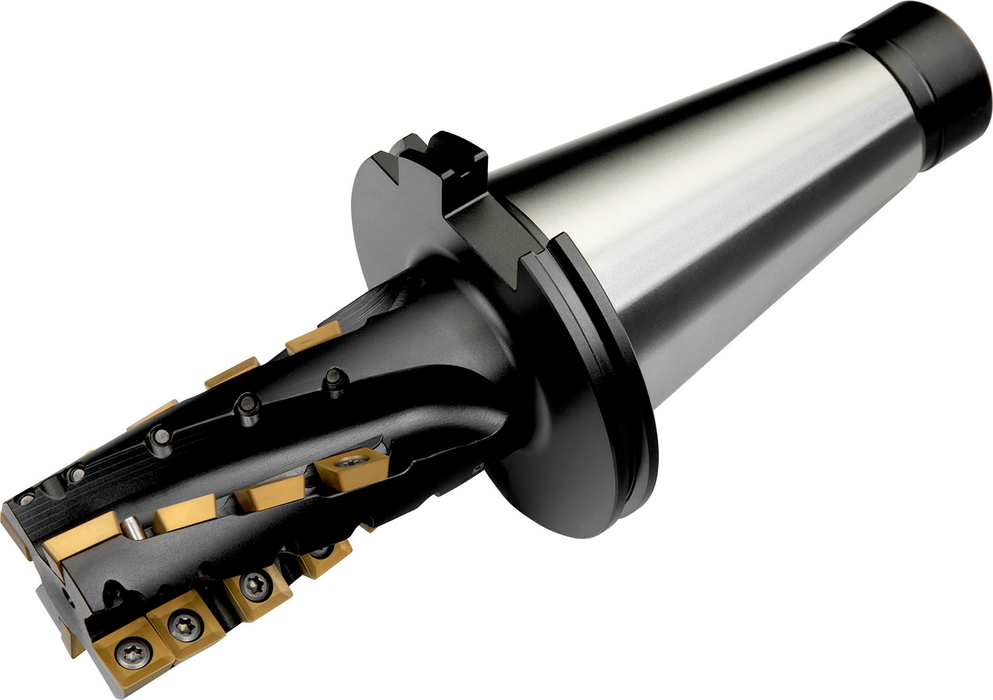

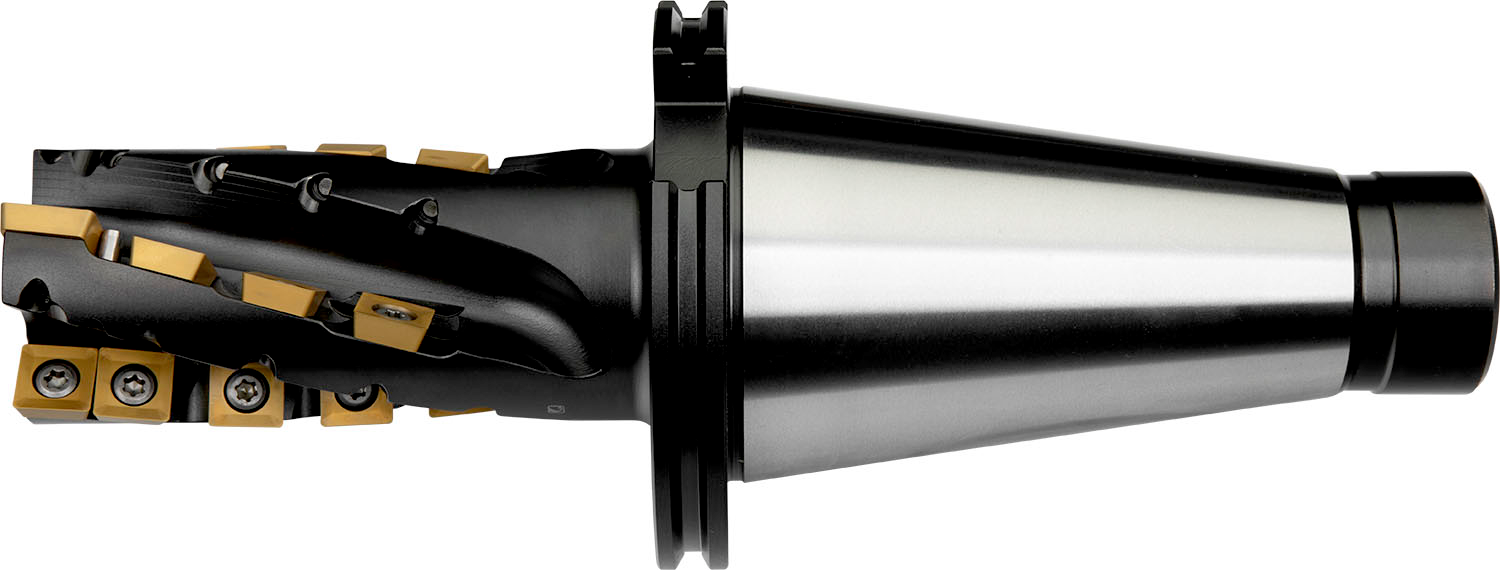

Shoulder mill with extended flute with positve/negative geometry which utilises 3 off APE. 1504.. and 30 SPE. 1204.. single-sided inserts, cutting diameter 80mm with 90° approach angle and BT 50 taper shank according to JIS B 6339, 95mm functional and 275mm overall length for deep shoulder milling and deep slot milling with a maximum depth of cut of 95mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$2,587.00 - $2,587.00
$2,587.00
$2,587.00 - $2,587.00
$2,587.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Cutting Diameter - in (DC): 3.15

Cutting Diameter - mm (DC): 80.0

Overall Length (OAL): 10.827

Tool Direction: Right

Shank: Arbor DIN 2080-1

Cutter Design: J(T)-SSAP

EDP: 6757751

EAN: 3603602931078

MFG Part Number: 6757751
