50J4R128H50-SSAP55+21

50J4R128H50-SSAP55+21

SKU DOR6757756
by Dormer Pramet
Primary Use: Possible Use:

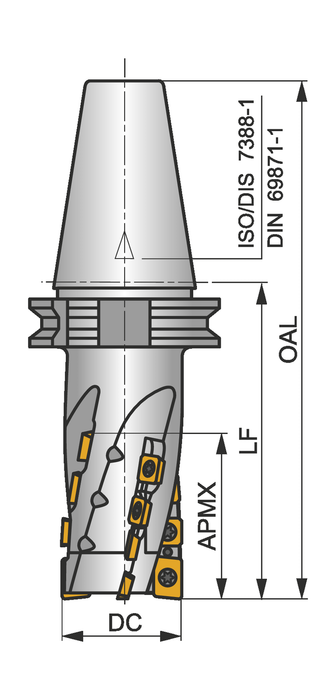

Shoulder mill with extended flute and exchangeable head, with positve/negative geometry which utilises 2 off APE. 1504.. and 16 SPE. 1204.. single-sided inserts, cutting diameter 50mm with 90° approach angle and SK 50 taper shank according to ISO/DIS 7388-1, 76mm functional and 230mm overall length for deep shoulder milling and deep slot milling with a maximum depth of cut of 76mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$2,245.00 - $2,245.00
$2,245.00
$2,245.00 - $2,245.00
$2,245.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Cutting Diameter - in (DC): 1.969

Cutting Diameter - mm (DC): 50.0

Overall Length (OAL): 9.055

Tool Direction: Right

Shank: Arbor DIN 69871-1

Cutter Design: J(T)-SSAP

EDP: 6757756

EAN: 3603602931122

MFG Part Number: 6757756
