63J4R146X50-SSAP95-A

63J4R146X50-SSAP95-A

SKU DOR6757815
by Dormer Pramet
Primary Use: Possible Use:

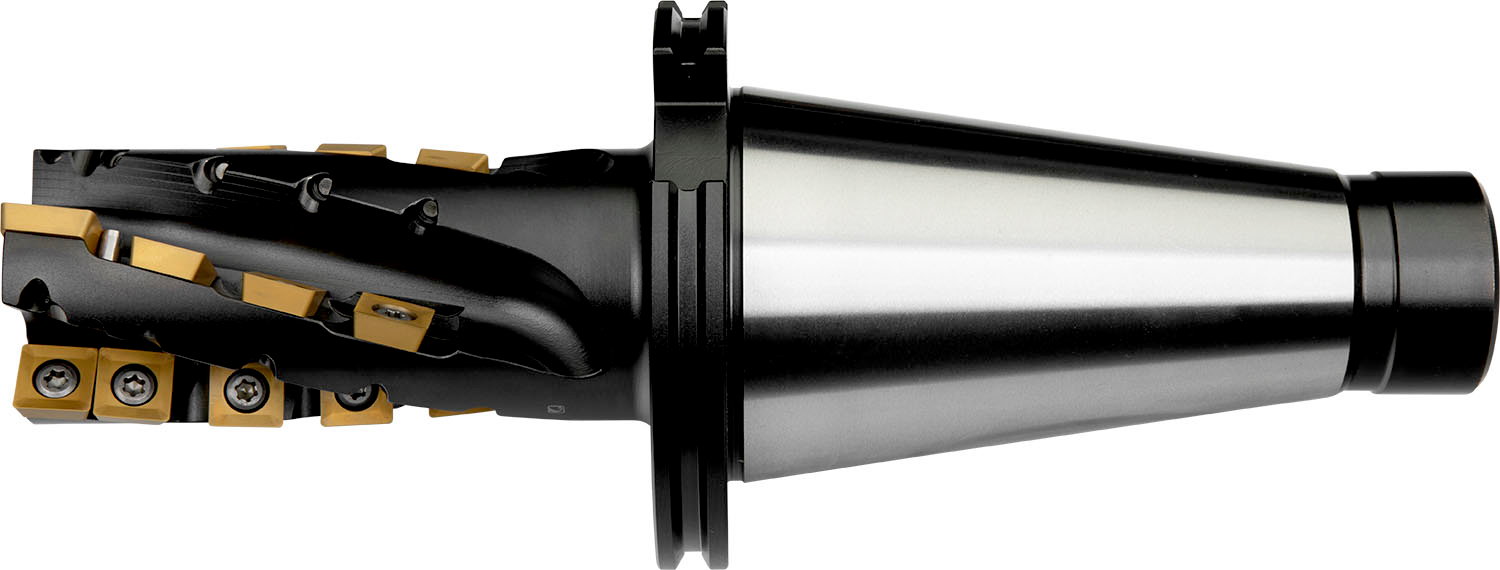

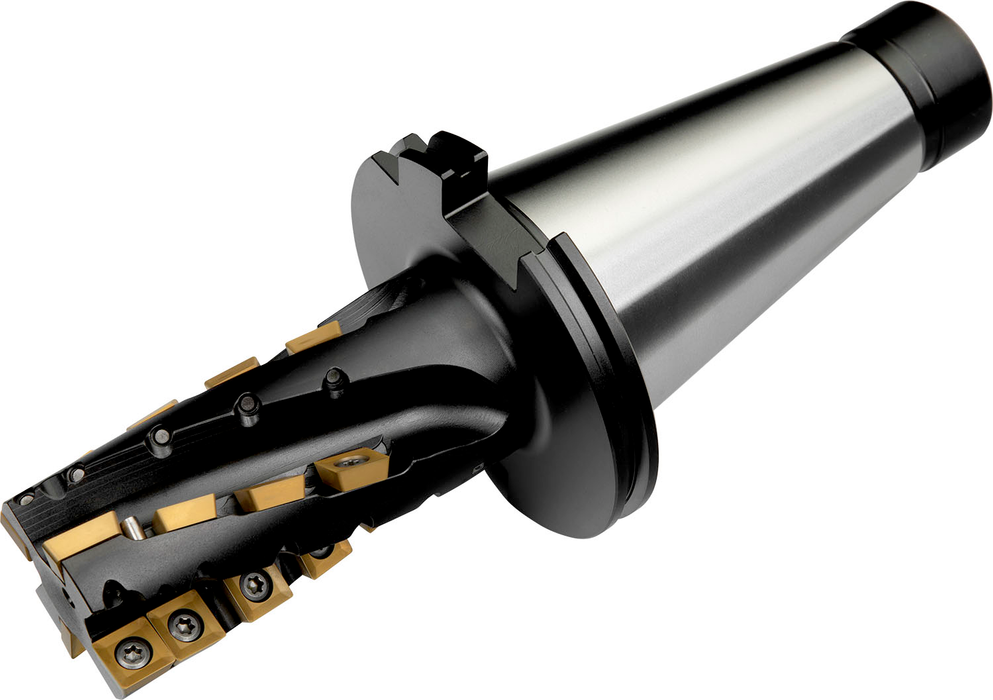

Shoulder mill with extended flute with positve/negative geometry which utilises 2 off APE. 1504.. and 20 SPE. 1204.. single-sided inserts, cutting diameter 63mm with 90° approach angle and BT 50 taper shank according to JIS B 6339, 95mm functional and 273mm overall length for deep shoulder milling and deep slot milling with a maximum depth of cut of 95mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$2,118.00 - $2,118.00
$2,118.00
$2,118.00 - $2,118.00
$2,118.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

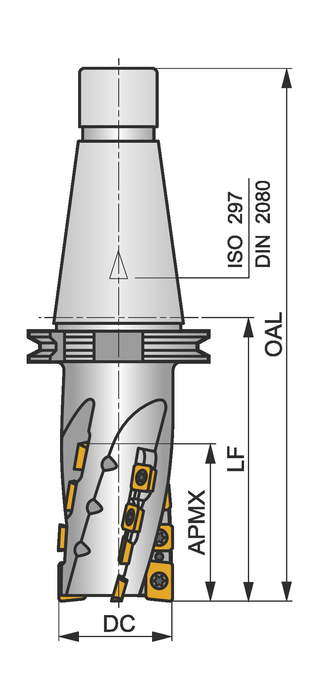

Cutting Diameter - in (DC): 2.48

Cutting Diameter - mm (DC): 63.0

Overall Length (OAL): 10.748

Tool Direction: Right

Shank: Arbor DIN 2080-1

Cutter Design: J(T)-SSAP

EDP: 6757815

EAN: 3603602931719

MFG Part Number: 6757815
