PSSNR 5050 T 2509

PSSNR 5050 T 2509

SKU DOR6757888
by Dormer Pramet
Primary Use: Possible Use:

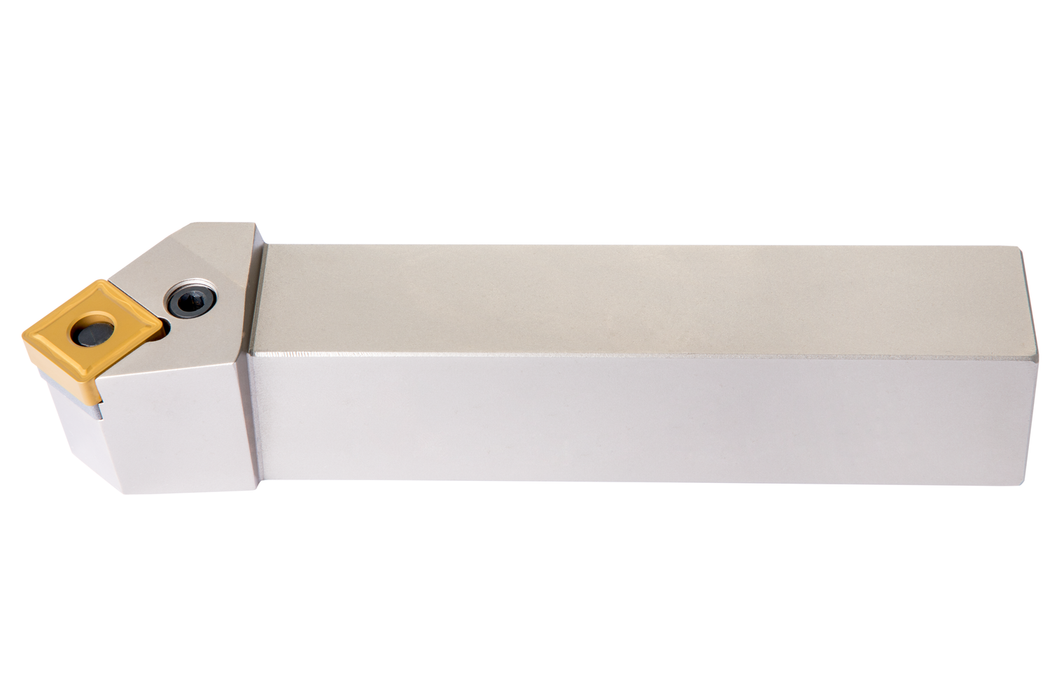

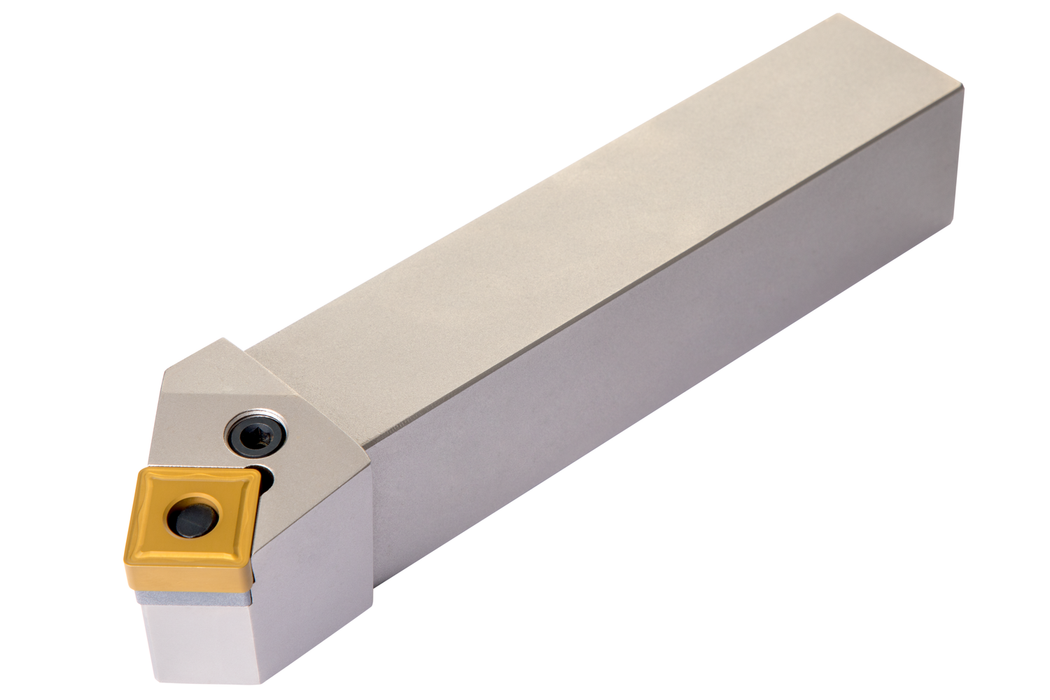

Lever lock turning tool for holding a square negative insert with an inscribed circle diameter of 25.4mm, 9.52mm thick (ISO designation SN.. 2509.. ), right hand 45° side cutting with off-set shank, 50mm tool height x 50mm width x 300mm long for chamfering, taper turning, single and multi-directional copy turning, face turning without shoulder and longitudinal turning without shoulder

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$445.00 - $445.00
$445.00
$445.00 - $445.00
$445.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

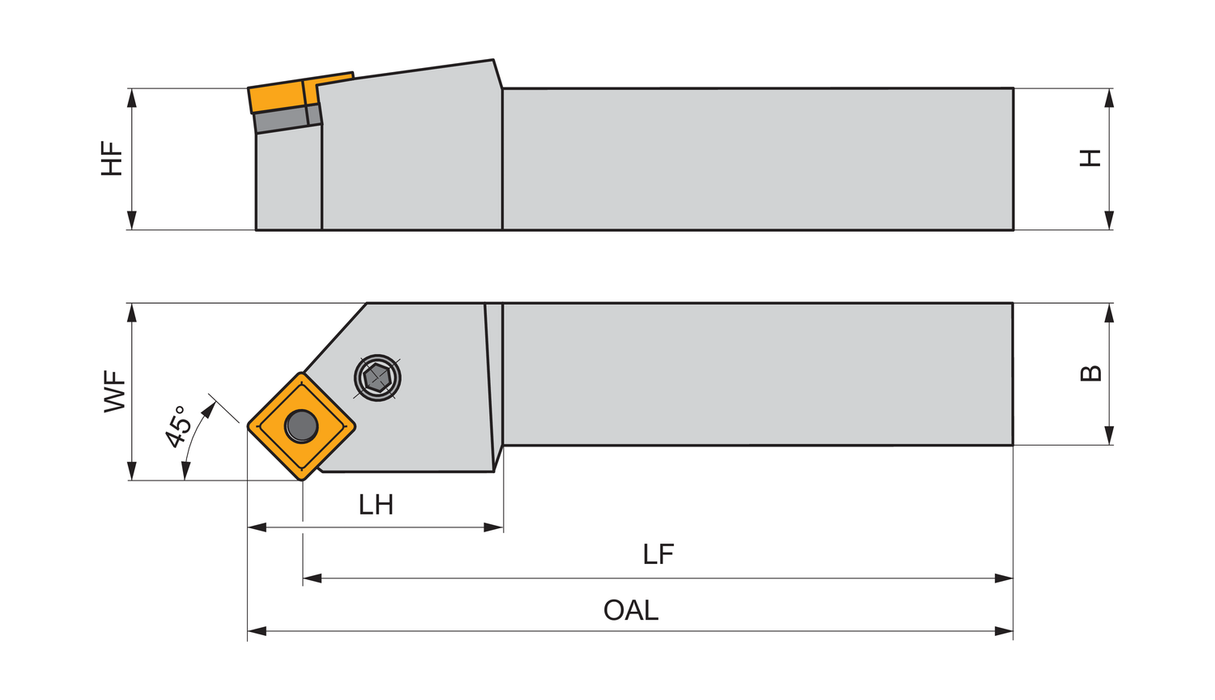

Overall Length (OAL): 12.441

Height: 1.969

Tool Direction: Right

Insert Designation: ["SN.. 2509.."]

Functional Length: 11.811

EDP: 6757888

EAN: 3603602932440

MFG Part Number: 6757888
