DWLNR 3225 P 08
SKU DOR6758093
Primary Use:
Possible Use:

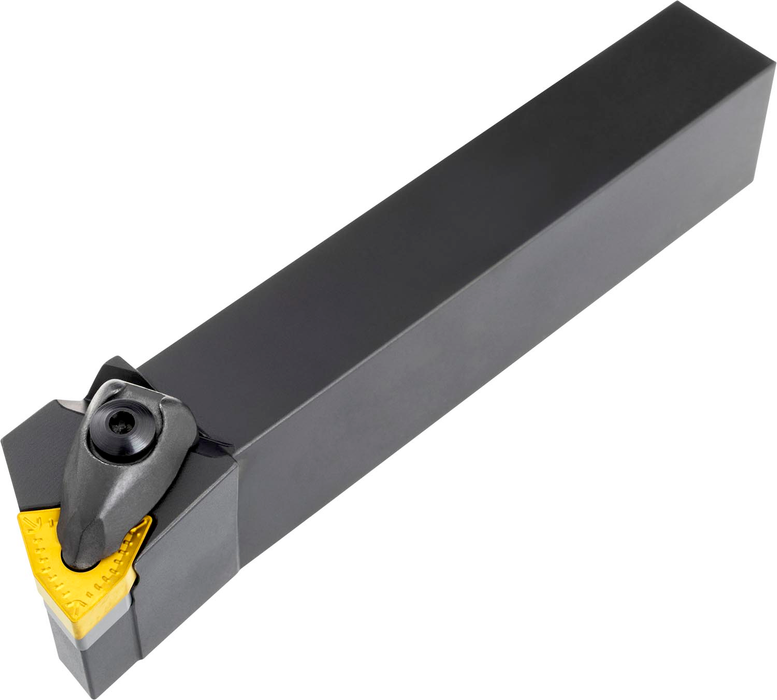

Double clamp turning tool for holding a 80° trigon negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation WN.. 0804.. ), right hand 95° side and end cutting with off-set shank, 32mm tool height x 25mm width x 170mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$180.00
-
Original price
$180.00
Original price
$180.00
$180.00
-
$180.00
Current price
$180.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Height: 1.26
Tool Direction: Right
Insert Designation: ["WN.. 0804.."]
Functional Length: 6.693
EDP: 6758093
EAN: 3603602934390
MFG Part Number: 6758093
