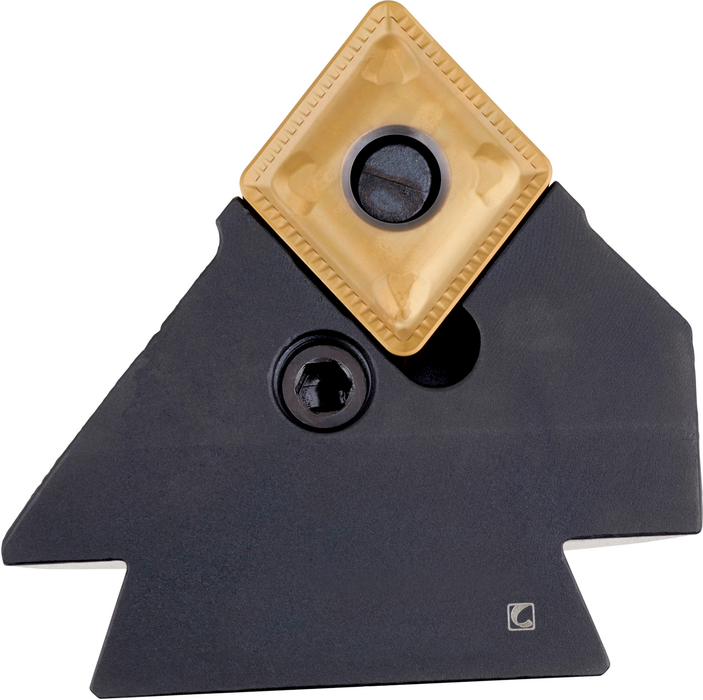

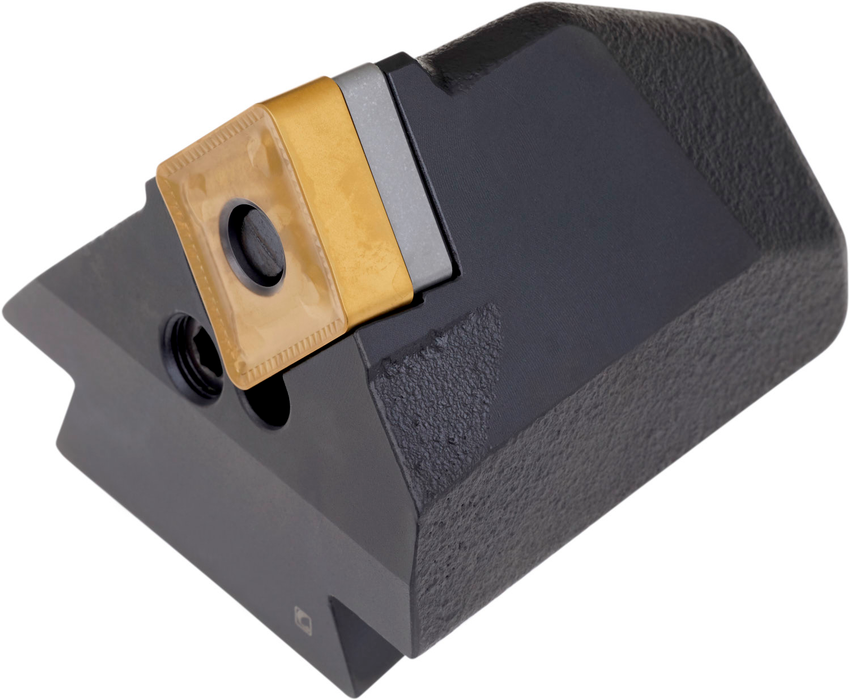

KHP-CLNR 25
SKU DOR6758295
Primary Use:

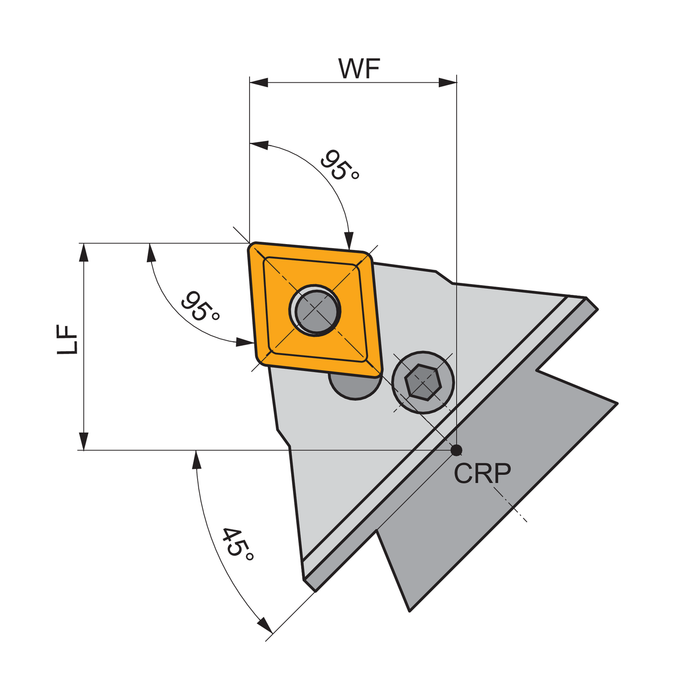

Lever lock modular turning tool cartridge for holding a 80° rhombus negative insert with an inscribed circle diameter of 25.4mm, 9.52mm thick (ISO designation CN.. 2509.. ), assemble with DHKR.. for right hand 95° side and end cutting with off-set shank for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$453.00
-
Original price
$453.00
Original price
$453.00
$453.00
-
$453.00
Current price
$453.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Tool Direction: Left
Functional Length: 1.772
EDP: 6758295
EAN: 3603602936417
MFG Part Number: 6758295
