8N1R027B16-SSO09-C

8N1R027B16-SSO09-C

SKU DOR6758332
by Dormer Pramet
Primary Use: Possible Use:

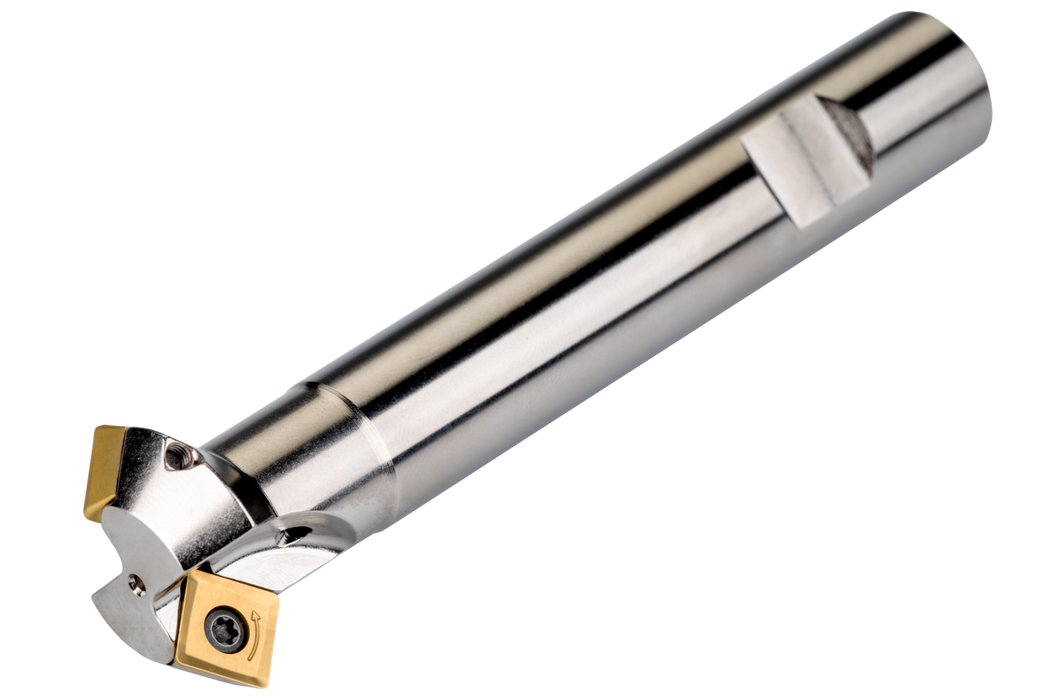

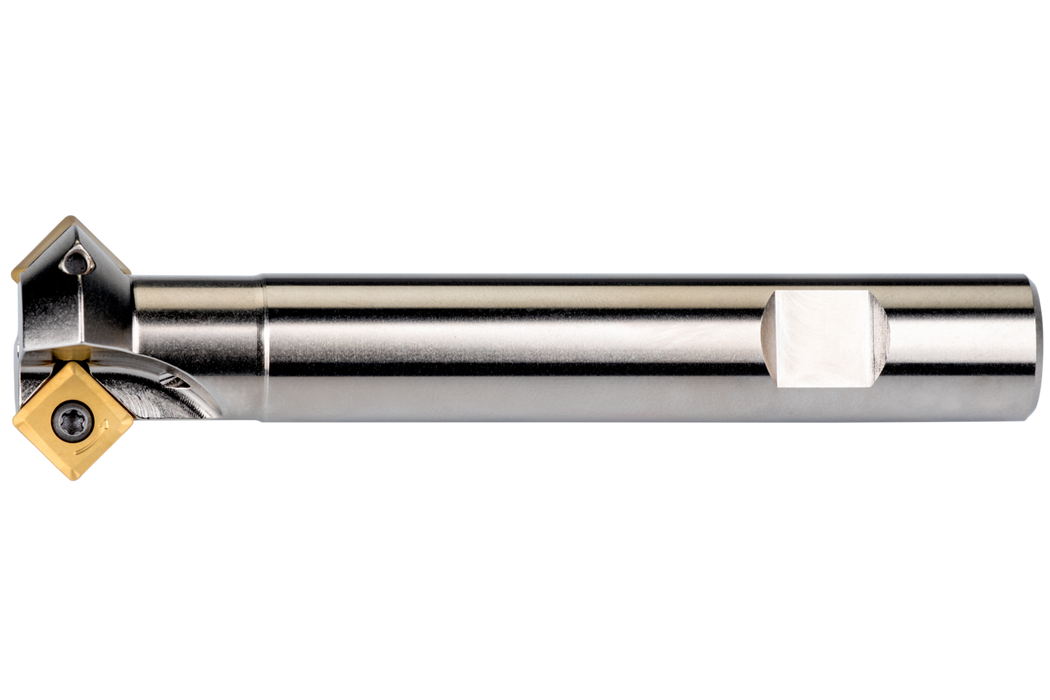

Chamfer mill with double negative geometry which utilises 1 off SOMT 09T3.. single-sided insert, cutting diameter 8 to maximum 20.5mm with 45° approach angle and 16mm Weldon shank according to DIN 1835B, 90mm overall length, through coolant for chamfering with a maximum depth of cut of 4.5mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$326.00 - $326.00
$326.00
$326.00 - $326.00
$326.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

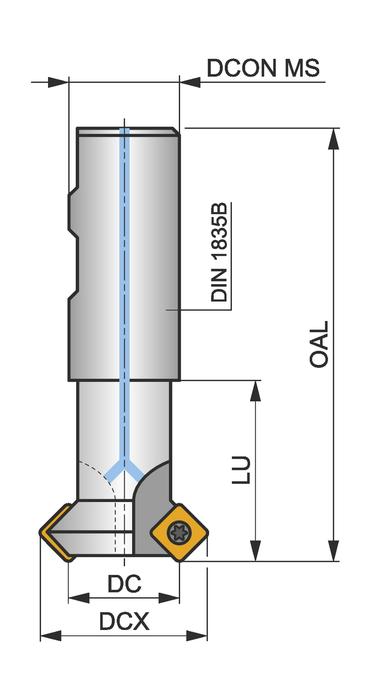

Cutting Diameter - in (DC): 0.315

Cutting Diameter - mm (DC): 8.0

Max Cut Diameter: 0.807

Through Coolant: 1

Overall Length (OAL): 3.543

Connetion Diameter: 0.63

Tool Direction: Right

Shank: Weldon shank DIN 1835B

Cutter Design: N-SSO09

Cutting Edge Count: 1

EDP: 6758332

EAN: 3603602936783

MFG Part Number: 6758332
